English | 5 Bosch Power Tools 1 609 9 2A 1VL | (1 5.6.16) Deliver y Scope Rotary hammer, auxiliary handle and depth stop. Application tools and other a ccessories shown or described are not part of the standard delivery …
4 | English
1 609 92A 1VL | (15.6.16) Bosch Power Tools
Hammer Safety Warnings
Wear ear protectors. Exposure to noise can cause hear-
ing loss.
Use auxiliary handle(s), if supplied with the tool. Loss
of control can cause personal injury.
Hold the tool by the insulated gripping surfaces when
performing operations where the application tool or
the screw could contact hidden wiring or its own power
cord. Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and shock the operator.
Products sold in GB only: Your product is fitted with a
BS 1363/A approved electric plug with internal fuse
(ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place by an
authorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
Products sold in AUS and NZ only: Use a residual current
device (RCD) with a rated residual current of 30 mA or
less.
Additional Safety and Working In-
structions
Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.
Use appropriate detectors to determine if utility lines
are hidden in the work area or call the local utility com-
pany for assistance. Contact with electric lines can lead
to fire and electric shock. Damaging a gas line can lead to
explosion. Penetrating a water line causes property dam-
age.
Firmly tighten the auxiliary handle, hold the machine
firmly with both hands while working and keep proper
footing and balance at all times. The machine is securely
guided with both hands.
Secure the workpiece. A workpiece clamped with clamp-
ing devices or in a vice is held more secure than by hand.
To save energy, only switch the power tool on when using
it.
For drilling without impact in wood, metal, ceramic and
plastic as well as for screwdriving, tools without SDS-plus
are used (e.g., drill bits with cylindrical shank). For these
tools, a keyless chuck or a key type drill chuck are re-
quired.
GBH 2-28 F: Only use quick change chucks with 3 identi-
fication grooves (standard delivery scope) or 2 identifi-
cation grooves (accessory/spare part) – see figure 1,
page 65.
– The quick change chuck is automatically locked. Check
the locking effect by pulling the quick change chuck.
Inserting SDS-plus Drilling Tools: Check the latching by
pulling the tool.
Replace a damaged dust protection cap immediately.
The dust protection cap largely prevents the penetration of
drilling dust into the tool holder during operation. When in-
serting the tool, pay attention that the dust protection cap
is not damaged.
Dust from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health and cause allergic reactions, lead to res-
piratory infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
–As far as possible, use a dust extraction system suitable
for the material.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the
materials to be worked.
Prevent dust accumulation at the workplace. Dust can
easily ignite.
If the application tool should become blocked, switch
the machine off. Loosen the application tool.
Before switching on the power tool, make sure that the
application tool moves freely. When switching on with a
blocked drilling tool, high torque reaction can occur.
When working with the machine, always hold it firmly
with both hands and provide for a secure stance. The
power tool is guided more secure with both hands.
Always wait until the machine has come to a complete
stop before placing it down. The tool insert can jam and
lead to loss of control over the power tool.
The rapid shut-off feature (KickBack Control) provides
better control over the power tool to increase user pro-
tection compared to power tools that do not have Kick-
Back Control. The power tool will switch off if it sud-
denly and unforeseeably rotates around the drilling
axis. To restart the machine
, release the On/Off switch
and then actuate again.
Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.
Symbol Meaning
GBH 2-28
GBH 2-28 F: Rotary Hammer
Grey-marked area: Handle
(insulated gripping surface)
OBJ_BUCH-1233-005.book Page 4 Wednesday, June 15, 2016 3:58 PM
English | 5
Bosch Power Tools 1 609 92A 1VL | (15.6.16)
Delivery Scope
Rotary hammer, auxiliary handle and depth stop.
Application tools and other accessories shown or described
are not part of the standard delivery scope.
A complete overview of accessories can be found in our ac-
cessories program.
Article number
Read all safety warnings and all instruc-
tions
Before any work on the machine itself,
pull the mains plug from the socket out-
let
Wear protective gloves
Always wear ear protection.
Wear safety glasses/goggles
KickBack Control
Keyless drill chuck
Movement direction
Reaction direction
Prohibited action
Permitted action
Next step of action
Right/left rotation
Drilling without impact
Hammer Drilling
Chiselling
Screwdriving
Symbol Meaning
Vario-Lock
Switching On
Switching Off
On/Off switch lock-on
Releasing the On/Off switch
Low speed/impact rate
High speed/impact rate
Extraction
Dust cup
Tool holder
P
1
Rated power input
E Impact energy per stroke according to
EPTA-Procedure 05/2009
n
0
No-load speed
Ø Drilling diameter, max.
Concrete
Steel
Wood
Brickwork
Core bit
Weight according to
EPTA-Procedure 01:2014
Protection class
Symbol Meaning
OBJ_BUCH-1233-005.book Page 5 Wednesday, June 15, 2016 3:58 PM
6 | English
1 609 92A 1VL | (15.6.16) Bosch Power Tools
Intended Use
The machine is intended for hammer drilling in concrete,
bricks and masonry, as well as for light chiselling work. It is al-
so suitable for drilling without impact in wood, metal, ceram-
ics and plastic, as well as for screwdriving.
Technical Data
The technical data of the machine are listed in the table on
page 64.
The values given are valid for a nominal voltage [U] of 230 V.
For different voltages and models for specific countries,
these values can vary.

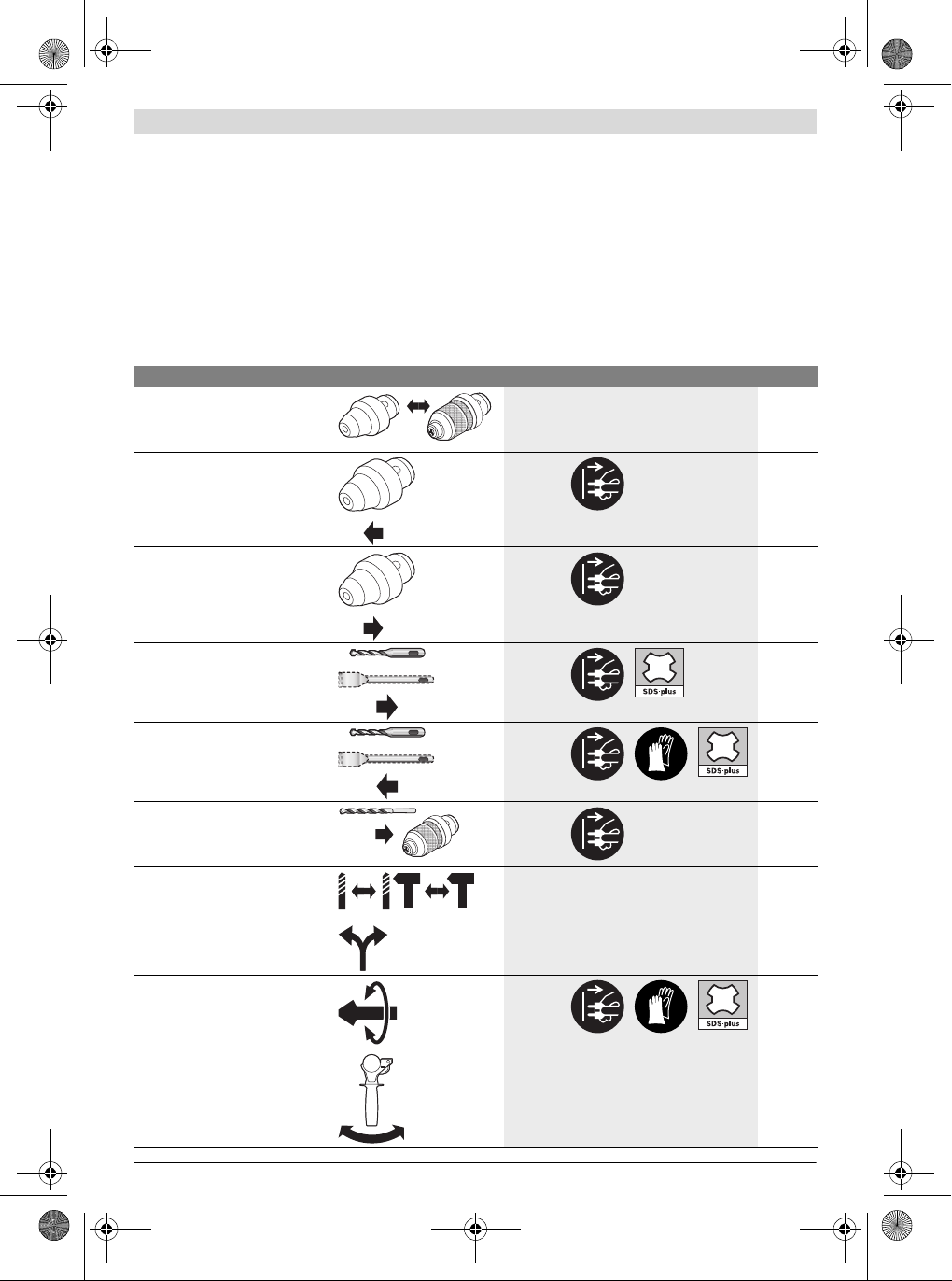

Mounting and Operation
The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action
objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the
safety instructions.
Action Figure Please observe Page
Selecting a drill chuck
(GBH 2-28 F)
1 65
Removing the Quick Change Chuck
(GBH 2-28 F)
2 66
Inserting the Quick Change Chuck
(GBH 2-28 F)
3 66
Inserting SDS-plus Drilling Tools
4 67
Removing SDS-plus Drilling Tools
5 67
Inserting round shank applications
tools (GBH 2-28 F)
6 68
Selecting the operating mode and
rotation direction
7 68
Changing the chisel position
(Vario-Lock)
8 69
Changing the position of the
auxiliary handle
9 70
