- - REF.NO NOTE PA RT NO D E S C R I P T I O N Qty 1 400-82699 GRIP_UN IT 1 2 400-69647 GRIP (1) 3 400-77542 LATCH_SPR ING (1) 4 400-68237 LATCH_ PLATE (1) 5 400-72388 SW PA NEL (1) 6 400-74123 FFC (1) 7 400-95428 SIN…
- -

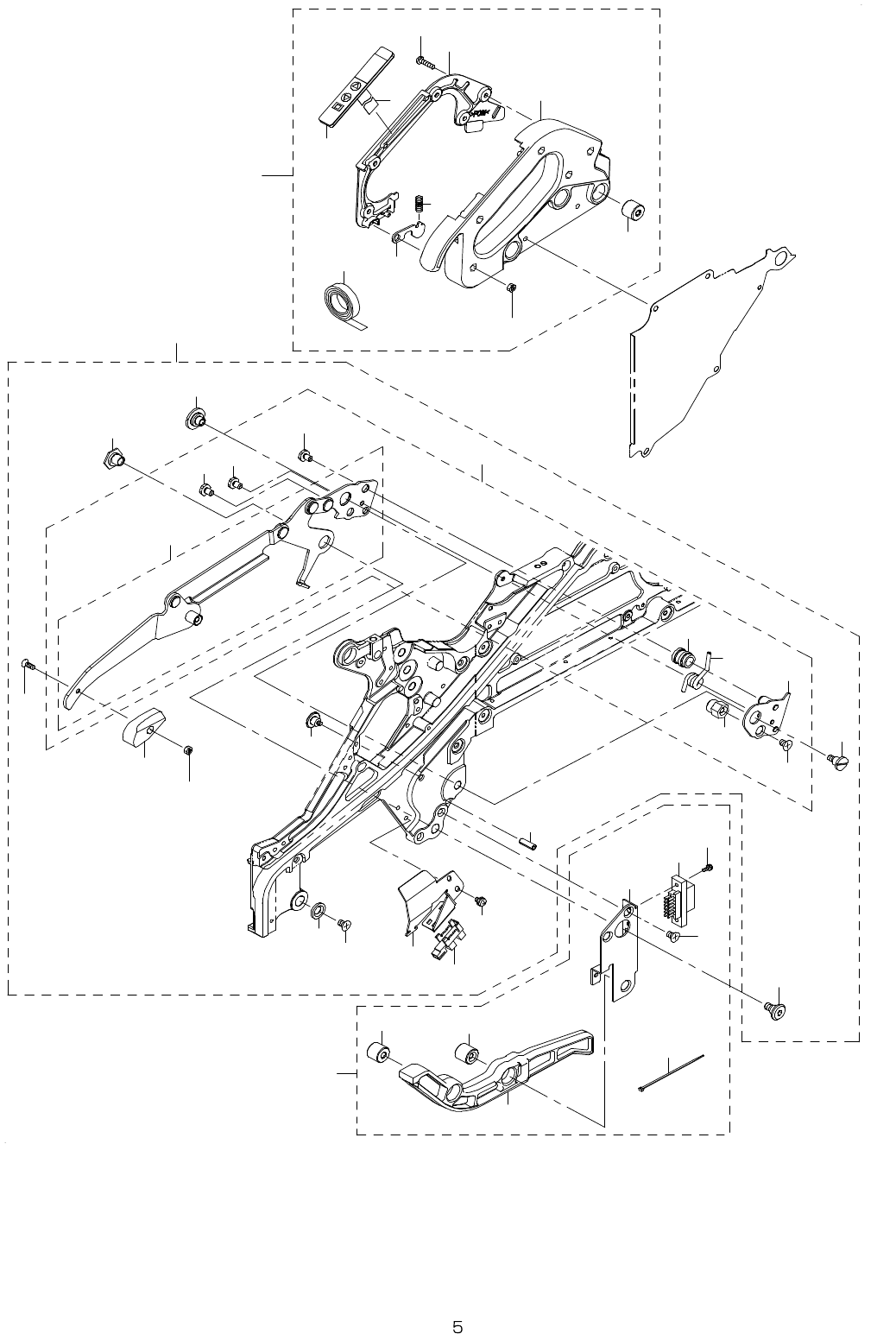

3. EF02HS/EF08HS (3)
2
3
4
6
8
1 0
5
9
1 1
7
1 4
1 5
1 7
1 8
2 0
2 1
2 2
2 3
1 9
2 4
2 8
2 7
2 5
2 9
3 0
3 1
3 2
3 3
3 5
3 4
3 6
3 9
4 0
4 2
4 4
4 3
4 5
1 6
1 3
1
3 7
2 6
3 8
1 2
4 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-82699 GRIP_UNIT 1
2 400-69647 GRIP (1)
3 400-77542 LATCH_SPRING (1)
4 400-68237 LATCH_PLATE (1)
5 400-72388 SW PANEL (1)
6 400-74123 FFC (1)
7 400-95428 SINGLE SIDE ADHESION TAPE50 (0.085)
8 400-69649 PANEL_COVER (1)
9 NM-6030002-SC NUT M3X0.5 TYPE2 (5)
10 SM-4031201-SC SCREW M3 X 12 (5)
11 400-68223 COVER_STUD_M (3)
12 400-82700 CLAMP_UNIT 1
13 400-82701 CLAMP_LEVER_ASSY (1)
14 400-69663 LOCK_BUSHING (1)
15 400-77500 LOCK_STOPPER_BOLT (1)
16 400-69662 LOCK_SPRING (1)
17 400-77500 LOCK_STOPPER_BOLT (1)
18 400-69659 LOCK_SP_STOPPER (1)
19 400-77500 LOCK_STOPPER_BOLT (1)
20 SM-1040601-SC SCREW M4X0.7 L=6 (1)
21 400-84401 LOCK_PLATE_R_ASSY (1)
22 400-84402 LOCK_RELEASE_LEVER_ASSY (1)
23 400-68203 CLAMP_SH_F (1)
24 400-77492 CLAMP_SH_M (1)
25 400-77497 ARM_LINK_PIVOT_SH_F (1)
26 400-77496 ARM_LINK_PIVOT_SH_M (1)
27 400-68667 LOCK_LEVER_FLANGE (1)
28 SM-1040601-SC SCREW M4X0.7 L=6 (1)
29 400-68213 LEVER_CAP (1)
30 SM-1030801-SC SCREW M3 L=8 (1)
31 NM-6030002-SC NUT M3X0.5 TYPE2 (1)
32 400-77499 ARM_LINK_GUIDE_SH (1)
33 PS-0400122-KP SPRING PIN (1)
34 400-77498 CLAMP_SENSOR_BRKT (1)
35 HD-0027700-00 SENSOR (1)
36 SL-4030591-SC SCREW M3 L=5 (2)
37 400-82702 RIAR_RAIL_UNIT 1
38 400-77517 MAIN_CONNECTOR_BRKT (1)
39 SM-1040601-SC SCREW M4X0.7 L=6 (2)
40 400-68993 INPUT WIRE ASM (1)
41 SL-4020691-SC SCREW M2 L=6 (2)
42 EA-9500B00-00 CLIP CV-70S (4)
43 400-68195 BOTTOM_GUIDE_BLOCK (1)
44 400-68251 COVER_STUD_S (1)
45 400-68223 COVER_STUD_M (1)
- -

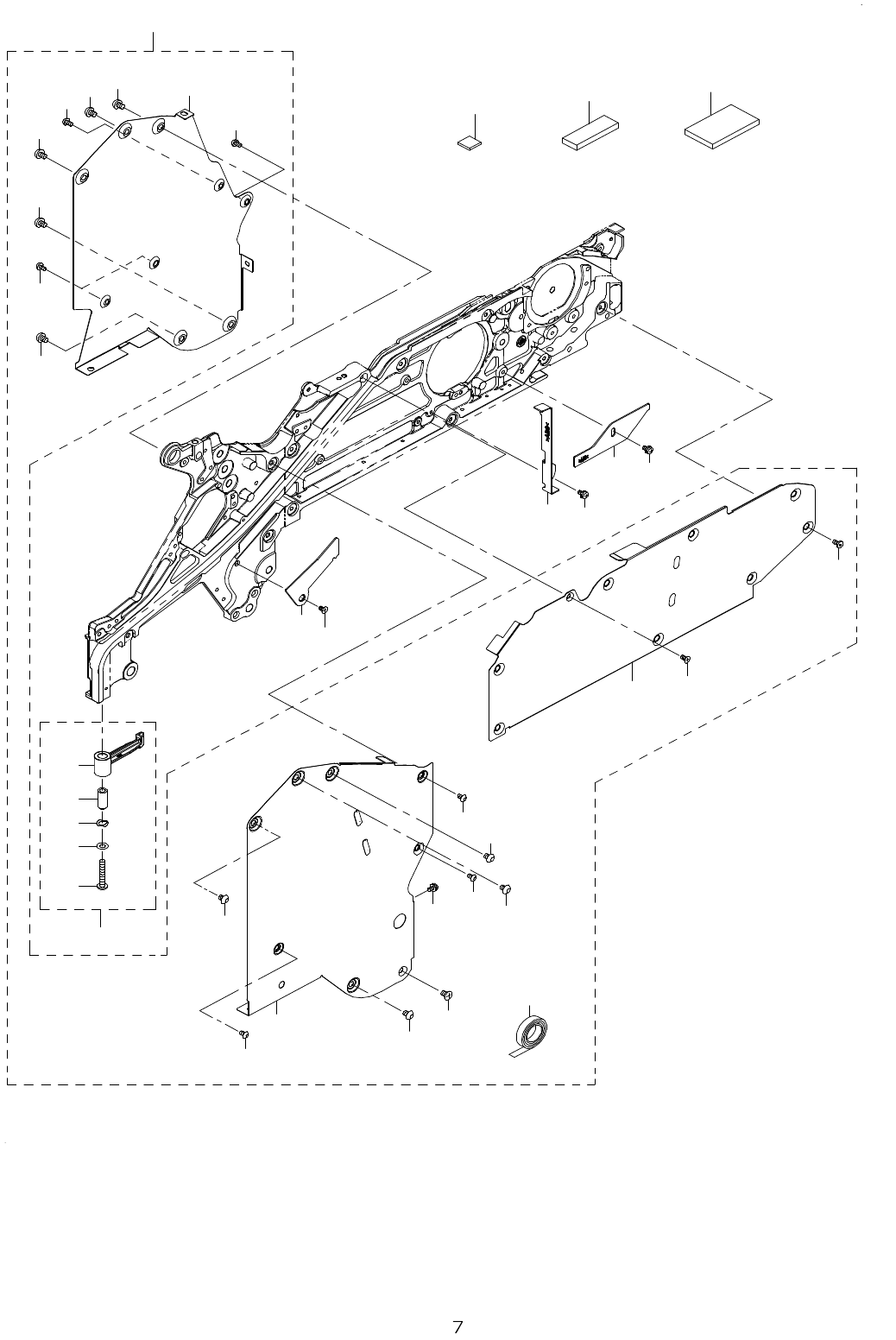

4. EF02HS/EF08HS (4)
3
4
5
6
6
6
7
7
7
7
8
9
9
9
1 0
1 0
1 0
1 0
1 1
1 2
1
1 9
1 5
1 6
1 7
2 8
2 7
2 0
2 1
2 3
2 2
2 4
2 5
2 6
2
1 4
7
1 8
1 3
