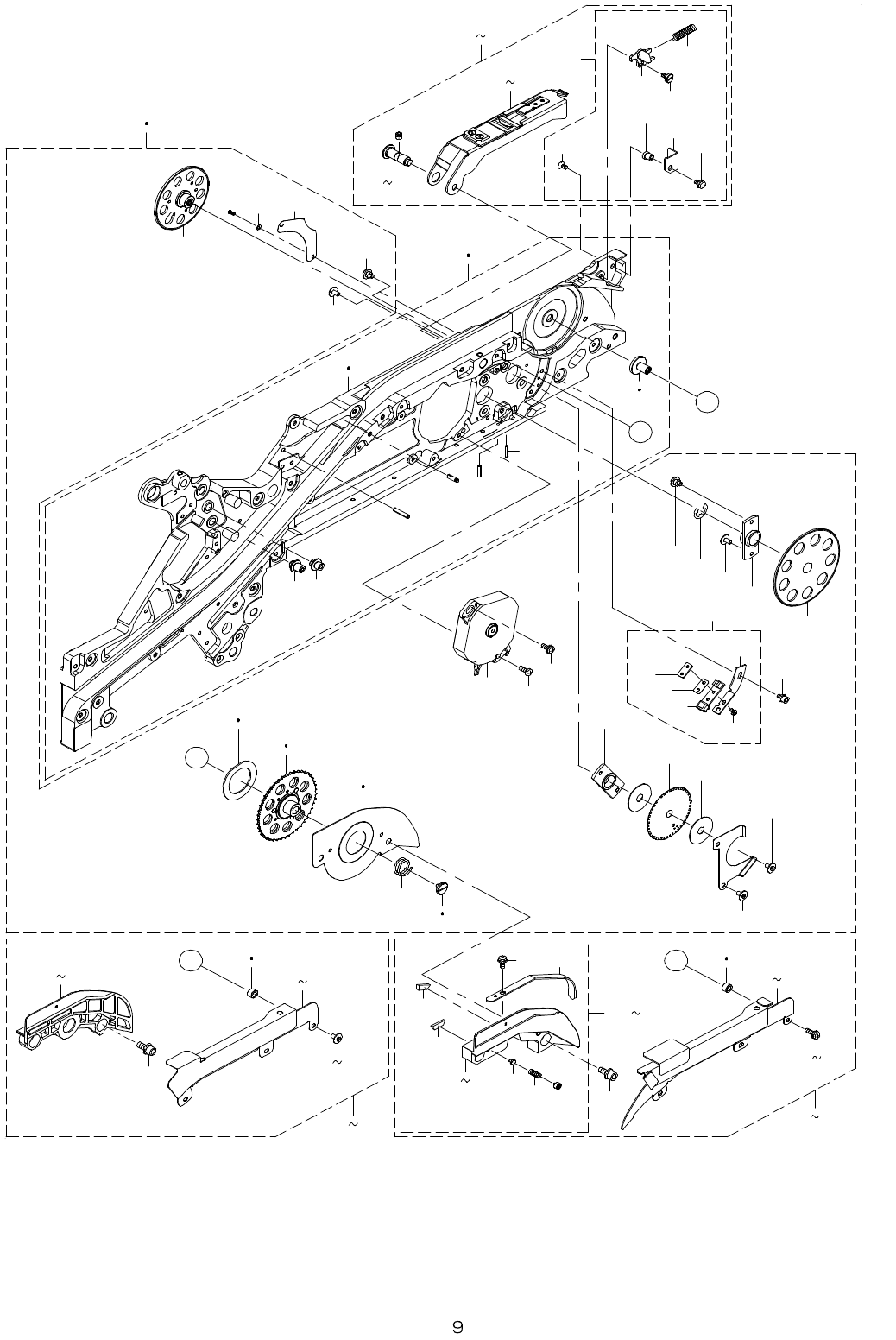

5. EF12FS/EF16FS/EF24FS (1)
3 4
1 2
5 6
7
7
8
9
1 0
1 1
2 4 2 6
2 1
1 6
2 2
1 9
2 0
2 7 2 9
1 2 1 4
1 8
1 7
1 5
6 2 6 3
3 2
3 3
3 5
3 6
3 7
3 4
3 9
3 8
4 0
4 2
4 3
4 3
4 4
4 7
4 5
4 5
4 6
4 8
4 9
5 0
5 3
5 7
5 1
5 4
5 5
5 2
4 1
5 6
6 0 6 1
6 4 6 5
8 2
7 3
7 4
7 5
7 6
A
A
8 3 8 5
8 6 8 8
3 0 3 1
B
B
7 7 7 9
7 0 7 2
5 8 5 9
8 9 9 0
6 7 6 9
8 1
8 0
7 6
2 3
9 1 9 3
1 0 4 1 0 5
1 0 0 1 0 2
9 7 9 9
A
1 0 3
6 6
9 4 9 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#04
400-85429 EF12_MAIN_FRAME_UNIT 1
2
#05
401-36025 EF12_MAIN_FRAME_UNIT_CD 1
3
#04
400-85340 MAIN_FRAME_12 (1)
4
#05
401-34586 MAIN_FRAME_12_ADC (1)
5
#04
400-85328 SPROCKET_SH_12 (1)
6
#05
401-34572 SPROCKET_SH_12_CD (1)
7 PS-0200102-KH SPRING PIN 2.0 X 10 (2)
8 400-68240 PULL_GEAR_SH (1)
9 400-68241 PULL_INTERMEDIATE_SH (1)
10 PS-0300142-KH SPRING PIN 0.3 X 14 (1)
11 E6347-705-000 FASTENER PIN BX3 (1)
12
#01
400-85437 EF12_UPPER_CO VER_UNIT 1
13
#02
400-85443 EF16_UPPER_CO VER_UNIT 1
14
#03
400-85449 EF24_UPPER_CO VER_UNIT 1
15 400-90699 UPPER_COVER_HOOK_UNIT_12 ( 1)
16 SL-4030691-SC SCREW M3 L=6 (1)
17 SM-1030501-SC SCREW M3 L=5 (1)
18 400-68185 HOOK_STOPP ER_COLLAR (1)
19 400-90700 UPPER_COVER_HOOK_12_ASSY (1)
20 400-77527 HOOK_PIVOT_SH (1)
21 400-68256 HOOK_SPRING (1)
22 400-68184 HOOK_SP_COVER (1)
23 SM-8040402-TP SCREW M4X0.7 L=4 ( 1)
24
#01
400-85347 UPPER_COVER_SH_12 (1)
25
#02
400-85351 UPPER_COVER_SH_16 (1)
26
#03
400-85355 UPPER_COVER_SH_24 (1)
27
#01
400-90697 UPPER_COVER_12_ASM (1)
28
#02
400-90701 UPPER_COVER_16_ASM (1)
29
#03
400-90703 UPPER_COVER_24_ASM (1)
30
#04
400-85430 EF12_FEED_UNIT 1
31
#05
401-36026 EF12_FEED_UNIT_CD 1
32 400-85421 FEED MOTOR ASM 12 (1)
33 SL-4030881-SC SCREW M3X8 (1)
34 400-85453 FEED_MAIN_GEAR_ASSY (1)
35 SM-4030801-SC SCREW M3 X 8 (1)
36 400-85320 FEED_2ND_GEAR_BRKT_12 (1)
37 RE-0600000-K0 E-RING 6 (1)
38 400-85323 BRKT_SCREW_12 (1)
39 E8226-706-000 SCREW (1)
40 400-85324 FEED_3RD_GEAR_BRKT_12 (1)
41 400-85454 FEED_3RD_GEAR_ASSY (1)
42 400-85323 BRKT_SCREW_12 (1)
43 400-85327 PP_SENSOR_WASHER_12 (2)
44 400-85341 PP_SLIT_PLATE_12 (1)
45 E8226-706-000 SCREW (3)
46 400-85337 SLIT_PLATE_COVER_12 ( 1)
47 E8226-706-000 SCREW (1)
48 400-85336 COVER_PLATE_ 12 (1)
49 WP-0220300-SC WASHER (2)
50 400-85419 SCREW M2X4 (2)
51 SL-6030592-TN SCREW M3 L=5 (2)
52 400-85455 FEED_ONE_SENSOR_ASSY (1)
53 400-85339 FEED_ONE_SENSOR_BR_12 (1)
54 400-74097 PP SENS B PCB ASM (1)
55 400-77513 PP_SENSOR_COVER (1)
56 400-77512 PP_SENSOR_PLATE_NUT (1)
57 SL-4020581-SC WASHER SCREW (2)
58
#04
400-85329 SPROCKET_LINER_WASHER_12 (1)
59
#05
401-34574 SPROCKET_LINER_WASHER_12_CD (1)
60
#04
400-85456 SPROCKET_WHEEL_ASSY (1)
61
#05
401-36028 SPROCKET_WHEEL_ASSY_CD (1)
62
#04
400-85334 SPROCKET_SH_SCREW_12 (1)
63
#05
E1524-706-C00 STEP SCREW (1)
64
#04
400-85335 SPROCKET_SHIELD_PLATE_12 (1)
65
#05
401-34568 SPROCKET_SHIELD_PLATE_12_CD (1)
66
#05
401-34567 SPROCKET_SPRING_12_34 (1)
67
#06
400-85438 EF12_FEED_GUIDE_UNIT 1
68
#08
400-85444 EF16_FEED_GUIDE_UNIT 1
69
#10
400-85450 EF24_FEED_GUIDE_UNIT 1
70
#06
400-85459 FRONT_BLOCK_12_ASSY (1)
71
#08
400-85460 FRONT_BLOCK_16_ASSY (1)
72
#10
400-85461 FRONT_BLOCK_24_ASSY (1)
73 401-01330 SPROCKET_PUSHER_12_OL (2)
74 400-85389 SPROCKET_SPRING_12 (2)
75 400-85390 SPRING_GUIDE_SCREW_12 (2)
76 400-85395 FRONT_BL_SPONGE_12 (2)
77
#01
400-85396 FRONT_BLOCK_12 (1)
78
#02
400-85398 FRONT_BLOCK_16 (1)
79
#03
400-85405 FRONT_BLOCK_24 (1)
80 400-96862 UNDER_G UIDE_ BR (1)
81 SL-4030681-SC SCREW M3 L=6 (1)
82 SL-6041092-TN SCREW (2)
83
#06
400-94646 TAPE_GUIDE_12 (1)
84
#08
400-94647 TAPE_GUIDE_16 (1)
85
#10
400-94658 TAPE_GUIDE_24 (1)
86
#06
SL-4030691-SC SCREW M3 L=6 ( 3)
87
#08
SL-4031091-SC SCREW M3 X 10 (3)
88
#10
SL-4031891-SC SCREW M3X6 (3)
89
#02
E4007-706-000 EMBOSS_G UIDE_ COLLAR (3)
90
#03
E5007-706-000 EMBOSS_G UIDE_ COLLAR_24 (3)
91
#07
401-36035 EF12_FEED_GUIDE_UNIT_CD 1
92
#09
401-36038 EF16_FEED_GUIDE_UNIT_CD 1
93
#11
401-36041 EF24_FEED_GUIDE_UNIT_CD 1
94
#07
401-34569 FRONT_BLOCK_12_PLA (1)
95
#09
401-34570 FRONT_BLOCK_16_PLA (1)
96
#11
401-34571 FRONT_BLOCK_24_PLA (1)
97
#07
401-34575 TAPE_GUIDE_12_CD (1)
98
#09
401-34576 TAPE_GUIDE_16_CD (1)
99
#11
401-34577 TAPE_GUIDE_24_CD (1)
100
#07
E8226-706-000 SCREW ( 3)
101
#09
E4008-706-000 EMBOSS GUIDE GRUB SCREW (3)
102
#11
E5009-706-000 SCREW ( 3)
103 SL-6041092-TN SCREW (2)
104
#02
E4007-706-000 EMBOSS_G UIDE_ COLLAR (3)
105
#03
E5007-706-000 EMBOSS_G UIDE_ COLLAR_24 (3)
- -

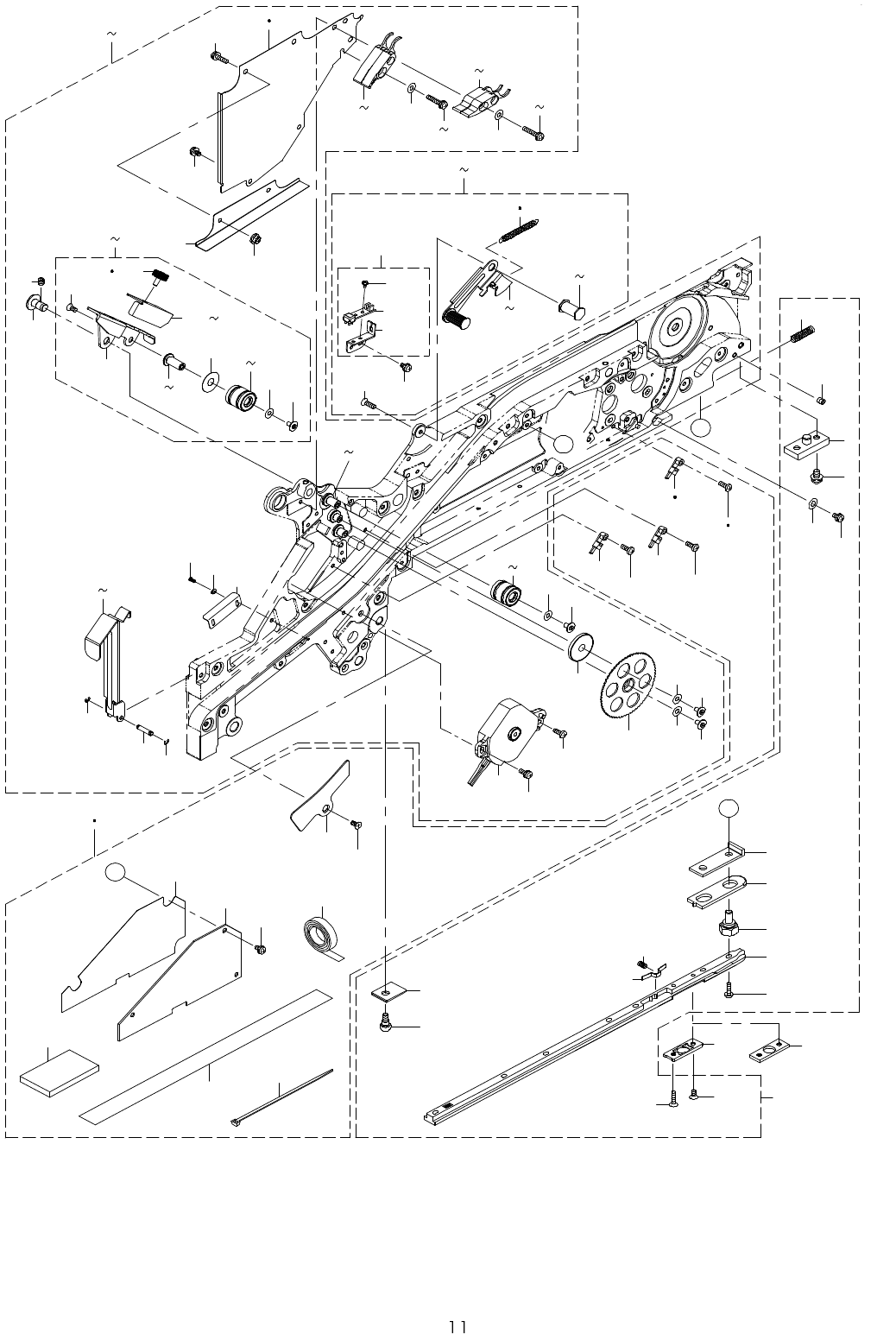

6. EF12FS/EF16FS/EF24FS (2)
2
3
5
6
7
8
1 1
1 2
1 3
1 9
1 5
1 6
1 7
1 8
1 0 9
9 9
1 0 0
1 0 1
9 8
1 0 2
A
1 0
9
4
1 4
2 6
9 2
9 1
2 0 2 5
3 1
3 2
2 8
3 0
2 7
5 2
3 3 3 5
2 9
5 3
4 1 4 3
3 8 4 0
4 4 4 6
8 4
8 3
8 4
6 5
8 5
7 3
7 9 8 0
7 2
5 4 5 5
7 8
6 9 7 1
7 4
6 2 6 4
8 6
5 1
6 1
5 0
8 2
8 1
5 6 6 0
1 1 8 1 1 9
1 2 0 1 2 1
1 1 8
1 1 8
1 2 4
1 1 2
1 0 3 1 0 5
9 6 9 7
3 7
3 6
9 3 9 5
9 0
9 0
1 1 6
1 1 7
1 2 2
1 1 4
1 2 3
1 1 3
1 1 5
B
B
1 1 0 1 1 1
1 2 0
1 2 0
A
1
4 7 4 9
8 7 8 9
6 6 6 8
7 5 7 7
1 0 6 1 0 8
1 2 5
