- - 7. EF12F S /EF16 FS /EF24 FS (3) 2 3 4 6 8 1 0 5 9 1 1 1 6 1 7 1 8 2 1 2 2 2 4 2 5 2 6 2 7 2 8 3 8 2 3 3 9 4 3 4 2 4 0 2 9 3 0 3 1 3 2 3 3 3 5 3 4 3 6 4 5 4 6 5 0 4 9 4 8 1 9 2 0 1 4 1 5 1 4 4 4 1 5 1 1 2 1 3 7 3 7…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-85433 EF12_FRONT_RAIL_UNIT 1
2 400-82693 FRONT_LINER_BLOCK_ASSY (1)
3 SL-4040881-SC SCREW M4 L=8 (2)
4 SM-8040412-TP SET SCREW M4 L=4 (2)
5 400-77520 Y_STOPPER_PLATE (1)
6 400-77519 PLUNGER_PLATE (1)
7 400-77516 PLUNGER_STUD (2)
8 400-68180 PLUNGER_GUIDE_SPRING (1)
9 WP-0430801-SC WASHER 4.3X9X0.8 (1)
10 SL-4030691-SC SCREW M3 L=6 (1)
11 400-77518 SLIDE_RAIL (1)
12 400-77521 X_GUIDE_PRESSURE (1)
13 400-77522 X_SUPPLEMENTAL_SP (1)
14 SM-1031201-SC SCREW M3X0.5 L=12 (1)
15 ST-1030651-SN TAPPING SCREW D=3 L=6 (1)
16 400-68255 REAR_LINER_PLATE (1)
17 400-68191 X_GUIDE_PIN_REAR (1)
18 SM-3031052-TN SCREW M3 L=10 (7)
19 400-78576 RAIL_CAP 1
20
#07
400-85440 EF12_PULL_UNIT 1
21
#08
401-36036 EF12_PULL_UNIT_CD 1
22
#09
400-85446 EF16_PULL_UNIT 1
23
#10
401-36039 EF16_PULL_UNIT_CD 1
24
#11
400-85452 EF24_PULL_UNIT 1
25
#12
401-36042 EF24_PULL_UNIT_CD 1
26 SM-4030801-SC SCREW M3 X 8 (1)
27 400-82695 PULL_MAIN_GEAR_ASSY (1)
28 WP-0320500-SC WASHER M3 (1)
29 E8226-706-000 SCREW (1)
30 400-68671 PULL_INTERMEDIATE_GEAR (1)
31 WP-0320500-SC WASHER M3 (1)
32 E8226-706-000 SCREW (1)
33
#01
400-85362 PULL_DRIVE_GEAR_12 (1)
34
#02
400-85367 PULL_DRIVE_GEAR_16 (1)
35
#03
400-85373 PULL_DRIVE_GEAR_24 (1)
36 400-85360 TH_OUTER_CHAMBER_PLATE_12 (1)
37 SL-4030691-SC SCREW M3 L=6 (2)
38
#01
400-85363 PULL_GEAR_BLOCK_12 (1)
39
#02
400-85368 PULL_GEAR_BLOCK_16 (2)
40
#03
400-85368 PULL_GEAR_BLOCK_16 (3)
41
#01
SL-4031281-SC SCREW M3 L=12 (2)
42
#02
SM-4031601-SC SCREW M3 L=16 (2)
43
#03
SM-4032501-SC SCREW M3 L=25 (2)
44
#01
400-93037 PULL_GEAR_BLOCK_12_U (1)
45
#02
400-93040 PULL_GEAR_BLOCK_16_U (2)
46
#03
400-93040 PULL_GEAR_BLOCK_16_U (3)
47
#01
SL-4031281-SC SCREW M3 L=12 (2)
48
#02
SM-4031601-SC SCREW M3 L=16 (2)
49
#03
SM-4032501-SC SCREW M3 L=25 (2)
50 WP-0220300-SC WASHER (2)
51 400-85416 PULL_CABLE_GUARD (1)
52 WP-0320500-SC WASHER M3 (1)
53 E8226-706-000 SCREW (1)
54
#13
400-85359 LH_OUTER_CHAMBER_PLATE_12 (1)
55
#14
401-34588 LH_OUTER_CHAMBER_PLATE_12_CD (1)
56
#04
400-85361 PULL_DRIVE_GEAR_SH_12 (1)
57
#08
400-85361 PULL_DRIVE_GEAR_SH_12 (1)
58
#11
400-85372 PULL_DRIVE_GEAR_SH_24 (1)
59
#12
400-85372 PULL_DRIVE_GEAR_SH_24 (1)
60
#10
400-85366 PULL_DRIVE_GEAR_SH_16 (1)
61 400-85419 SCREW M2X4 (2)
62
#01
400-85465 PULL_IDLER_ARM_12_ASSY (1)
63
#02
400-85466 PULL_IDLER_ARM_16_ASSY (1)
64
#03
400-85467 PULL_IDLER_ARM_24_ASSY (1)
65 400-85357 PULL_IDLER_ARM_12 (1)
66
#01
400-85365 PULL_IDLER_GEAR_SH_12 (1)
67
#02
400-85370 PULL_IDLER_GEAR_SH_16 (1)
68
#03
400-85375 PULL_IDLER_GEAR_SH_24 (1)
69
#01
400-85362 PULL_DRIVE_GEAR_12 (1)
70
#02
400-85367 PULL_DRIVE_GEAR_16 (1)
71
#03
400-85373 PULL_DRIVE_GEAR_24 (1)
72 E8226-706-000 SCREW (1)
73 SM-1030601-SC SCREW M3 L=6 (1)
74 400-85417 SHIM_12 (1)
75
#01
400-85418 PULL_IDLER_ARM_COVER_12 (1)
76
#02
400-85371 PULL_IDLER_ARM_16 (1)
77
#03
400-85376 PULL_IDLER_ARM_24 (1)
78 WP-0320500-SC WASHER M3 (1)
79
#13
400-85468 PULL_SCREW_12 (1)
80
#14
401-34641 PLAPOINT_SCREW_B02PW_M3X8 (1)
81 NM-3034000-SF FLANGE NUT (2)
82 SL-4031291-SC SCREW M3X12 (2)
83 400-81633 C_LID_SH (1)
84 RE-0200000-K0 E-RING (2)
85 400-85358 PULL_IDLER_ARM_SH_12 (1)
86 SM-8040402-TP SCREW M4X0.7 L=4 (1)
87
#01
400-85364 CHAMBER_GATE_PLATE_12 (1)
88
#02
400-85369 CHAMBER_GATE_PLATE_16 (1)
89
#03
400-85374 CHAMBER_GATE_PLATE_24 (1)
90
#05
WP-0320500-SC WASHER M3 (4)
91 400-68902 PULL MOTOR ASM (1)
92 SL-4030881-SC SCREW M3X8 (1)
93
#01
400-85439 EF12_TENSIONER_UNIT 1
94
#02
400-85445 EF16_TENSIONER_UNIT 1
95
#03
400-85451 EF24_TENSIONER_UNIT 1
96
#01
400-77535 TENSIONER_SPRING (1)
97
#05
400-85377 TENSIONER_SPRING_16 (1)
98 400-82698 TENSIONESENOR_SUB_ASSY (1)
99 400-77532 TENSIONER_SENSOR_BRKT (1)
100 400-55018 TENSIONER SENS PCB ASM (1)
101 401-02832 WILCO_F_0205N_D (2)
102 SL-4030691-SC SCREW M3 L=6 (1)
103
#01
400-85462 TENSIONER_ARM_ASSY_12 (1)
104
#02
400-85463 TENSIONER_ARM_ASSY_16 (1)
105
#03
400-85464 TENSIONER_ARM_ASSY_24 (1)
106 EA-9500B00-00 CLIP CV-70S (7)
107
#02
400-85381 TENSIONER_SH_16 (1)
108
#03
400-85384 TENSIONER_SH_24 (1)
109 SM-1031001-SN SCREW M3X0.5 L=10 (1)
110
#13
400-85435 EF12_ELECTRIC_UNIT 1
111
#14
401-36033 EF12_ELECTRIC_UNIT_CD 1
112
#13
SM-1030601-SC SCREW M3 L=6 (1)
113
#13
HX-0031300-00 TAPE (0.11)
114 EA-9500B00-00 CLIP CV-70S (6)
115 400-69656 DRIVER_CABLE_SPONGE (1)
116 401-44088 2 MOTORS_R PCB ASM (1)
117
#13
400-74121 INSULATING SHEET (1)
118
#13
HX-0015100-00 CLIP WITH CLAMP (3)
119
#14
HX-0056700-00 TIE MOUNT (1)
120
#13
SM-4030801-SC SCREW M3 X 8 (3)
121
#14
SM-1030601-SC SCREW M3 L=6 (1)
122 SL-4030691-SC SCREW M3 L=6 (3)
123 400-95428 SINGLE SIDE ADHESION TAPE50 (0.06)
124
#13
400-85414 CABLE_GUARD (1)
125
#06
400-73828 TAG INSERT(E) KIT 1
- -

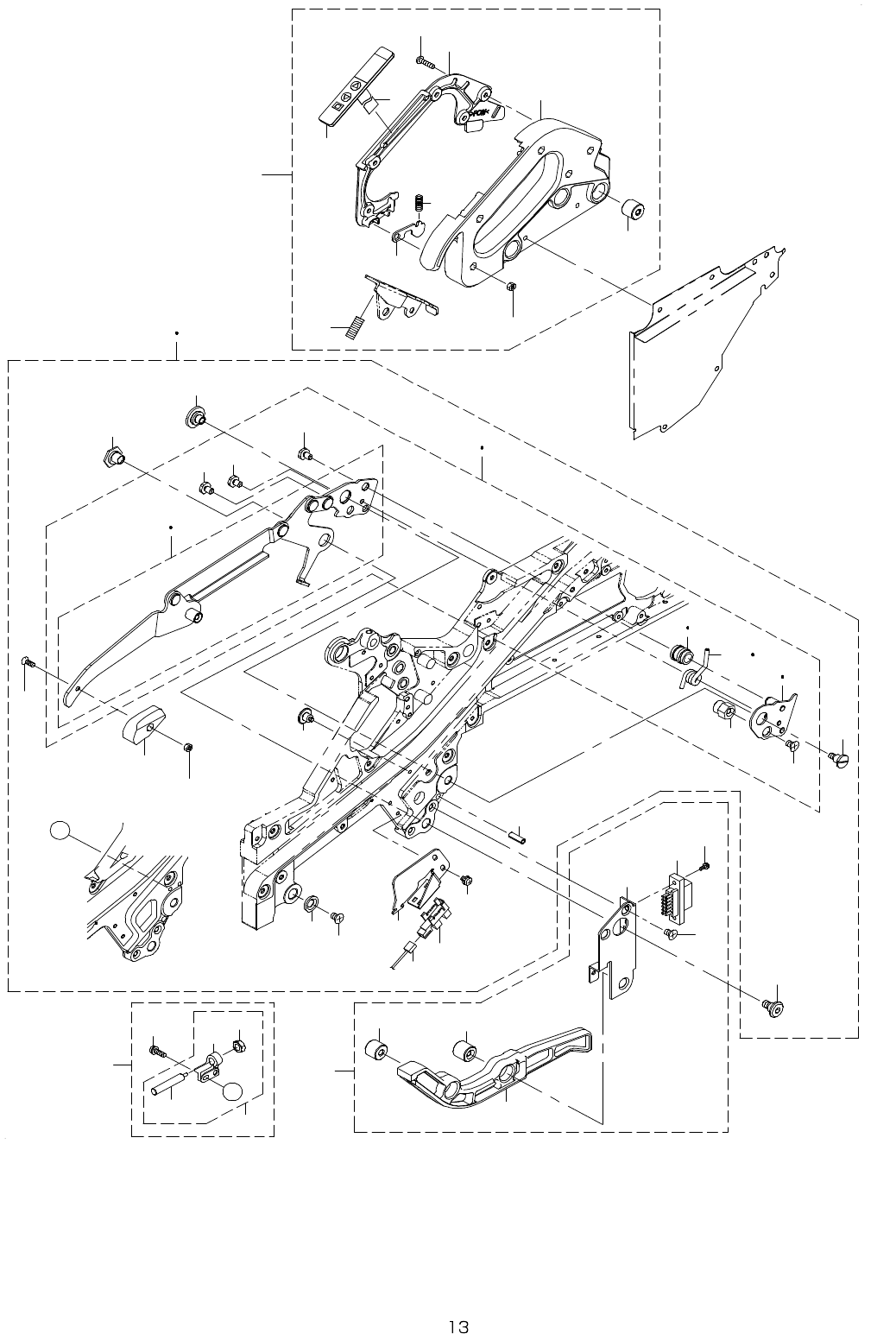

7. EF12FS/EF16FS/EF24FS (3)
2
3
4
6
8
1 0
5
9
1 1
1 6 1 7
1 8
2 1
2 2
2 4
2 5 2 6
2 7 2 8
3 8
2 3
3 9
4 3
4 2
4 0
2 9
3 0
3 1
3 2
3 3
3 5
3 4
3 6
4 5
4 6
5 0
4 9
4 8
1 9 2 0
1 4 1 5
1
4 4
4 1
5 1
1 2 1 3
7
3 7
4 7
5 2
A
5 3
5 7
5 6
5 4
5 5
A
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-85432 EF12_GRIP_UNIT 1
2 400-69647 GRIP (1)
3 400-96859 LATCH_SPRING_12 (1)
4 400-68237 LATCH_PLATE (1)
5 400-72388 SW PANEL (1)
6 400-74123 FFC (1)
7 400-85356 PULL_IDLER_ARM_SPRING_12 (1)
8 400-69649 PANEL_COVER (1)
9 NM-6030002-SC NUT M3X0.5 TYPE2 (5)
10 SM-4031201-SC SCREW M3 X 12 (5)
11 400-68223 COVER_STUD_M (3)
12
#01
400-85431 EF12_CLAMP_UNIT 1
13
#02
401-36029 EF12_CLAMP_UNIT 1
14
#01
400-85457 EF12_CLAMP_LEVER_ASSY (1)
15
#02
401-36030 EF12_CLAMP_LEVER_ASSY_P (1)
16
#01
400-69663 LOCK_BUSHING (1)
17
#02
401-25829 LOCK_BUSHING (1)
18 400-77500 LOCK_STOPPER_BOLT (1)
19
#01
400-69662 LOCK_SPRING (1)
20
#02
401-25828 LOCK_SPRING_32 (1)
21 400-77500 LOCK_STOPPER_BOLT (1)
22 400-69659 LOCK_SP_STOPPER (1)
23 400-77500 LOCK_STOPPER_BOLT (1)
24 SM-1040601-SC SCREW M4X0.7 L=6 (1)
25
#01
400-84401 LOCK_PLATE_R_ASSY (1)
26
#02
401-36032 LOCK_PLATE_R_ASSY_P (1)
27
#01
400-85458 LOCK_RELEASE_LEVER_ASSY_12 (1)
28
#02
401-36031 LOCK_RELEASE_LEVER_ASSY_12_P (1)
29 400-68213 LEVER_CAP (1)
30 SM-1030801-SN SCREW M3X0.5 L=8 (1)
31 NM-6030002-SC NUT M3X0.5 TYPE2 (1)
32 400-77499 ARM_LINK_GUIDE_SH (1)
33 PS-0400122-KP SPRING PIN (1)
34 400-85411 CLAMP_SENSOR_BRKT_12 (1)
35 HD-0027700-00 SENSOR (1)
36 SL-4030691-SC SCREW M3 L=6 (2)
37 400-68992 LOCK SENS WIRE ASM (1)
38 400-68203 CLAMP_SH_F (1)
39 400-77492 CLAMP_SH_M (1)
40 400-77497 ARM_LINK_PIVOT_SH_F (1)
41 400-77496 ARM_LINK_PIVOT_SH_M (1)
42 400-68667 LOCK_LEVER_FLANGE (1)
43 SM-1040601-SC SCREW M4X0.7 L=6 (1)
44 400-85434 EF12_RIAR_RAIL_UNIT 1
45 SM-1040601-SC SCREW M4X0.7 L=6 (2)
46 400-68993 INPUT WIRE ASM (1)
47 SL-4020691-SC SCREW M2 L=6 (2)
48 400-68223 COVER_STUD_M (1)
49 400-68195 BOTTOM_GUIDE_BLOCK (1)
50 400-68251 COVER_STUD_S (1)
51 400-77517 MAIN_CONNECTOR_BRKT (1)
52
#02
401-35973 PLUNGER_UNIT 1
53 401-35974 PLUNGER_ASSY (1)
54 401-25826 PLUNGER_BLOCK_ADC (1)
55 401-25827 SPRING_PLUNGER (1)
56 NM-6050003-SC NUT M5X0.8 (1)
57 SL-4031081-SC SCREW M3 X 10 (1)
