ETF8-56S-Rev06 - 第23页
- - REF.NO NOT E P ART N O D E S C R I P T I O N Q ty 1 4 00-8543 3 EF12 _FRONT_RA IL_UNI T 1 2 4 00-8269 3 FRO NT_LINER_B LOCK_ ASSY (1) 3 S L-40408 81-SC SCR EW M4 L= 8 (2) 4 S M-8040 412-TP SET SCREW M4 L =4 (2) 5 4…
- -
10.EF32FS/EF44FS/EF56FS (2)
2
3
5
6
7
8
1 1
1 2
1 3
1 9
1 5
1 6
1 7
1 8
1 0 9
1 1 0
1 1 1
1 0 8
1 1 2
A
1 0
9
4
1 4
2 6
8 9
8 8
2 0 2 5
3 1
3 2
2 8
3 0
2 7
3 3 3 5
2 9
3 8 4 0
4 4 4 6
8 4
8 3
8 4
7 6 7 7
4 8
9 0
7 1
9 1
7 8 8 0
9 3
9 4
9 9
1 0 1
9 9
1 0 0
9 5
1 0 7
3 6
7 4
8 7
8 7
7 2
7 2
4 1 4 3
6 4 6 6
8 2
3 7
8 1
9 7
1 0 6
1 1 3 1 1 5
7 3
7 5
6 9 7 0
6 8
5 2 5 4
6 2
4 7
5 6 5 8
5 9 6 1
6 3
5 5
6 7
9 6
9 8
B
B
9 2
A
8 5
8 5
4 9 5 1
4 1 4 3
1 1 6 1 1 8
1 0 3 1 0 5
1
1 0 2
8 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-85433 EF12_FRONT_RAIL_UNIT 1
2 400-82693 FRONT_LINER_BLOCK_ASSY (1)
3 SL-4040881-SC SCREW M4 L=8 (2)
4 SM-8040412-TP SET SCREW M4 L=4 (2)
5 400-77520 Y_STOPPER_PLATE (1)
6 400-77519 PLUNGER_PLATE (1)
7 400-77516 PLUNGER_STUD (2)
8 400-68180 PLUNGER_GUIDE_SPRING (1)
9 WP-0430801-SC WASHER 4.3X9X0.8 (1)
10 SL-4030691-SC SCREW M3 L=6 (1)
11 400-77518 SLIDE_RAIL (1)
12 400-77521 X_GUIDE_PRESSURE (1)
13 400-77522 X_SUPPLEMENTAL_SP (1)
14 SM-1031201-SC SCREW M3X0.5 L=12 (1)
15 ST-1030651-SN TAPPING SCREW D=3 L=6 (1)
16 400-68255 REAR_LINER_PLATE (1)
17 400-68191 X_GUIDE_PIN_REAR (1)
18 SM-3031052-TN SCREW M3 L=10 (7)
19 400-78576 RAIL_CAP 1
20
#05
400-91567 EF32_PULL_UNIT 1
21
#06
401-36048 EF32_PULL_UNIT_CD 1
22
#07
400-91572 EF44_PULL_UNIT 1
23
#08
401-36050 EF44_PULL_UNIT_CD 1
24
#09
400-91577 EF56_PULL_UNIT 1
25
#10
401-36072 EF56_PULL_UNIT_CD 1
26 SM-4030801-SC SCREW M3 X 8 (1)
27 400-82695 PULL_MAIN_GEAR_ASS Y (1)
28 WP-0320501-SC WASHER M3 (1)
29 E8226-706-000 SCREW (1)
30 400-68671 PULL_INTERMEDIATE_GEAR (1)
31 WP-0320501-SC WASHER M3 (1)
32 E8226-706-000 SCREW (1)
33
#01
400-91677 PULL_DRIVE_GEAR_32 (1)
34
#02
400-91688 PULL_DRIVE_GEAR_44 (1)
35
#03
400-91696 PULL_DRIVE_GEAR_56 (1)
36 400-85360 TH_OUTER_CHAMBER_PLATE _12 (1)
37 SL-4030691-SC SCREW M3 L=6 (2)
38
#01
400-85368 PULL_GEAR_BLOCK_16 (4)
39
#02
400-85368 PULL_GEAR_BLOCK_16 (5)
40
#03
400-85368 PULL_GEAR_BLOCK_16 (7)
41
#01
400-91679 PULL_GEAR_BL_SH_32 (4)
42
#02
400-91691 PULL_GEAR_BL_SH_44 (4)
43
#03
400-91698 PULL_GEAR_BL_SH_56 (4)
44
#01
400-93040 PULL_GEAR_BLOCK_16_U (4)
45
#02
400-93040 PULL_GEAR_BLOCK_16_U (5)
46
#03
400-93040 PULL_GEAR_BLOCK_16_U (7)
47 SM-8040402-TP SCREW M4X0.7 L=4 (1)
48 400-85416 PULL_CABLE_GUARD (1)
49
#01
400-91683 CHAMBER_GATE_PLATE_32 (1)
50
#02
400-91693 CHAMBER_GATE_PLATE_44 (1)
51
#03
400-91700 CHAMBER_GATE_PLATE_56 (1)
52
#01
400-91680 PULL_IDLER_ARM_32_ASSY (1)
53
#02
400-91692 PULL_IDLER_ARM_44_ASSY (1)
54
#03
400-91699 PULL_IDLER_ARM_56_ASSY (1)
55 400-91684 PULL_IDLER_MAIN_ARM _32 (1)
56
#01
400-91685 PULL_IDLER_GEAR_SH_32 (1)
57
#02
400-91694 PULL_IDLER_GEAR_SH_44 (1)
58
#03
400-91701 PULL_IDLER_GEAR_SH_56 (1)
59
#01
400-91677 PULL_DRIVE_GEAR_32 (1)
60
#02
400-91688 PULL_DRIVE_GEAR_44 (1)
61
#03
400-91696 PULL_DRIVE_GEAR_56 (1)
62 SM-1030801-SC SCREW M3 L=8 (1)
63 400-85417 SHIM_12 (1)
64
#01
400-91686 PULL_IDLER_ARM_COVER_32 (1)
65
#02
400-91695 PULL_IDLER_ARM_COVER_44 (1)
66
#03
400-91702 PULL_IDLER_ARM_COVER_56 (1)
67 SL-4030691-SC SCREW M3 L=6 (2)
68 400-91687 PULL_MAINTENANCE_C OVER_32 (1)
69
#11
400-85468 PULL_SCREW_12 (1)
70
#12
401-34641 PLAPOINT_SCREW_B02PW_M 3X8 (1)
71 WP-0220300-SC WASHER (2)
72 WS-0310002-KN SPRING WASHER M3 (4)
73 400-91681 PULL_IDLER_MAIN_ARM _SH_32 (1)
74 E8226-706-000 SCREW (1)
75 400-85356 PULL_IDLER_ARM_SPRING_12 (1)
76
#11
400-85359 LH_OUTER_CHAMBER_PLATE _12 (1)
77
#12
401-34588 LH_OUTER_CHAMBER_PLATE _12_CD (1)
78
#01
400-91678 PULL_DRIVE_GEAR_SH_32 (1)
79
#02
400-91689 PULL_DRIVE_GEAR_SH_44 (1)
80
#03
400-91697 PULL_DRIVE_GEAR_SH_56 (1)
81 SL-4031291-SC SCREW M3X12 (2)
82 400-91682 SET_COLLER (1)
83 400-81633 C_LID_SH (1)
84 RE-0200000-K0 E-RING (2)
85
#02
400-91690 SPACER_PLATE (4)
86
#12
E4901-760-000 POLY SLIDER THRUST WASHER (2)
87 WP-0320500-SC WASHER M3 (4)
88 400-68902 PULL MOTOR ASM (1)
89 SL-4030881-SC SCREW M3X8 (1)
90 400-85419 SCREW M2X4 (2)
91 NM-3034000-SF FLANGE NUT (2)
92 400-91581 EF32_ELECTRIC_UNIT 1
93 EA-9500B00-00 CLIP CV-70S (6)
94 400-95428 SINGLE SIDE ADHESION TAPE50 (0.06)
95 400-69656 DRIVER_CABLE_SPONGE (1)
96 401-44088 2 MOTORS_R PCB ASM (1)
97 400-69655 COVER_STEP_SPONGE (1)
98 SL-4030691-SC SCREW M3 L=6 (3)
99 HX-0015100-00 CLIP WITH CLAMP (2)
100 SM-4030801-SC SCREW M3 X 8 (1)
101 SM-3031052-TN SCREW M3 L=10 (1)
102
#04
400-73828 TAG INSERT(E) KIT 1
103
#01
400-91566 EF32_TENSIONER_UNIT 1
104
#02
400-91571 EF44_TENSIONER_UNIT 1
105
#03
400-91576 EF56_TENSIONER_UNIT 1
106 SM-1030801-SC SCREW M3 L=8 (1)
107 400-91665 TENSIONER_SPRING_3 2 (1)
108 400-82698 TENSIONESENOR_SUB_ASSY (1)
109 400-77532 TENSIONER_SENSOR_BRKT (1)
110 400-55018 TENSIONER SENS PCB ASM (1)
111 401-02832 WILCO F 0205N D (2)
112 SL-4030691-SC SCREW M3 L=6 (1)
113
#01
400-91663 TENSIONER_ARM_ASSY_32 (1)
114
#02
400-91669 TENSIONER_ARM_ASSY_44 (1)
115
#03
400-91674 TENSIONER_ARM_ASSY_56 (1)
116
#01
400-91664 GUIDE_ROLLER_SH_32 (1)
117
#02
400-91670 GUIDE_ROLLER_SH_44 (1)
118
#03
400-91675 GUIDE_ROLLER_SH_56 (1)
- -

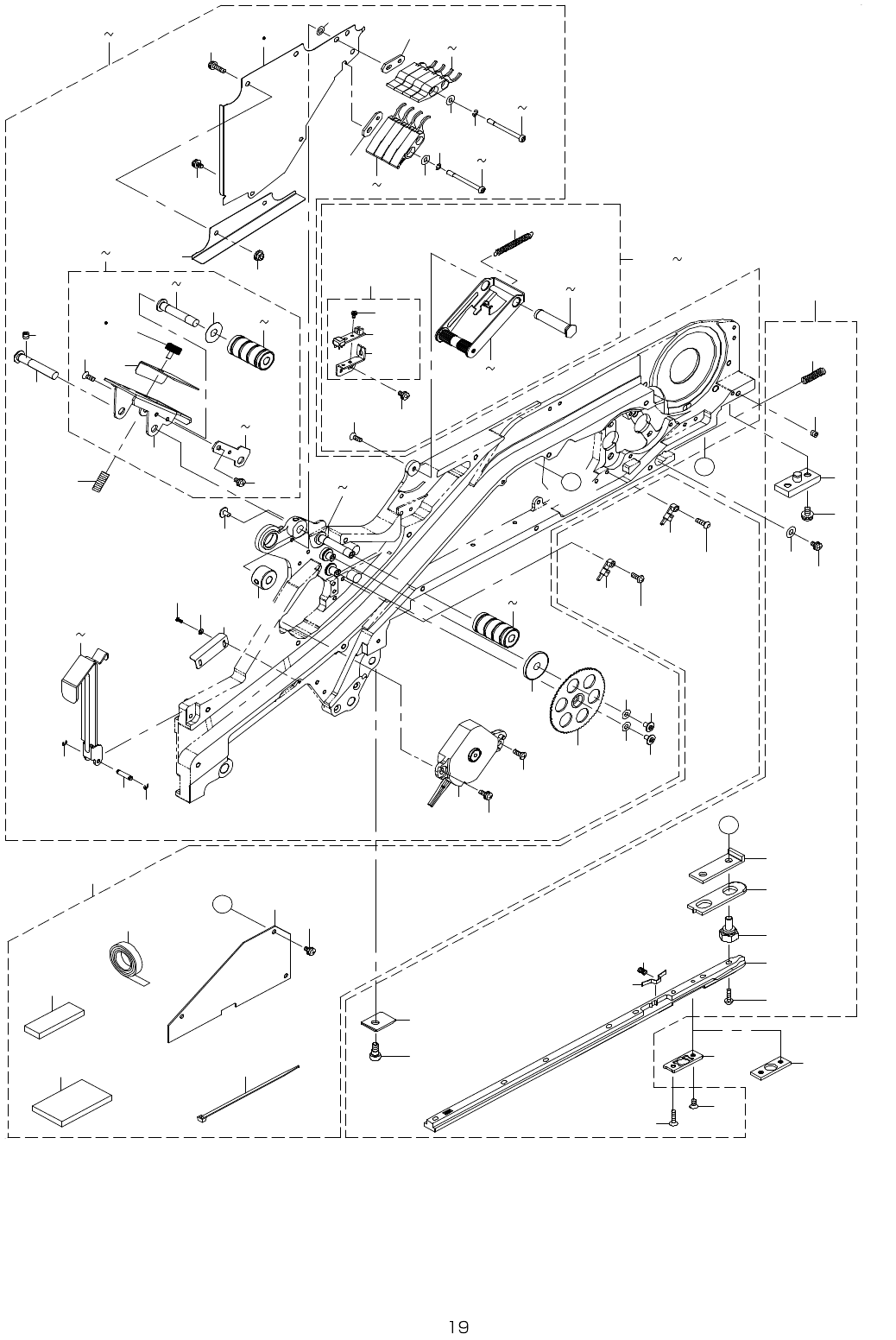

11.EF32FS/EF44FS/EF56FS (3)
2
4
6
8
3
5
9
7
1 9 2 0
1 5
1 7
2 5
2 7
2 8 2 9
3 0 3 1
3 2
1 9
3 3
3 7
3 6
3 4
3 8
3 9
4 0
4 1
4 2
4 4
4 3
1 6
4 8
4 9
5 3
5 2
5 1
2 2 2 3
1 7 1 8
4 6
3 5
4 7
1 4 1 5
1 0 1 3
4 5
5 0
5 4
5 7
5 6
5 8
5 9
A
5 5
1
A
