ETF8-56S-Rev06 - 第26页
- - 12. EF3 2F S/EF4 4FS /EF 56FS (4 ) 1 6 7 4 4 4 4 4 4 7 7 7 7 4 7 4 6 4 9 2 6 4 8 4 5 5 0 4 2 4 3 4 4 1 3 1 4 8 1 0 1 1 1 2 A A 3 6 3 8 1 1 4 0 1 1 4 0 1 1 4 0 1 1 4 0 1 1 4 0 1 1 4 0 3 9 4 0 4 1 2 5 2 7 2 9 2 7 2 9…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-91580 EF32_GRIP_UNIT 1
2 400-69647 GRIP (1)
3 SM-4031201-SC SCREW M3 X 12 (5)
4 400-68237 LATCH_PLATE (1)
5 400-72388 SW PANEL (1)
6 400-74123 FFC (1)
7 400-68223 COVER_STUD_M (3)
8 400-69649 PANEL_COVER (1)
9 NM-6030002-SC NUT M3X0.5 TYPE2 (5)
10
#01
400-91595 LATCH_SPRING_32 1
11
#03
400-91595 LATCH_SPRING_32 1
12
#04
400-96920 LATCH_SPRING_44 1
13
#05
400-95759 LATCH_SPRING_56 1
14
#01
400-85431 EF12_CLAMP_UNIT 1
15
#02
401-36029 EF12_CLAMP_UNIT 1
16 SL-4030691-SC SCREW M3 L=6 (2)
17
#01
400-85457 EF12_CLAMP_LEVER_ASSY (1)
18
#02
401-36030 EF12_CLAMP_LEVER_ASSY_P (1)
19
#01
400-69663 LOCK_BUSHING (1)
20
#02
401-25829 LOCK_BUSHING (1)
21 400-77500 LOCK_STOPPER_BOLT (1)
22
#01
400-69662 LOCK_SPRING (1)
23 400-77500 LOCK_STOPPER_BOLT (1)
24 400-69659 LOCK_SP_STOPPER (1)
25
#02
401-25828 LOCK_SPRING_32 (1)
26 400-77500 LOCK_STOPPER_BOLT (1)
27 SM-1040601-SC SCREW M4X0.7 L=6 (1)
28
#01
400-84401 LOCK_PLATE_R_ASSY (1)
29
#02
401-36032 LOCK_PLATE_R_ASSY_P (1)
30
#01
400-85458 LOCK_RELEASE_LEVER_ASSY_12 (1)
31
#02
401-36031 LOCK_RELEASE_LEVER_ASSY_12_P (1)
32 400-68203 CLAMP_SH_F (1)
33 400-77492 CLAMP_SH_M (1)
34 400-77497 ARM_LINK_PIVOT_SH_F (1)
35 400-77496 ARM_LINK_PIVOT_SH_M (1)
36 400-68667 LOCK_LEVER_FLANGE (1)
37 SM-1040601-SC SCREW M4X0.7 L=6 (1)
38 400-68213 LEVER_CAP (1)
39 SM-1030801-SN SCREW M3X0.5 L=8 (1)
40 NM-6030002-SC NUT M3X0.5 TYPE2 (1)
41 400-77499 ARM_LINK_GUIDE_SH (1)
42 PS-0400122-KP SPRING PIN (1)
43 400-85411 CLAMP_SENSOR_BRKT_12 (1)
44 HD-0027700-00 SENSOR (1)
45 400-68992 LOCK SENS WIRE ASM (1)
46 400-85434 EF12_RIAR_RAIL_UNIT 1
47 400-77517 MAIN_CONNECTOR_BRKT (1)
48 SM-1040601-SC SCREW M4X0.7 L=6 (2)
49 400-68993 INPUT WIRE ASM (1)
50 SL-4020691-SC SCREW M2 L=6 (2)
51 400-68223 COVER_STUD_M (1)
52 400-68195 BOTTOM_GUIDE_BLOCK (1)
53 400-68251 COVER_STUD_S (1)
54
#02
401-35973 PLUNGER_UNIT 1
55 401-35974 PLUNGER_ASSY (1)
56 401-25826 PLUNGER_BLOCK_ADC (1)
57 401-25827 SPRING_PLUNGER (1)
58 NM-6050003-SC NUT M5X0.8 (1)
59 SL-4031081-SC SCREW M3 X 10 (1)
- -

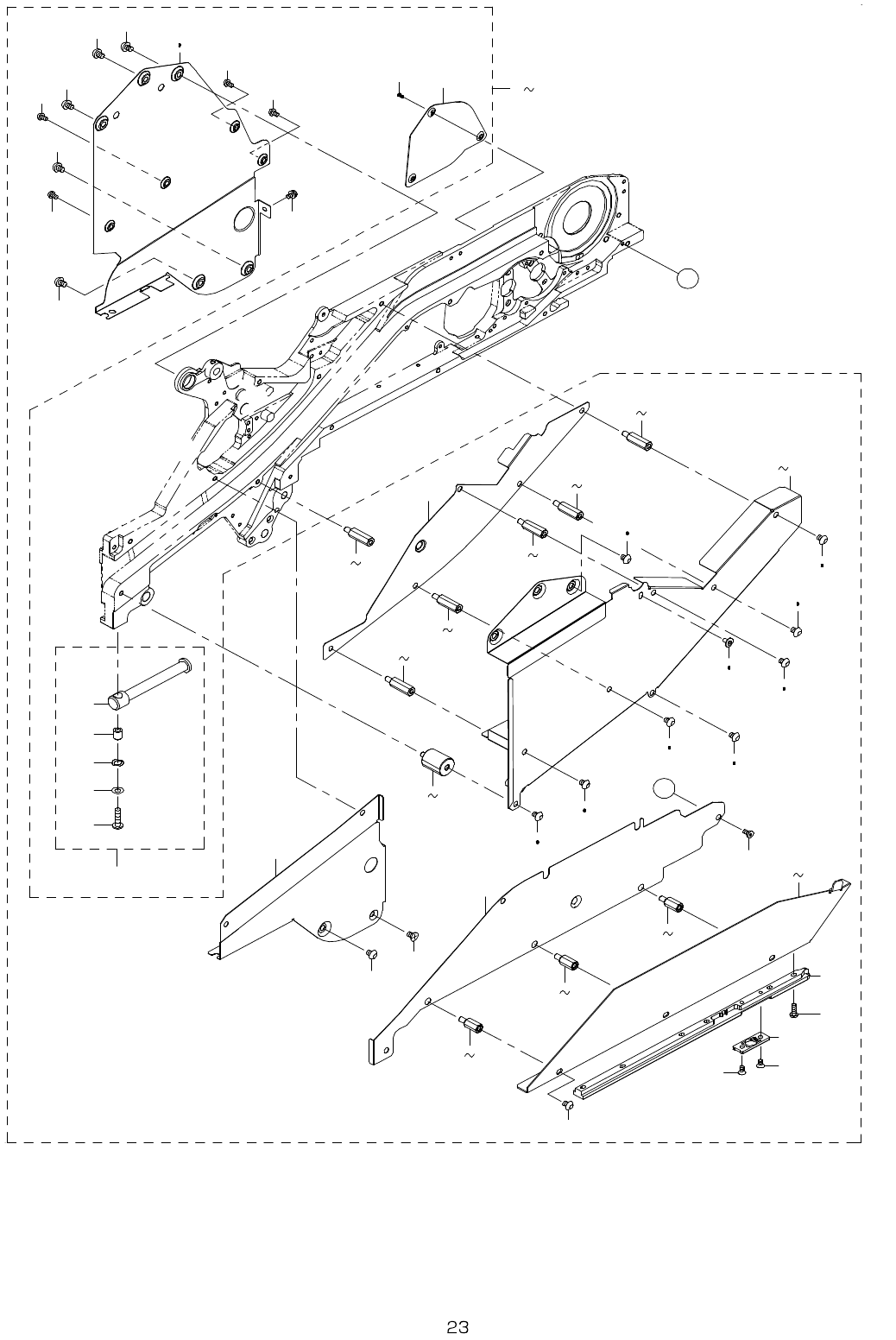

12.EF32FS/EF44FS/EF56FS (4)
1 6
7
4 4
4 4
4 4
7
7
7
7
4 7
4 6
4 9
2 6
4 8
4 5
5 0
4 2 4 3
4 4
1 3
1 4
8 1 0
1 1 1 2
A
A
3 6 3 8
1 1 4 0
1 1 4 0
1 1 4 0
1 1 4 0
1 1 4 0
1 1 4 0
3 9 4 0
4 1
2 5
2 7 2 9
2 7 2 9
2 7 2 9
1 5
3 0 3 2
1 7
1 8
1 9
2 0
2 2
2 3
3 3 3 5
3 3 3 5
3 3 3 5
3 3 3 5
3 3 3 5
1 6
3 3 3 5
2 4
2 1
1 1 4 0
- -

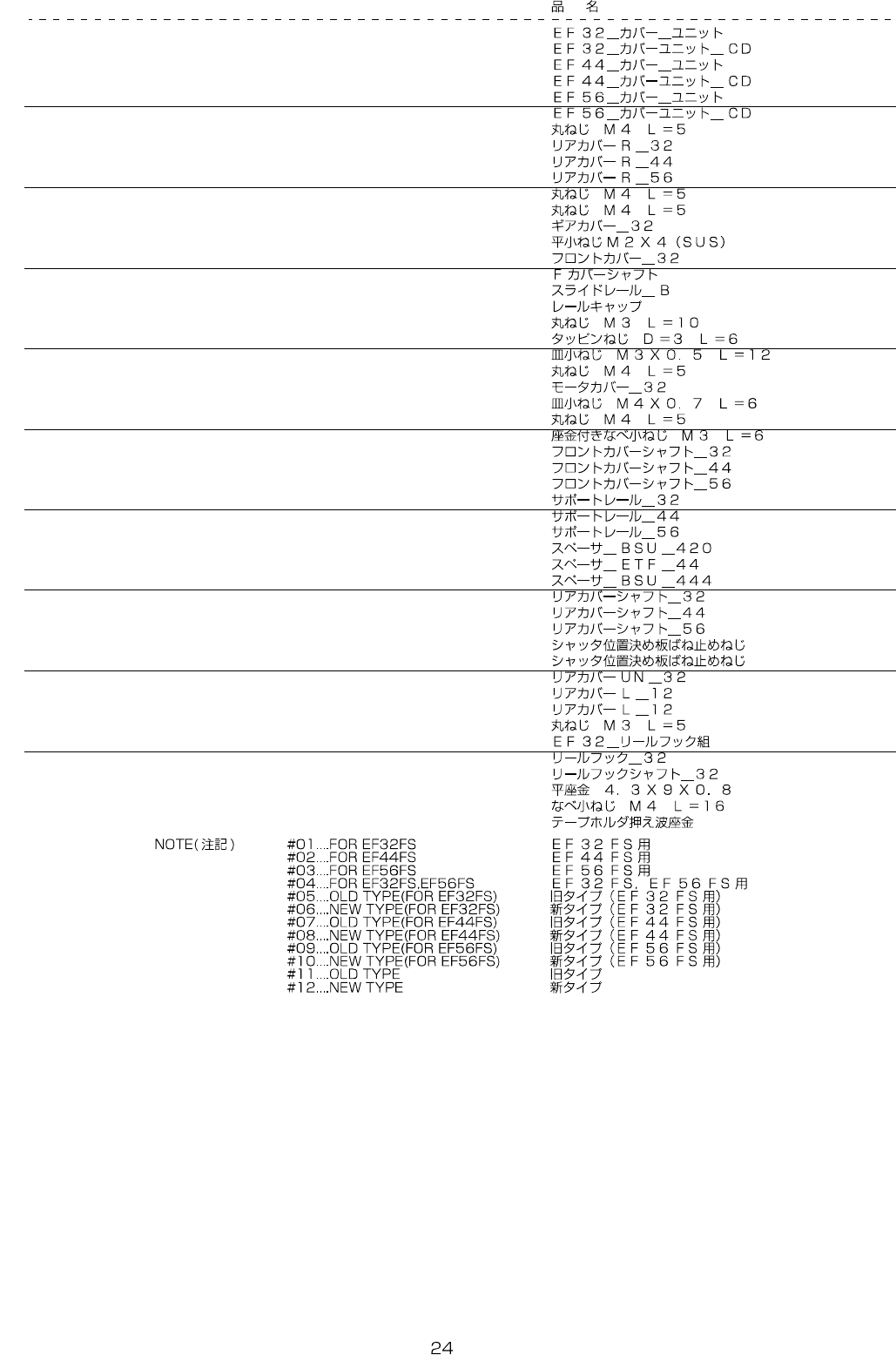

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#05
400-91563 EF32_COVER_UNIT 1
2
#06
401-36047 EF32_COVER_UNIT_CD 1
3
#07
400-91568 EF44_COVER_UNIT 1
4
#08
401-36049 EF44_COVER_UNIT_CD 1
5
#09
400-91573 EF56_COVER_UNIT 1
6
#10
401-36071 EF56_COVER_UNIT_CD 1
7 SM-3040552-TN SCREW M4 L=5 (5)
8
#01
400-91608 REAR_COVER_R_32 (1)
9
#02
400-91614 REAR_COVER_R_44 (1)
10
#03
400-91619 REAR_COVER_R_56 (1)
11
#04
SM-3040552-TN SCREW M4 L=5 (10)
12
#02
SM-3040552-TN SCREW M4 L=5 (3)
13 400-91609 GEAR_COVE_32 (1)
14 400-85419 SCREW M2X4 (3)
15 400-91600 FRONT_COVER_32 (1)
16 401-05313 F_COVER_SH_H (3)
17 400-91603 SLIDE_RAIL_B (1)
18 400-78576 RAIL_CAP (1)
19 SM-3031052-TN SCREW M3 L=10 (6)
20 ST-1030651-SN TAPPING SCREW D=3 L=6 (1)
21 SM-1031201-SC SCREW M3X0.5 L=12 (1)
22 SM-3040552-TN SCREW M4 L=5 (3)
23 400-91605 MOTOR_COVER_32 (1)
24 SM-1040601-SC SCREW M4X0.7 L=6 (1)
25 SM-3040552-TN SCREW M4 L=5 (1)
26 SL-4030691-SC SCREW M3 L=6 (1)
27
#01
400-91601 FRONT_COVER_SH_32 (3)
28
#02
400-91610 FRONT_COVER_SH_44 (3)
29
#03
400-91615 FRONT_COVER_SH_56 (3)
30
#01
400-91602 SUPPORT_RAIL_32 (1)
31
#02
400-91611 SUPPORT_RAIL_44 (1)
32
#03
400-91616 SUPPORT_RAIL_56 (1)
33
#01
400-91606 SPACER_BSU_420 (6)
34
#02
400-91612 SPACER_ETF_44 (6)
35
#03
400-91617 SPACER_BSU_444 (6)
36
#01
400-91607 REAR_COVER_SH_32 (1)
37
#02
400-91613 REAR_COVER_SH_44 (1)
38
#03
400-91618 REAR_COVER_SH_56 (1)
39
#04
E8226-706-000 SCREW (1)
40
#02
E8226-706-000 SCREW (8)
41 400-91604 REAR_COVER_UN_32 (1)
42
#11
400-85393 REAR_COVER_L_12 (1)
43
#12
401-25837 REAR_COVER_L_12 (1)
44 SM-3030552-TN SCREW M3 L=5 (4)
45 400-91582 EF32_REEL_HOOK_ASSY 1
46 400-91597 REEL_HOOK_32 (1)
47 400-91598 REEL_HOOK_SH_32 (1)
48 WP-0430801-SC WASHER 4.3X9X0.8 (1)
49 SM-4041601-SC SCREW M4X0.7 L=16 (1)
50 E1306-706-C00 TAPE HOLDER WASHER (1)
