Find us at www.keysight.com Page 19
Receiver Dynamic Range
Table 10. Receiver Dynamic Range (dB), All Options
Description Typical
10 MHz to 50 MHz
1
91
50 MHz to 100 MHz
1
112
100 MHz to 500 MHz
118
500 MHz to 1 GHz
127
1 GHz to 10 GHz
131
10 GHz to 13.5 GHz
132
13.5 GHz to 26.5 GHz
133
26.5 GHz to 30 GHz
124
30 GHz to 35 GHz
123
35 GHz to 40 GHz
121
40 GHz to 50 GHz
119
50 GHz to 60 GHz
118
60 GHz to 67 GHz
119
67 GHz to 70 GHz
117
1
With an LFE option installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is
the same for both LFE enabled or disabled.
Table 11. Receiver Dynamic Range (dB), All Ports, All LFE Options (LFE Enabled)
Description Typical
500 Hz to 900 Hz
106
900 Hz to 1 kHz
109
1 kHz to 10 kHz
109
10 kHz to 100 kHz
118
100 kHz to 1 MHz
123
1 MHz to 5 MHz
123
5 MHz to 10 MHz
119
10 MHz to 50 MHz
120
50 MHz to 100 MHz
120
Find us at www.keysight.com Page 20
Corrected System Performance, All Options
Applies to the N5227B Option 200, 201, 205, 219, 220, 400, 405, 401, 419, or 420 analyzers, N4697F
flexible test port cable set, and a full 2-port calibration. Also applies to the following condition:
Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature
Note: For any Sii reflection measurement:
•
Sjj = 0.
For any Sij transmission measurement:
•
Sji = Sij when Sij
≤
1
•
Sji = 1/Sij when Sij
>
1
•
Skk = 0 for all k
Please download our free Uncertainty Calculator from http://www.keysight.com/find/na_calculator for
specifications for other calibration kits and measurement setups.
Table 12. N5227B with 85058B Calibration Kit
Description Specification (dB)
10 MHz to
50 MHz
1
50 MHz to
2 GHz
1
2 GHz to
10 GHz
10 GHz to
20 GHz
20 GHz to
35 GHz
35 GHz to
50 GHz
50 GHz to
60 GHz
60 GHz to
67 GHz
Directivity
35
35
38
38
37
37
34
34
Source Match
34
34
40
40
41
42
40
40
Load Match
34
35
37
37
36
36
33
33
Reflection Tracking
Mag
0.019
0.019
0.033
0.033
0.033
0.020
0.030
0.030
Phase (°)
0.125
0.125
0.218
0.218
0.218
0.132
0.198
0.198
Transmission Tracking
Mag
0.159
0.128
0.099
0.094
0.100
0.093
0.121
0.137
Phase (°)
1.047
0.845
0.655
0.619
0.663
0.616
0.801
0.903
1
With an LFE option installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is
the same for both LFE enabled or disabled.
Find us at www.keysight.com Page 21

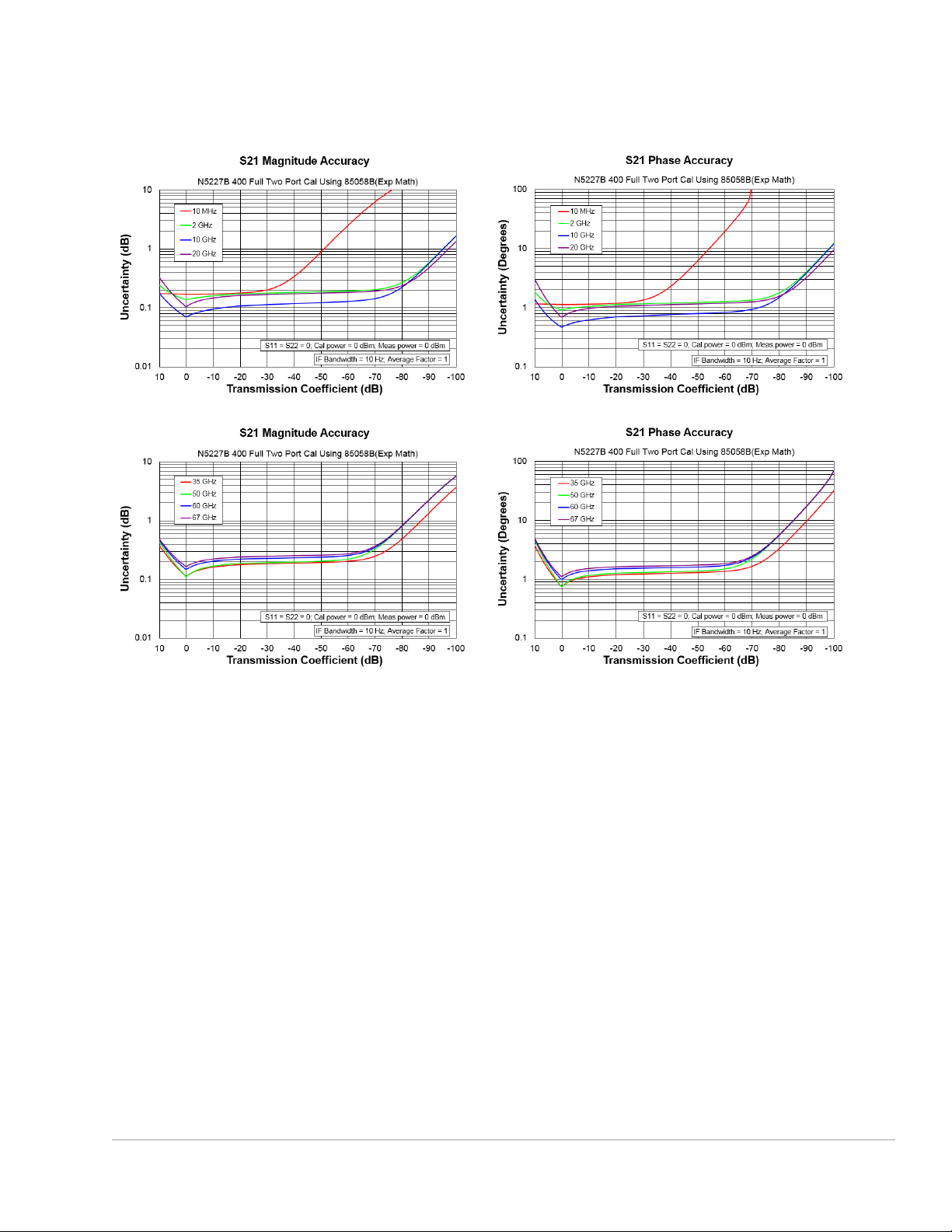

Transmission Uncertainty, All Options
