Find us at www.keysight.com Page 22
Reflection Uncertainty, All Options
Find us at www.keysight.com Page 23
Table 13. N5227B with N4694A 2-Port Electronic Calibration Module
Description Specification (dB)
10 MHz to
50 MHz
1
50 MHz to
2 GHz
1
2 GHz to
10 GHz
10 GHz to
20 GHz
20 GHz to
35 GHz
35 GHz to
50 GHz
50 GHz to
60 GHz
60 GHz to
67 GHz
Directivity
33
41
47
46
44
42
41
38
Source Match
25
38
39
35
34
33
30
27
Load Match
25
37
38
34
33
32
29
26
Reflection Tracking
Mag
±0.050
±0.040
±0.040
±0.050
±0.060
±0.070
±0.080
±0.090
Phase (°)
±0.330
±0.264
±0.264
±0.330
±0.396
±0.462
±0.528
±0.594
Transmission Tracking
Mag
±0.146
±0.059
±0.057
±0.072
±0.087
±0.104
±0.114
±0.144
Phase (°)
±0.966
±0.392
±0.378
±0.473
±0.576
±0.688
±0.754
±0.951
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the
same for both LFE enabled or disabled.
Find us at www.keysight.com Page 24

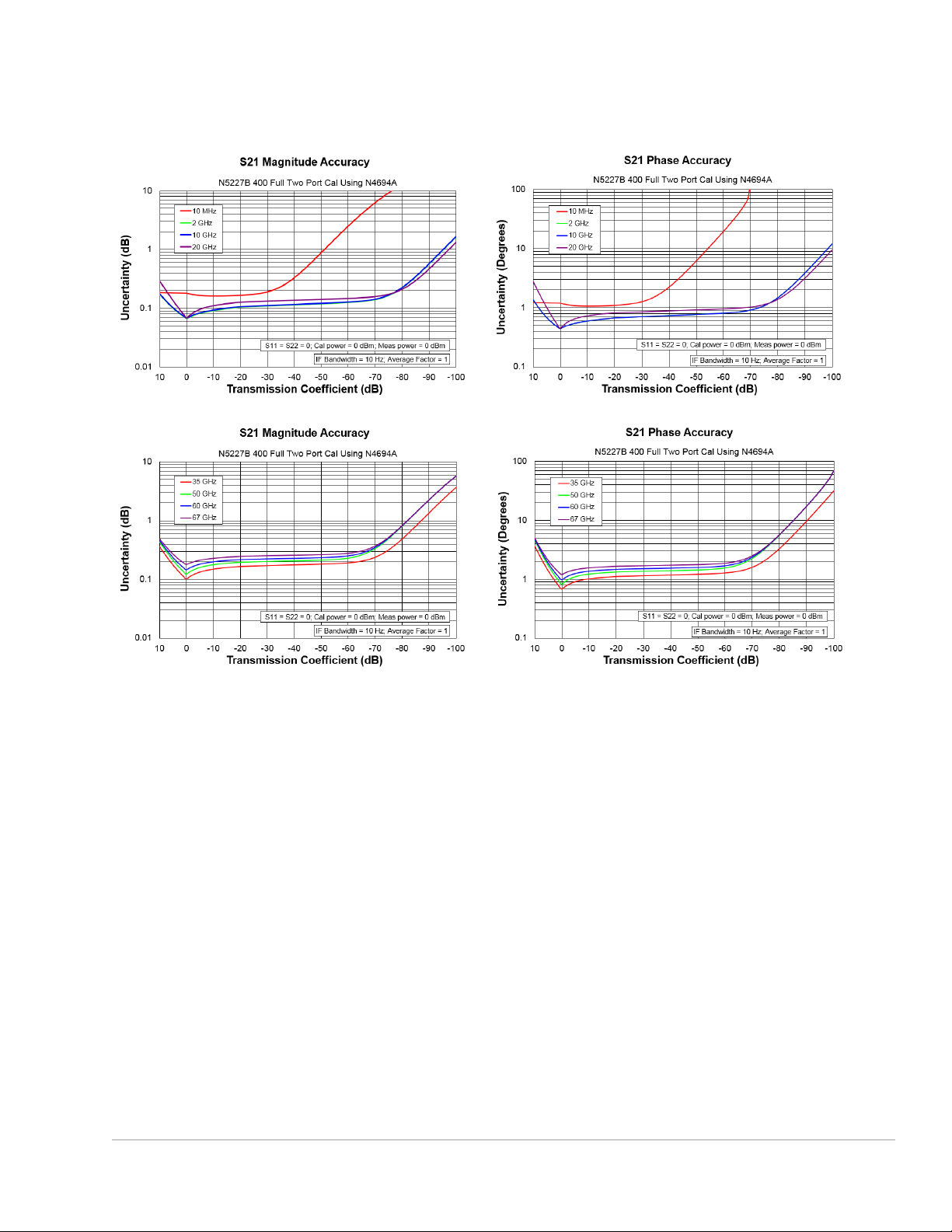

Transmission Uncertainty, All Options
