Find us at www. keysi ght.com Page 28 Reflection Uncertainty , All Options
Find us at www.keysight.com Page 27
Transmission Uncertainty, All Options
Find us at www.keysight.com Page 28
Reflection Uncertainty, All Options
Find us at www.keysight.com Page 29

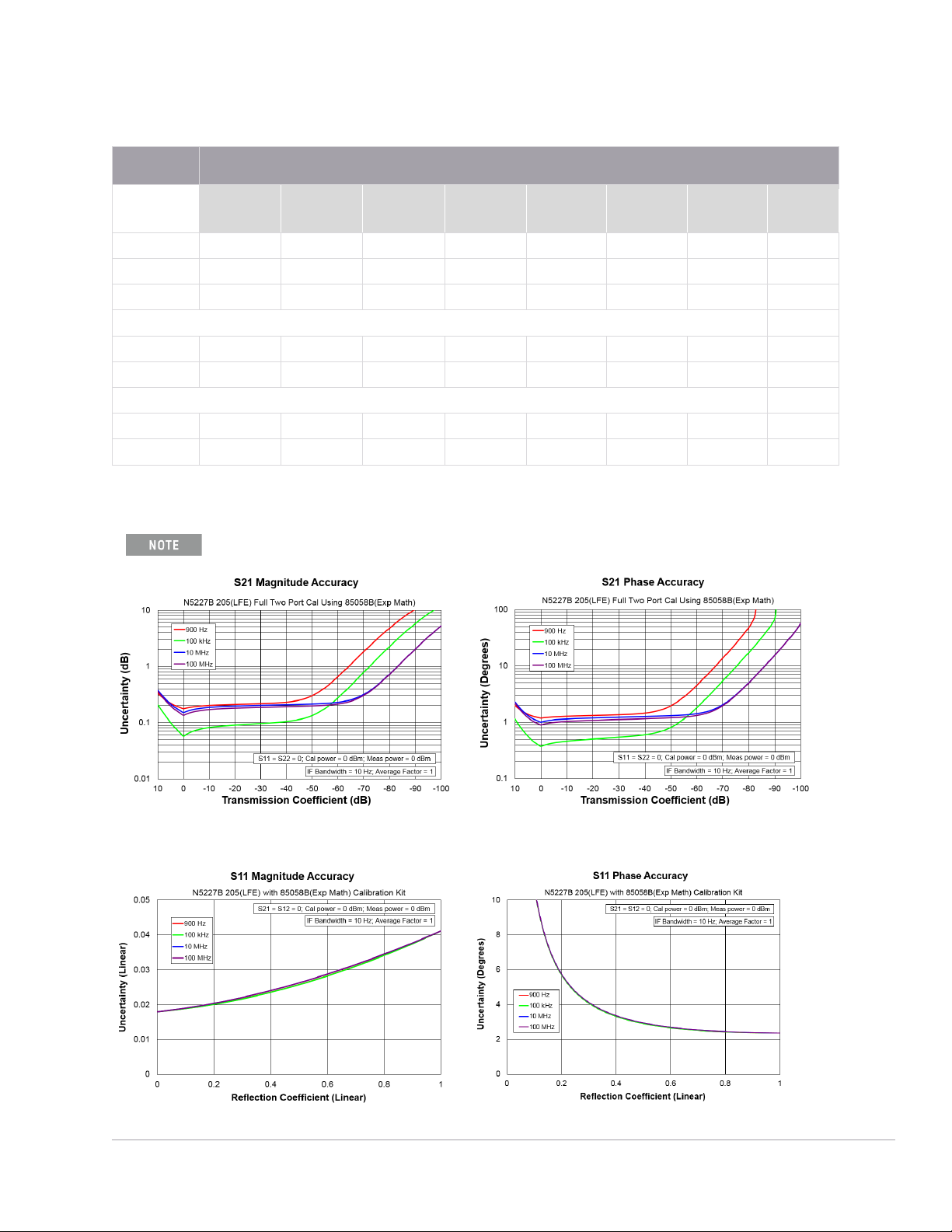

Table 15. N5227B with 85058B Calibration Kit, All LFE Options (LFE Enabled)
Description Specification (dB)
900 Hz to
1 kHz
1 kHz to
10 kHz
10 kHz to
100 kHz
100 kHz to
1 MHz
1 MHz to
5 MHz
5 MHz to
10 MHz
10 MHz to
50 MHz
50 MHz to
100 MHz
Directivity
35
35
35
35
35
35
35
35
Source Match
34
34
34
34
34
34
34
34
Load Match
35
35
35
35
35
35
35
35
Reflection Tracking
Mag
±0.019
±0.019
±0.019
±0.019
±0.019
±0.019
±0.019
±0.019
Phase (°)
±0.125
±0.125
±0.125
±0.125
±0.125
±0.125
±0.125
±0.125
Transmission Tracking
Mag
±0.167
±0.149
±0.047
±0.103
±0.140
±0.140
±0.125
±0.125
Phase (°)
±1.105
±0.983
±0.309
±0.680
±0.926
±0.926
±0.823
±0.823
Transmission Uncertainty, All LFE Options
The plots are valid for all LFE options.
Reflection Uncertainty, All LFE Options
