Find us at www.keysight.com Page 44
Table 36. Power Sweep Range (dB) – All LFE Options (LFE Enabled)
Description Specification Typical
500 Hz to 900 Hz
--
39
900 Hz to 1 kHz
35
40
1 kHz to 10 kHz
37
40
10 kHz to 100 kHz
37
41
100 kHz to 1 MHz
37
41
1 MHz to 5 MHz
35
40
5 MHz to 10 MHz
34
38
10 MHz to 50 MHz
33
37
50 MHz to 100 MHz
33
37
Table 37. Nominal Power (Preset Power, dBm)
Description Option 200, 201, 205, 400, 401, 405 Option 219, 220, 419, 420
Preset Power
0
-5
Table 38. Power Resolution and Maximum/Minimum Settable Power, All Models and Options
Description Specification (dB) Typical (dBm)
Power Resolution
0.01
--
Maximum Settable Power
--
30
Minimum Settable Power
Option 200, 201, 205, 400, 401, 405
Option 219, 220, 419, 420
--
--
-30
-80
Find us at www.keysight.com Page 45
Table 39. 2
nd
and 3
rd
Harmonics at Max Specified Power (dBc), All Options - Typical
Listed frequency is fundamental frequency; test at max specified power.
Description 2nd Harmonic 3rd Harmonic
10 MHz to 50 MHz
1
-18
-16
50 MHz to 3.3 GHz
1
-25
-15
3.3 GHz to 13.5 GHz
-17
-19
13.5 GHz to 23.4 GHz
-60
-65
23.4 GHz to 35 GHz
-60
--
1
With an LFE option installed and LFE disabled, applied to frequencies ≤ 100 MHz. Above 100 MHz, performance is the
same for both LFE enabled or disabled. For LFE enabled performance ≤ 100 MHz, see Table 40.
Table 40. 2
nd
and 3
rd
Harmonics at Max Specified Power (dBc), All Ports, All LFE Options (LFE Enabled) - Typical
Listed frequency is fundamental frequency; test at max specified power.
Description 2nd Harmonic 3rd Harmonic
500 Hz to 900 Hz
-32
-31
900 Hz to 1 kHz
-22
-23
1 kHz to 10 kHz
-22
-23
10 kHz to 100 kHz
-22
-23
100 kHz to 1 MHz
-25
-22
1 MHz to 5 MHz
-28
-24
5 MHz to 10 MHz
-27
-22
10 MHz to 33 MHz
-28
-21
33 MHz to 50 MHz
-28
--
Find us at www.keysight.com Page 46
Table 41. Non-Harmonic Spurs
1
at Nominal Power (dBc), All Models and Options – Typical
Listed frequency is Source CW frequency, tested at 0 dBm.
Description Non-Harmonic ±600 MHz Tracking Spur
10 MHz to 1 GHz
-80
-80
1 GHz to 10 GHz
-85
-81
10 GHz to 20 GHz
-82
-75
20 GHz to 31 GHz
-80
-70
31 GHz to 50 GHz
-77
-67
50 GHz to 67 GHz
-76
-62
1
Non-harmonic spurs are negligible with Option 425 installed and LFE enabled.

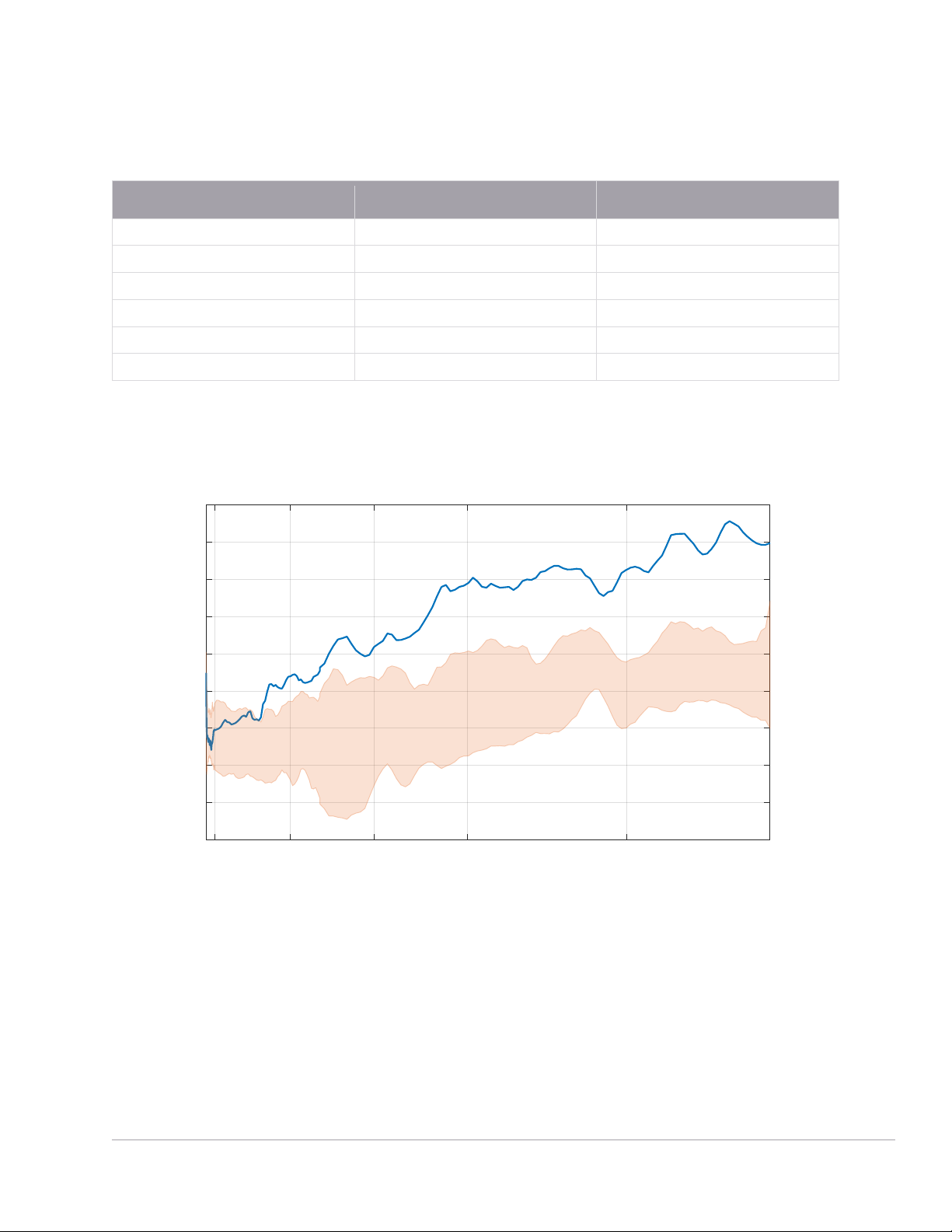

Tracking Spurs (Linear Frequency Scale)
1 GHz 10 GHz 20 GHz 31 GHz 50 GHz 67 GHz
Source Frequency
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
Spurious Level (dBc)
Tracking Spurs (Typical)
±600 MHz Offset
Expected Range of
±100 MHz, ±300 MHz, ±900 MHz,
±1200 MHz, ±2400 MHz Offsets
