Find us at www. keysi ght.com Page 46 Table 41 . Non - Harmonic Spurs 1 at Nominal P ower (dBc), All M odels and Opti ons – Typ ical Listed fr equency is Source CW freque ncy, tested at 0 dBm. Description Non - Harmonic …

100%1 / 90
Find us at www.keysight.com Page 45
Table 39. 2
nd
and 3
rd
Harmonics at Max Specified Power (dBc), All Options - Typical
Listed frequency is fundamental frequency; test at max specified power.
Description 2nd Harmonic 3rd Harmonic
10 MHz to 50 MHz
1
-18
-16
50 MHz to 3.3 GHz
1
-25
-15
3.3 GHz to 13.5 GHz
-17
-19
13.5 GHz to 23.4 GHz
-60
-65
23.4 GHz to 35 GHz
-60
--
1
With an LFE option installed and LFE disabled, applied to frequencies ≤ 100 MHz. Above 100 MHz, performance is the
same for both LFE enabled or disabled. For LFE enabled performance ≤ 100 MHz, see Table 40.
Table 40. 2
nd
and 3
rd
Harmonics at Max Specified Power (dBc), All Ports, All LFE Options (LFE Enabled) - Typical
Listed frequency is fundamental frequency; test at max specified power.
Description 2nd Harmonic 3rd Harmonic
500 Hz to 900 Hz
-32
-31
900 Hz to 1 kHz
-22
-23
1 kHz to 10 kHz
-22
-23
10 kHz to 100 kHz
-22
-23
100 kHz to 1 MHz
-25
-22
1 MHz to 5 MHz
-28
-24
5 MHz to 10 MHz
-27
-22
10 MHz to 33 MHz
-28
-21
33 MHz to 50 MHz
-28
--
Find us at www.keysight.com Page 46
Table 41. Non-Harmonic Spurs
1
at Nominal Power (dBc), All Models and Options – Typical
Listed frequency is Source CW frequency, tested at 0 dBm.
Description Non-Harmonic ±600 MHz Tracking Spur
10 MHz to 1 GHz
-80
-80
1 GHz to 10 GHz
-85
-81
10 GHz to 20 GHz
-82
-75
20 GHz to 31 GHz
-80
-70
31 GHz to 50 GHz
-77
-67
50 GHz to 67 GHz
-76
-62
1
Non-harmonic spurs are negligible with Option 425 installed and LFE enabled.
Tracking Spurs (Linear Frequency Scale)
1 GHz 10 GHz 20 GHz 31 GHz 50 GHz 67 GHz
Source Frequency
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
Spurious Level (dBc)
Tracking Spurs (Typical)
±600 MHz Offset
Expected Range of
±100 MHz, ±300 MHz, ±900 MHz,
±1200 MHz, ±2400 MHz Offsets
Find us at www.keysight.com Page 47

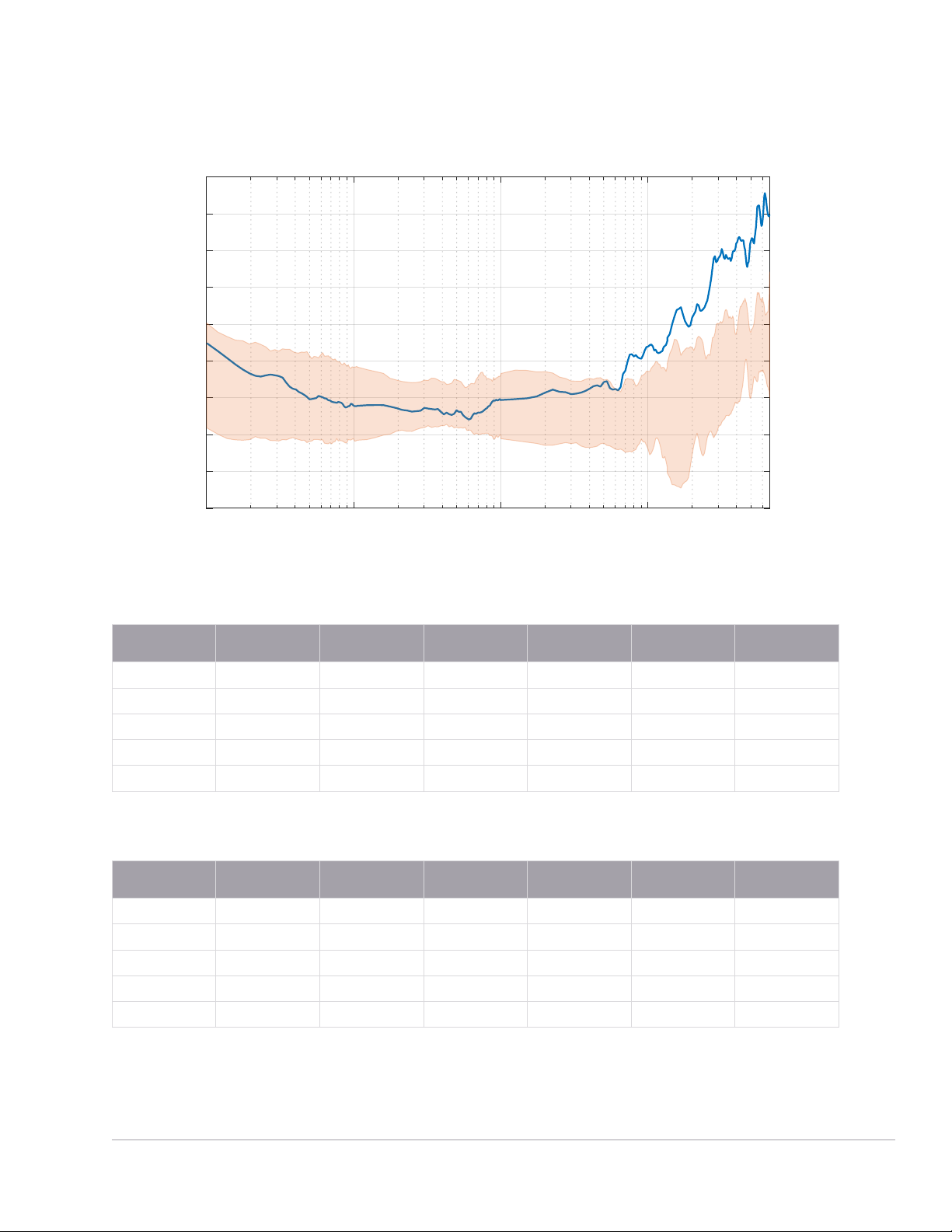

Tracking Spurs (Logarithmic Frequency Scale)
Table 42. Phase Noise (dBc/Hz), All Options, with UNY, Port 1, 3 - Typical
CW Frequency 100 Hz Offset 1 kHz Offset 10 kHz Offset 100 kHz Offset 1 MHz Offset 10 MHz Offset
1 GHz
-112
-132
-137
-143
-145
-144
5 GHz
-103
-123
-132
-135
-147
-150
10 GHz
-96
-116
-126
-130
-142
-146
20 GHz
-91
-111
-118
-123
-135
-139
26.5 GHz
-87
-106
-115
-121
-131
-135
Table 43. Phase Noise (dBc/Hz), All Options, with UNY, Port 2, 4 - Typical
CW Frequency 100 Hz Offset 1 kHz Offset 10 kHz Offset 100 kHz Offset 1 MHz Offset 10 MHz Offset
1 GHz
-111
-121
-132
-145
-149
-149
5 GHz
-103
-122
-128
-134
-145
-149
10 GHz
-96
-112
-120
-127
-140
-147
20 GHz
-90
-108
-116
-123
-134
-139
26.5 GHz
-86
-106
-114
-121
-131
-135
10 MHz 100 MHz 1 GHz 10 GHz 67 GHz
Source Frequency
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
Spurious Level (dBc)
Tracking Spurs (Typical)
±600 MHz Offset
Expected Range of
±100 MHz, ±300 MHz, ±900 MHz,
±1200 MHz, ±2400 MHz Offsets
