Find us at www.keysight.com Page 46
Table 41. Non-Harmonic Spurs
1
at Nominal Power (dBc), All Models and Options – Typical
Listed frequency is Source CW frequency, tested at 0 dBm.
Description Non-Harmonic ±600 MHz Tracking Spur
10 MHz to 1 GHz
-80
-80
1 GHz to 10 GHz
-85
-81
10 GHz to 20 GHz
-82
-75
20 GHz to 31 GHz
-80
-70
31 GHz to 50 GHz
-77
-67
50 GHz to 67 GHz
-76
-62
1
Non-harmonic spurs are negligible with Option 425 installed and LFE enabled.
Tracking Spurs (Linear Frequency Scale)
1 GHz 10 GHz 20 GHz 31 GHz 50 GHz 67 GHz
Source Frequency
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
Spurious Level (dBc)
Tracking Spurs (Typical)
±600 MHz Offset
Expected Range of
±100 MHz, ±300 MHz, ±900 MHz,
±1200 MHz, ±2400 MHz Offsets
Find us at www.keysight.com Page 47
Tracking Spurs (Logarithmic Frequency Scale)
Table 42. Phase Noise (dBc/Hz), All Options, with UNY, Port 1, 3 - Typical
CW Frequency 100 Hz Offset 1 kHz Offset 10 kHz Offset 100 kHz Offset 1 MHz Offset 10 MHz Offset
1 GHz
-112
-132
-137
-143
-145
-144
5 GHz
-103
-123
-132
-135
-147
-150
10 GHz
-96
-116
-126
-130
-142
-146
20 GHz
-91
-111
-118
-123
-135
-139
26.5 GHz
-87
-106
-115
-121
-131
-135
Table 43. Phase Noise (dBc/Hz), All Options, with UNY, Port 2, 4 - Typical
CW Frequency 100 Hz Offset 1 kHz Offset 10 kHz Offset 100 kHz Offset 1 MHz Offset 10 MHz Offset
1 GHz
-111
-121
-132
-145
-149
-149
5 GHz
-103
-122
-128
-134
-145
-149
10 GHz
-96
-112
-120
-127
-140
-147
20 GHz
-90
-108
-116
-123
-134
-139
26.5 GHz
-86
-106
-114
-121
-131
-135
10 MHz 100 MHz 1 GHz 10 GHz 67 GHz
Source Frequency
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
Spurious Level (dBc)
Tracking Spurs (Typical)
±600 MHz Offset
Expected Range of
±100 MHz, ±300 MHz, ±900 MHz,
±1200 MHz, ±2400 MHz Offsets
Find us at www.keysight.com Page 48

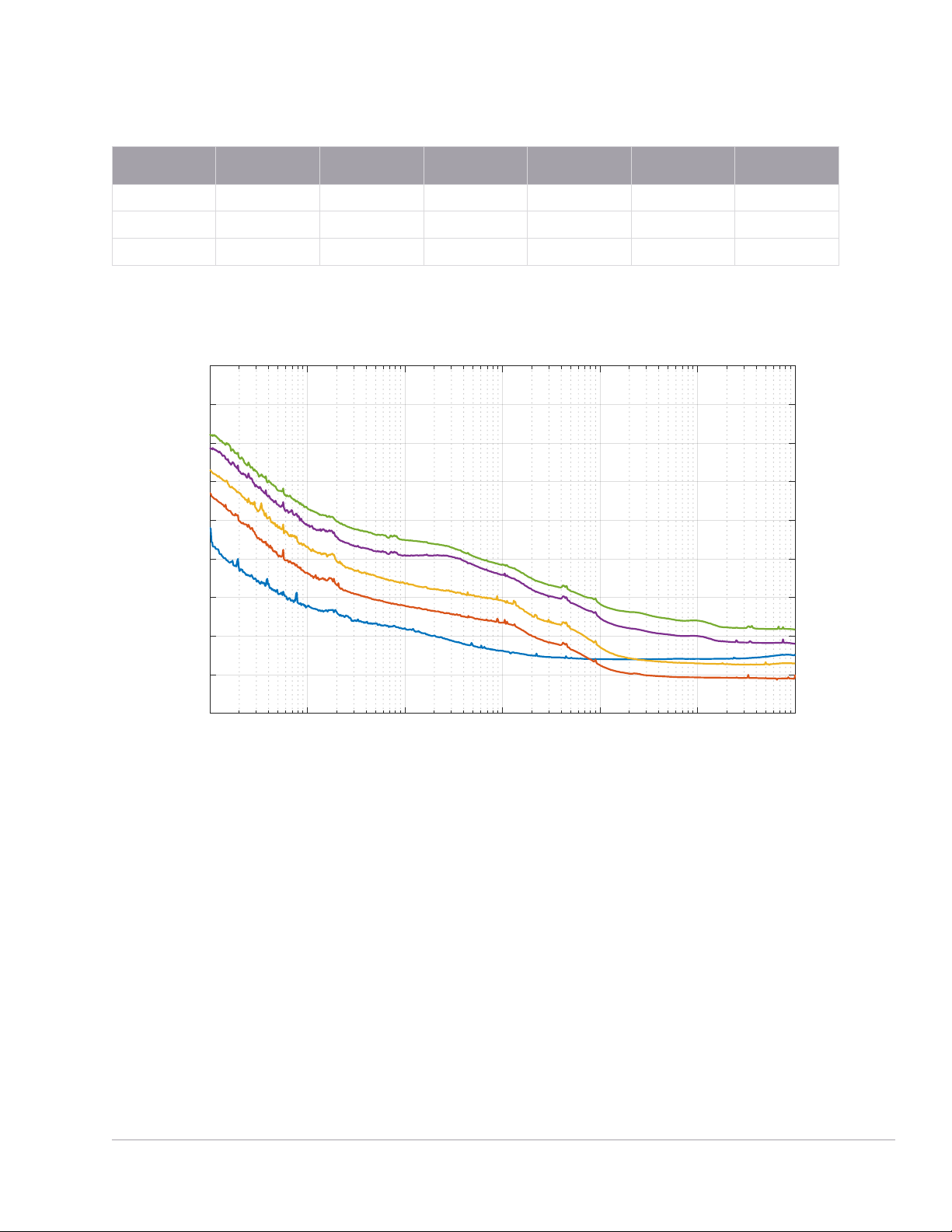

Table 44. Phase Noise (dBc/Hz), All Options, with UNY, All Ports – Supplemental Performance Data
CW Frequency 100 Hz Offset 1 kHz Offset 10 kHz Offset 100 kHz Offset 1 MHz Offset 10 MHz Offset
43.5 GHz
-82
-106
-113
-117
-129
-135
50 GHz
-81
-101
-109
-116
-127
-132
67 GHz
-81
-101
-111
-114
-126
-131
Phase Noise with Option UNY (Typical)
100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz
Offset Frequency
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
Phase Noise (dBc/Hz)
Phase Noise, with Option UNY, Port 1, 3, Src2Out1 (Typical)
CW 1 GHz
CW 5 GHz
CW 10 GHz
CW 20 GHz
CW 26.5 GHz
