Find us at www. keysi ght.com Page 63 2- Channel Residual Phase Noise Sensitivity (dBc/Hz) - Supplemental Performance Data
Find us at www.keysight.com Page 62
2-Channel Residual Noise Measurement for Non-Frequency Converting Devices
5
Table 69. 2-Channel Residual Phase Noise Sensitivity (dBc/Hz) in Best mode - Supplemental Performance Data
Input Power level: +10 dBm (+6 dBm at 40 GHz, -3 dBm at 50 GHz)
Residual Phase
Noise
Offset Frequency
Input Frequency 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 300 kHz 1 MHz 10 MHz
1 GHz
-107
-116
-127
-134
-132
-134
-131
-133
-132
10 GHz
-101
-110
-120
-126
-134
-135
-134
-138
-136
20 GHz
-99
-105
-113
-120
-128
-131
-129
-134
-135
40 GHz
-93
-101
-109
-115
-121
-124
-125
-126
-127
50 GHz
-90
-99
-106
-113
-117
-118
-119
-120
-120
Table 70. 2-Channel Residual AM Noise Sensitivity (dBc/Hz) in Best mode - Supplemental Performance Data
Input Power level: +10 dBm (+6 dBm at 40 GHz, -3 dBm at 50 GHz)
Residual AM
Noise
Offset Frequency
Input Frequency
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
300 kHz
1 MHz
10 MHz
1 GHz
-99
-106
-109
-120
-131
-133
-138
-137
-134
10 GHz
-95
-105
-113
-121
-130
-134
-136
-139
-139
20 GHz
-96
-104
-113
-120
-129
-128
-129
-136
-136
40 GHz
-98
-107
-112
-118
-120
-127
-129
-130
-131
50 GHz
-93
-102
-110
-115
-120
-121
-119
-122
-122
5 Both the phase or AM noise of the DUT input signal and that of the DUT output signal are measured.
Find us at www.keysight.com Page 63

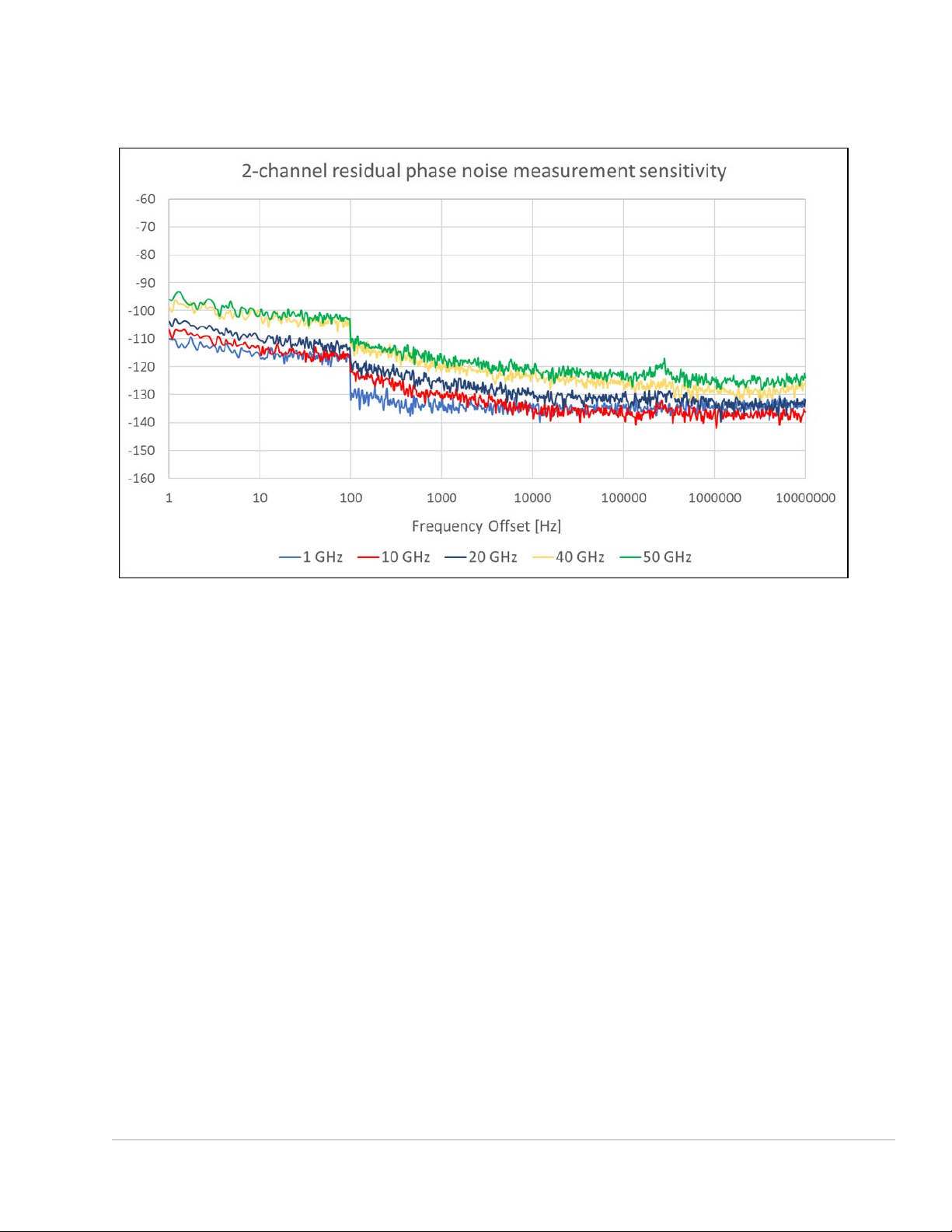

2-Channel Residual Phase Noise Sensitivity (dBc/Hz) - Supplemental Performance Data
Find us at www.keysight.com Page 64
Dynamic Accuracy
Table 71. N5227B Dynamic Accuracy - Specification
Dynamic accuracy is verified with the following measurements:
•
Compression over frequency
•
IF linearity at a single frequency of 99.6 MHz or 1.998765 GHz using a reference level of -20
dBm for an input power range of 0 to -60 dBm. For value below -60 dBm, refer to “VNA
Receiver Dynamic Accuracy Specifications and Uncertainties”.
Please download our free Uncertainty Calculator from http://www.keysight.com/find/na_calculator to
generate the curves for your PNA.

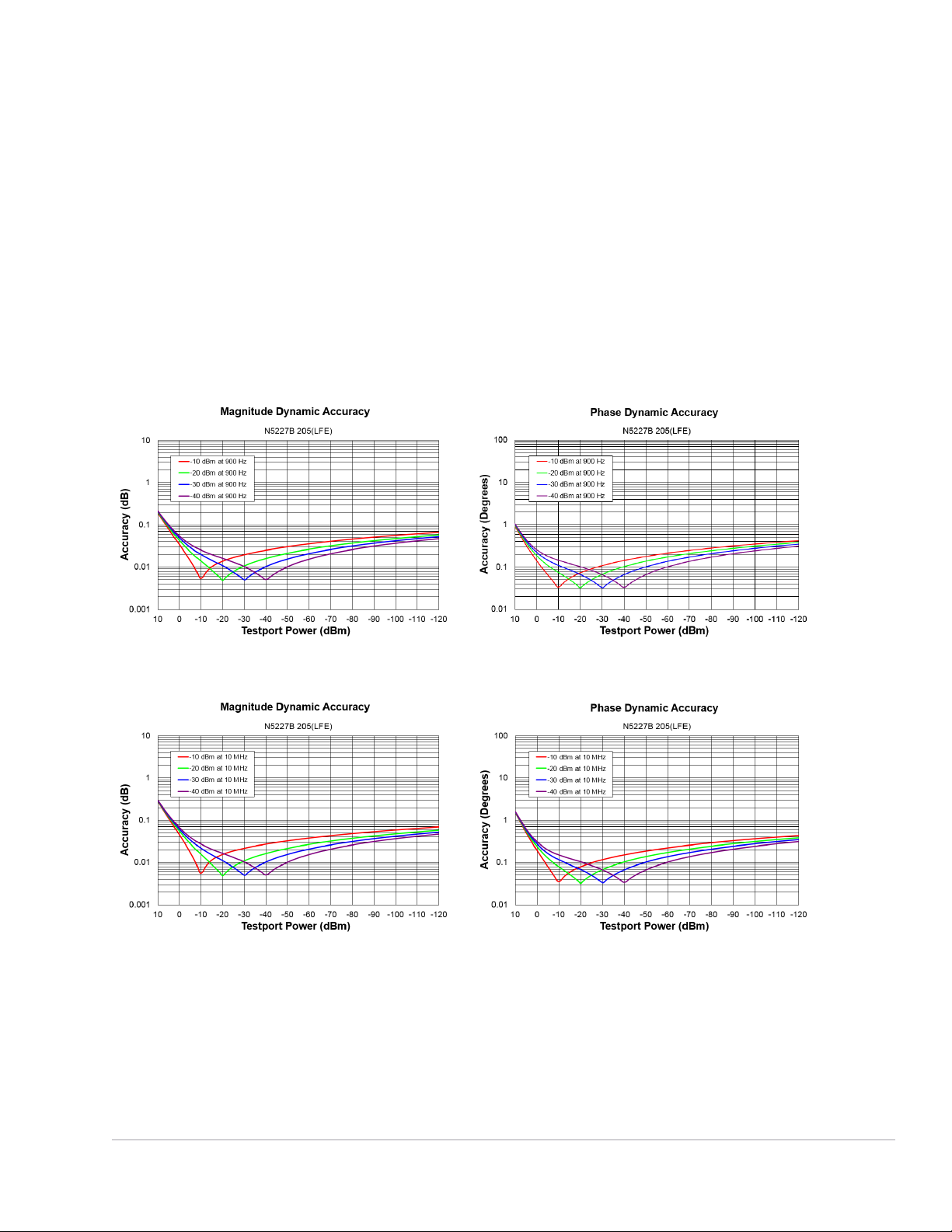

N5227B Dynamic Accuracy, 900 Hz, All LFE Options (LFE Enabled) - Specification
N5227B Dynamic Accuracy, 10 MHz, All LFE Options (LFE Enabled) - Specification
