Dynamic Accuracy
Table 71. N5227B Dynamic Accuracy - Specification
Dynamic accuracy is verified with the following measurements:
•
Compression over frequency
•
IF linearity at a single frequency of 99.6 MHz or 1.998765 GHz using a reference level of -20
dBm for an input power range of 0 to -60 dBm. For value below -60 dBm, refer to “VNA
Receiver Dynamic Accuracy Specifications and Uncertainties”.
Please download our free Uncertainty Calculator from http://www.keysight.com/find/na_calculator to
generate the curves for your PNA.
N5227B Dynamic Accuracy, 900 Hz, All LFE Options (LFE Enabled) - Specification
N5227B Dynamic Accuracy, 10 MHz, All LFE Options (LFE Enabled) - Specification
Find us at www.keysight.com Page 65
N5227B Dynamic Accuracy, 100 MHz, All LFE Options (LFE Enabled) - Specification
N5227B Dynamic Accuracy, 10 MHz - Specification
The plots are valid for all options.
N5227B Dynamic Accuracy, 50 MHz - Specification
Find us at www.keysight.com Page 66

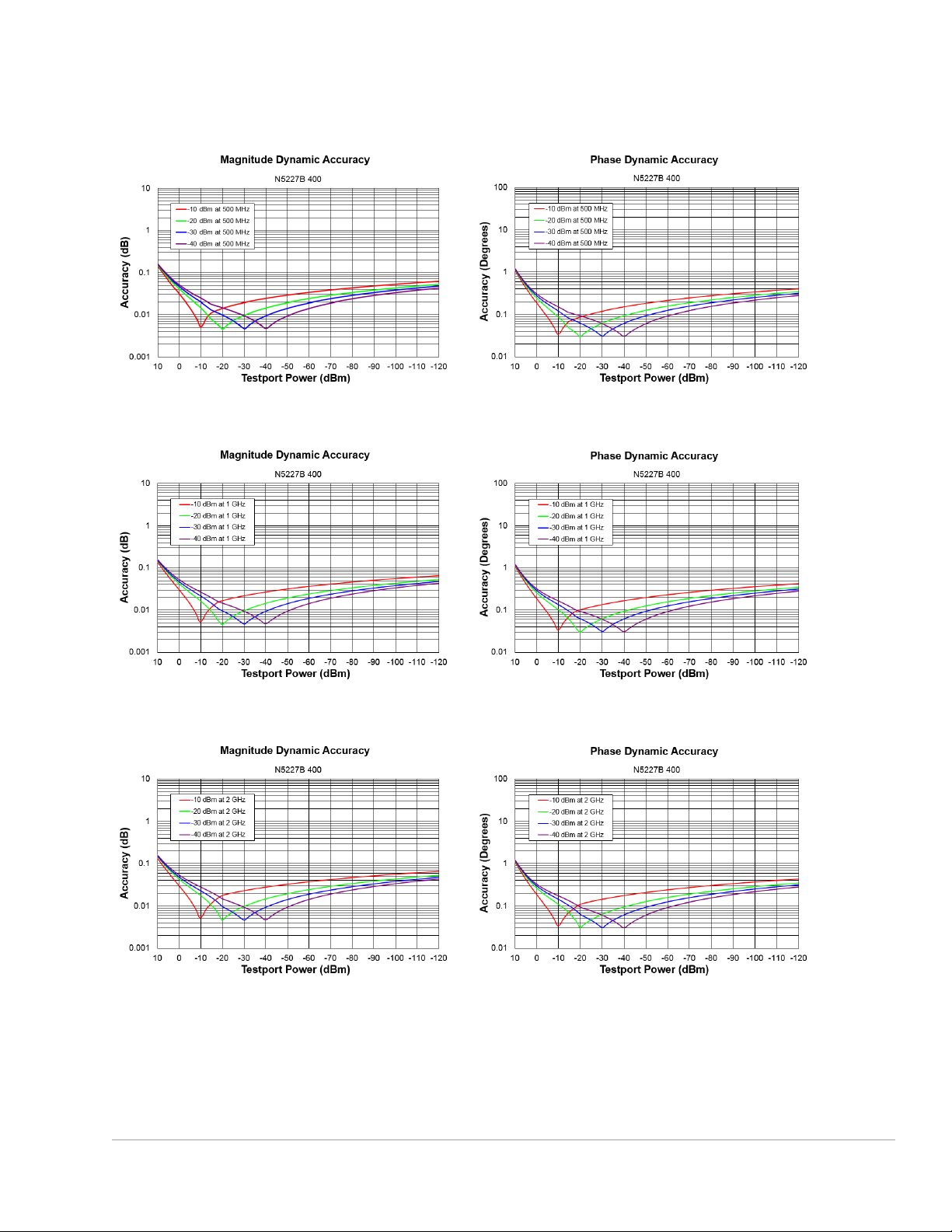

N5227B Dynamic Accuracy, 500 MHz - Specification
N5227B Dynamic Accuracy, 1 GHz - Specification
N5227B Dynamic Accuracy, 2 GHz - Specification
