Find us at www. keysi ght.com Page 85 Test Set Block Diagram s For best r eadability , use a color print er for pri nting the following graphics . Legend Figure 1 . N522 7 B Option 200 ( 2 - port base model)
Find us at www.keysight.com Page 84
Table 86. Coupler Inputs (dB) - Typical
(PORT 1, 2, 3, 4 CPLR THRU) Insertion Loss of Coupler Thru
Description Options 201, 401 Option 219, 419
10 MHz to 50 MHz
0
0
50 MHz to 500 MHz
-0.25
-0.25
500 MHz to 1 GHz
-0.5
-0.5
1 GHz to 2 GHz
-0.5
-1.0
2 GHz to 3.2 GHz
-0.75
-1.0
3.2 GHz to 10 GHz
-1.0
-1.5
10 GHz to 16 GHz
-1.2
-2.0
16 GHz to 26.5 GHz
-1.8
-2.5
26.5 GHz to 35 GHz
-2.0
-3.0
35 GHz to 40 GHz
-2.5
-4.0
40 GHz to 50 GHz
-3.0
-6.0
50 GHz to 60 GHz
-3.6
-7.2
60 GHz to 64 GHz
-3.8
-7.7
64 GHz to 67 GHz
-4.0
-8.0
67 GHz to 70 GHz
-4.2
-8.4
Table 87. Damage Level - Typical
Description RF (dBm) DC (v)
RCVR A, B, C, D IN
15
7
RCVR R1, R2, R3, R4 IN
15
7
REF 1 SOURCE OUT
15
7
REF 2, 3, 4 SOURCE OUT
30
7
PORT 1, 2, 3, 4 SOURCE OUT
27
7
PORT 1, 2, 3, 4 CPLR THRU
27 (20
1
)
40 (50
1
)
PORT 1, 2, 3, 4 CPLR ARM
30
7
1
With an LFE option installed.
Find us at www.keysight.com Page 85
Test Set Block Diagrams
For best readability, use a color printer for printing the following graphics.
Legend

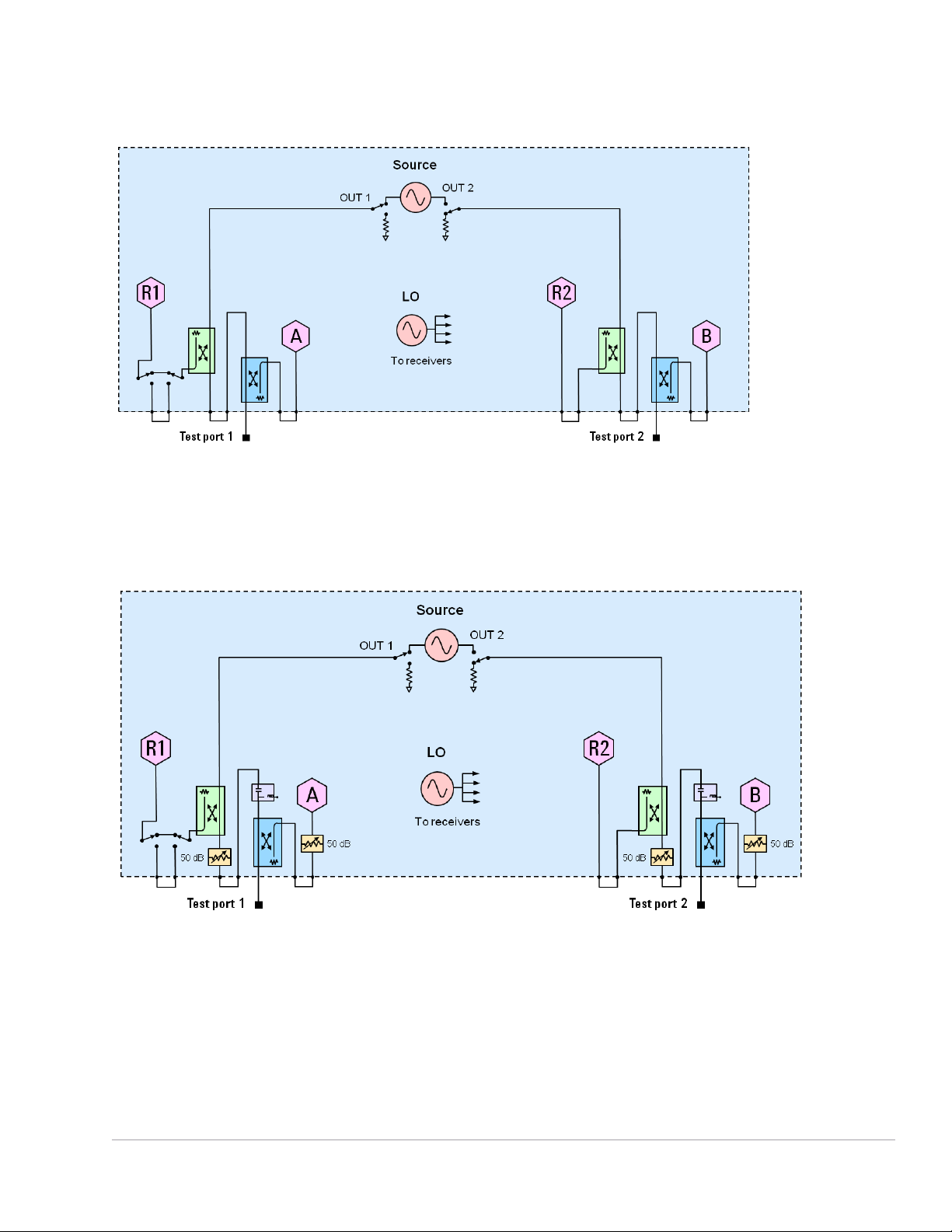

Figure 1. N5227B Option 200 (2-port base model)
Find us at www.keysight.com Page 86
To base model, adds front-panel jumpers and R1 receiver switch
Figure 2. N5227B Option 201
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
Figure 3. N5227B Option 219
