Find us at www. keysi ght.com Page 86 To base model, a d ds front - panel jum pers and R1 receiv er switch Figure 2 . N522 7B Opt ion 2 01 To base model, ad ds front - panel jum pers, R1 r eceiver switch, sour ce and rec…
Find us at www.keysight.com Page 85
Test Set Block Diagrams
For best readability, use a color printer for printing the following graphics.
Legend
Figure 1. N5227B Option 200 (2-port base model)
Find us at www.keysight.com Page 86
To base model, adds front-panel jumpers and R1 receiver switch
Figure 2. N5227B Option 201
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
Figure 3. N5227B Option 219
Find us at www.keysight.com Page 87

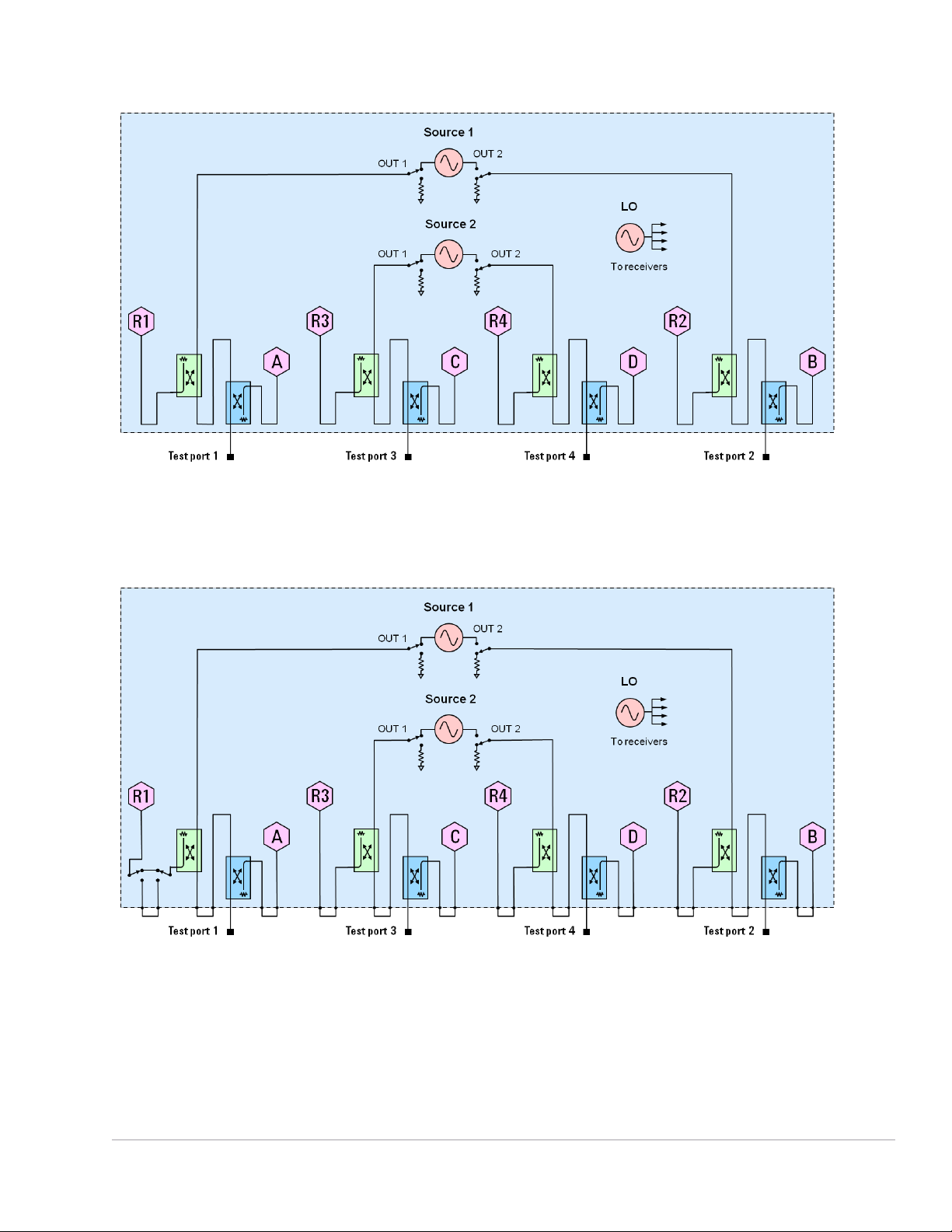

Figure 4. N5227B Option 400 (4-port base model)
To base model, adds front-panel jumpers and R1 receiver switch
Figure 5. N5227B Option 401
