Find us at www.keysight.com Page 86
To base model, adds front-panel jumpers and R1 receiver switch
Figure 2. N5227B Option 201
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
Figure 3. N5227B Option 219
Find us at www.keysight.com Page 87

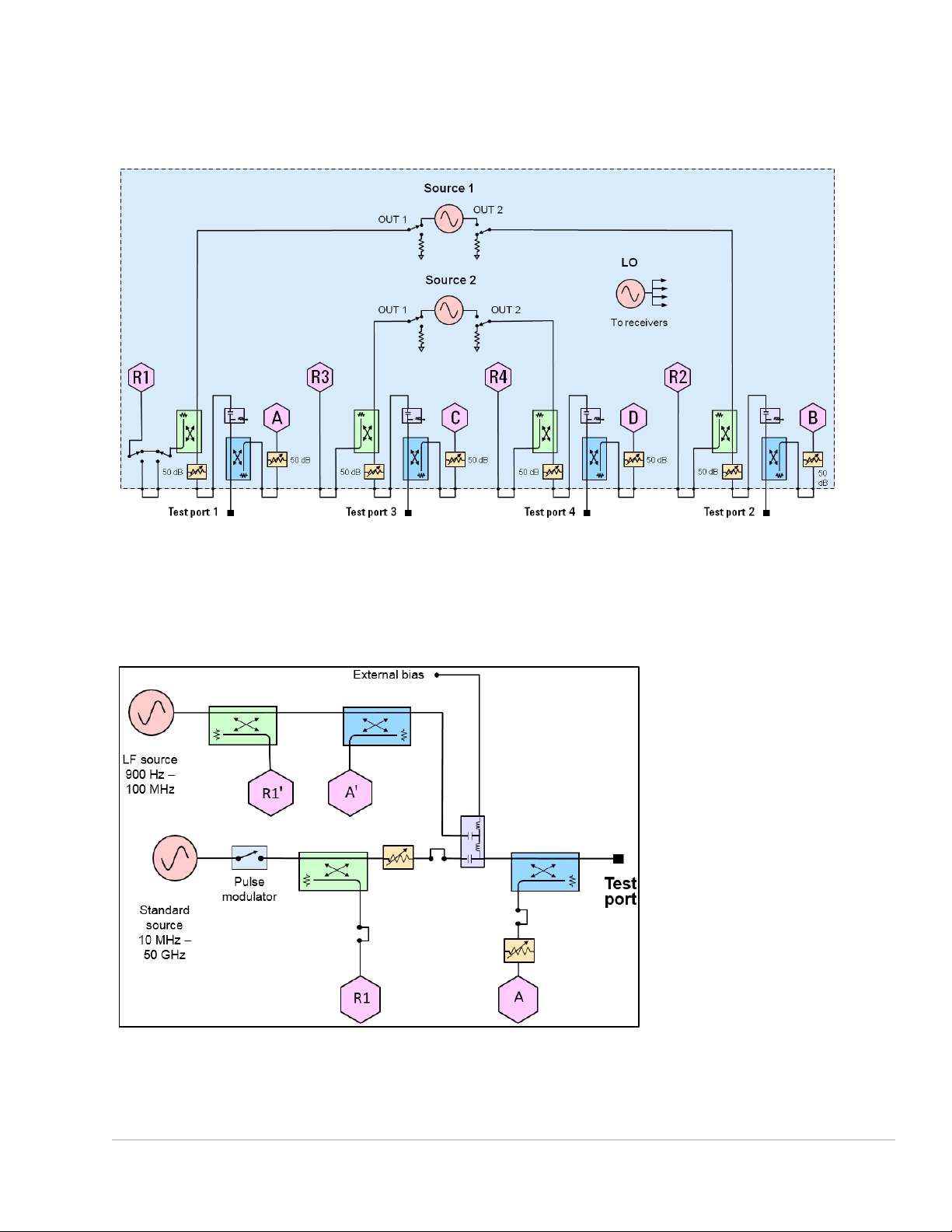

Figure 4. N5227B Option 400 (4-port base model)
To base model, adds front-panel jumpers and R1 receiver switch
Figure 5. N5227B Option 401
Find us at www.keysight.com Page 88
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
Figure 6. N5227B Option 419
The following LFE block diagram shows how the low-frequency hardware is configured for a single test
port. The other ports are configured similarly.
Figure 7. N5227B LFE Options
