3.1 Switching on the SIPLACE line Software Version SR.503.xx 04/2002 US Edition
106

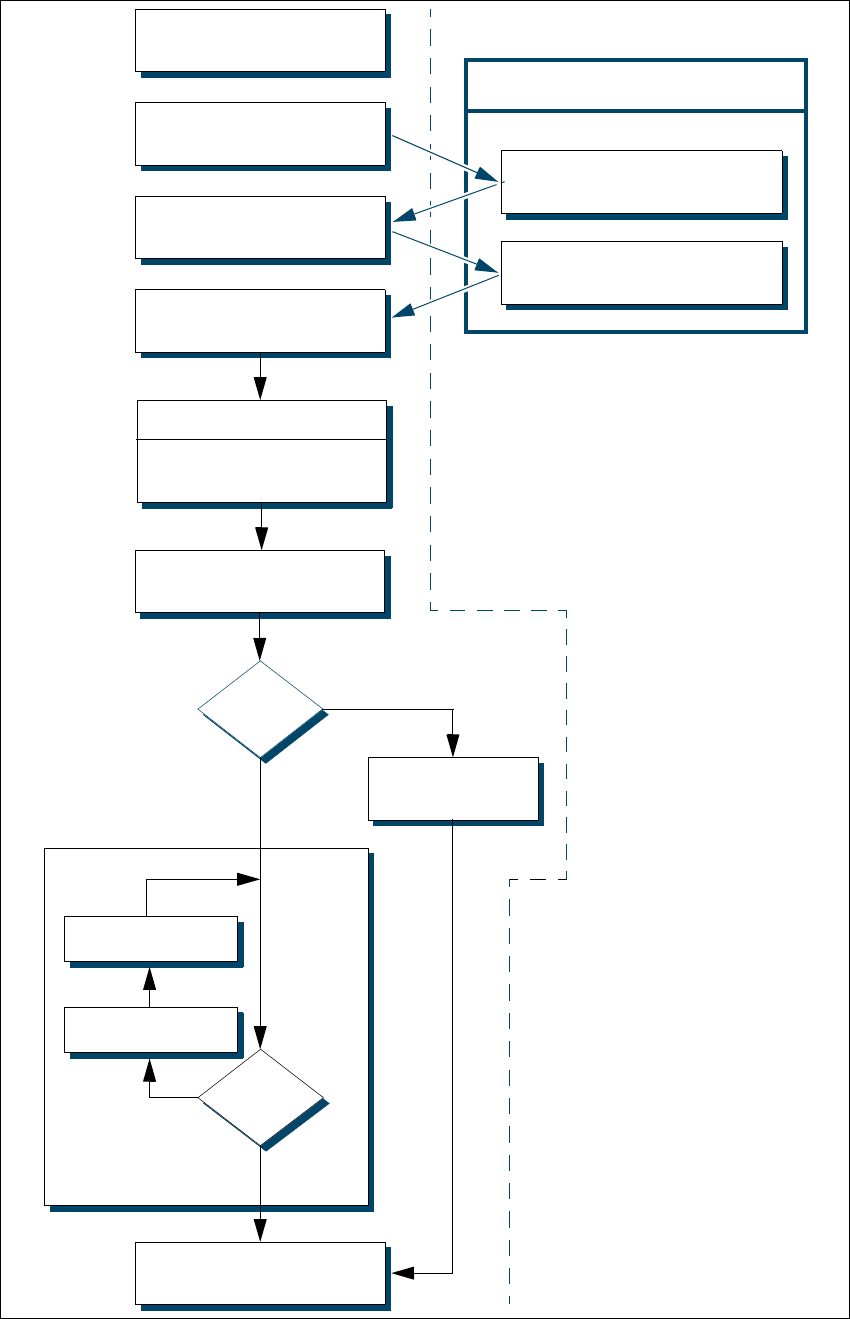

Fig. 3.1 - 3 "Switching on the SIPLACE line“ flow chart
Test set-up
Reset tracks
No
Line computer tasks
Load cluster data
Fiducials
OK?
Make settings on the machine
Set-up generator appears
Check the set-up
(insert feeder modules)
Switch on
Nozzle check
Change nozzle
configuration, if necessary
Wait for PCB
Introduce PCB
Track
errors
Yes
Abort
placement
Yes
PCB onto output conveyor
No
Station computer
Bold:
Italic:
To be carried out
by the operator
Carried out or
signaled by the
station
Confirm the
set-up generator
User Manual SIPLACE S-25 HM 3 What to do when ...
Software Version SR.503.xx 04/2002 US Edition 3.2 Switching off the SIPLACE line
107
3.2 Switching off the SIPLACE line
ATTENTION
Before you switch off the line, ALWAYS make sure that:
– All placement operations on the stations are completed.
– The Z-axis of all placement heads are in the top end position.
– None of the placement heads still contain components.
– All gantries have moved into the standby position.
– The station computers have been properly shut down.
3.2.1 Switching off the line computer (UNIX)
CAUTION
NEVER just switch off the line computer on the power switch (of the UPS).
ALWAYS shut down the operating system of the line computer with "Shutdown". Otherwise you
will almost certainly lose a lot of data and may need to reinstall the line computer software.
Æ Position the mouse at the right or lower edge of the screen.
The cursor will change into a cross.
Æ Press and hold down the left mouse button. The main menu appears.
Æ Move the mouse cursor onto the ’Shutdown’ menu item and then release the mouse button.
The following dialog box appears on screen:
Æ Click on yes. The dialog box closes and the operating system shuts down. This operation takes
around 1 minute. The following then appears:
Æ Switch off the UPS.
really shutdown?
yes no
** Safe to Power Off **
-or-
** Press Any Key to Reboot **
3 What to do when ... User Manual SIPLACE S-25 HM
3.2 Switching off the SIPLACE line Software Version SR.503.xx 04/2002 US Edition
108
3.2.2 Shutting down SIPLACE Pro (Windows NT)
Æ From the SIPLACE Pro menu bar, click on the ‘Object’ pop-up menu, then on the ‘Exit’ option.
Æ Close all other programs running on the computer.
Æ Click on ‘Exit’ from the Windows Start menu.
3.2.3 Switching off the stations
Proceed as follows to switch off the station:
Æ Terminate all placement operations.
Æ Check to make sure that the Z-axes of all placement heads are in the upper end position.
Æ Check to see if there are still components in the placement heads and remove any components
found.
Æ If necessary, move all gantries to the standby position with the help of the corresponding gantry
functions.
NOTE
All gantries are normally moved to the standby position automatically. 3
Æ Shut down the operating system on your station computer.
Æ Now switch off the station on the main switch.
3.2.4 Starting stations that remain switched on after the line computer
has been shut down
If stations remain switched on after the line computer has been shut down and the line computer
is then restarted, the computer will establish connections with these stations (synchronous
restart).
