3 What to do when ... User Manual SIPLACE S-25 HM
3.7 Changing the set-up Software Version SR.503.xx 04/2002 US Edition
116
3.7 Changing the set-up
Before changing the set-up, print out the instructions regarding changing the set-up on the printer of
the line computer as described in chapter 14 of the ’UNIX line computer’ User’s Manual.
3.7.1 What you should note when changing the feeders
Æ Handle the feeders carefully when you insert them into or remove them from the component
table. Do not allow the supporting surfaces of the feeder modules to bang against the edges
of the component table.
Æ Vacuum the supporting surfaces of the feeders and clean the surface of the component table
when necessary according to the instructions in the maintenance manual.
RISK OF INJURY
Avoid removing components from the magnetic rail of the component table with your fingers
because you may hurt yourself with tiny splinters of metal. 3
Æ Remove loose components with a short-bristled brush.
User Manual SIPLACE S-25 HM 3 What to do when ...
Software Version SR.503.xx 04/2002 US Edition 3.8 Component table, mobile
117
3.8 Component table, mobile
3.8.1 Safety instructions for docking and undocking the mobile component table
WARNING 3
Æ Never reach into the gap between the component tables and the placement system frame
while the machine is running (item 1).
Æ Always check that the component table is docked on the placement system before connecting
or disconnecting the component table power cable at the socket on the placement system
(item 2).
Æ NEVER connect the component table connecting cable to the socket on the placement system
and then operate the component table via the external compressed air control unit (item 3).

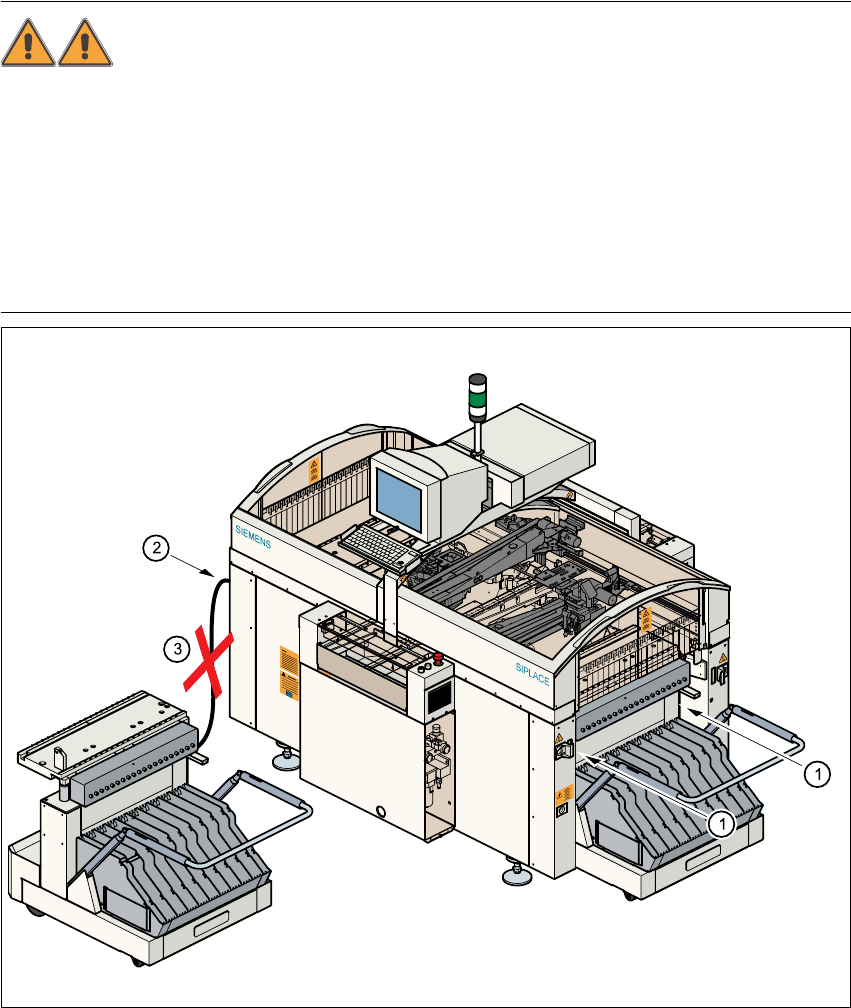

Fig. 3.8 - 1 Safety instructions for the mobile component table
3 What to do when ... User Manual SIPLACE S-25 HM
3.8 Component table, mobile Software Version SR.503.xx 04/2002 US Edition
118
3.8.2 Undocking the component table

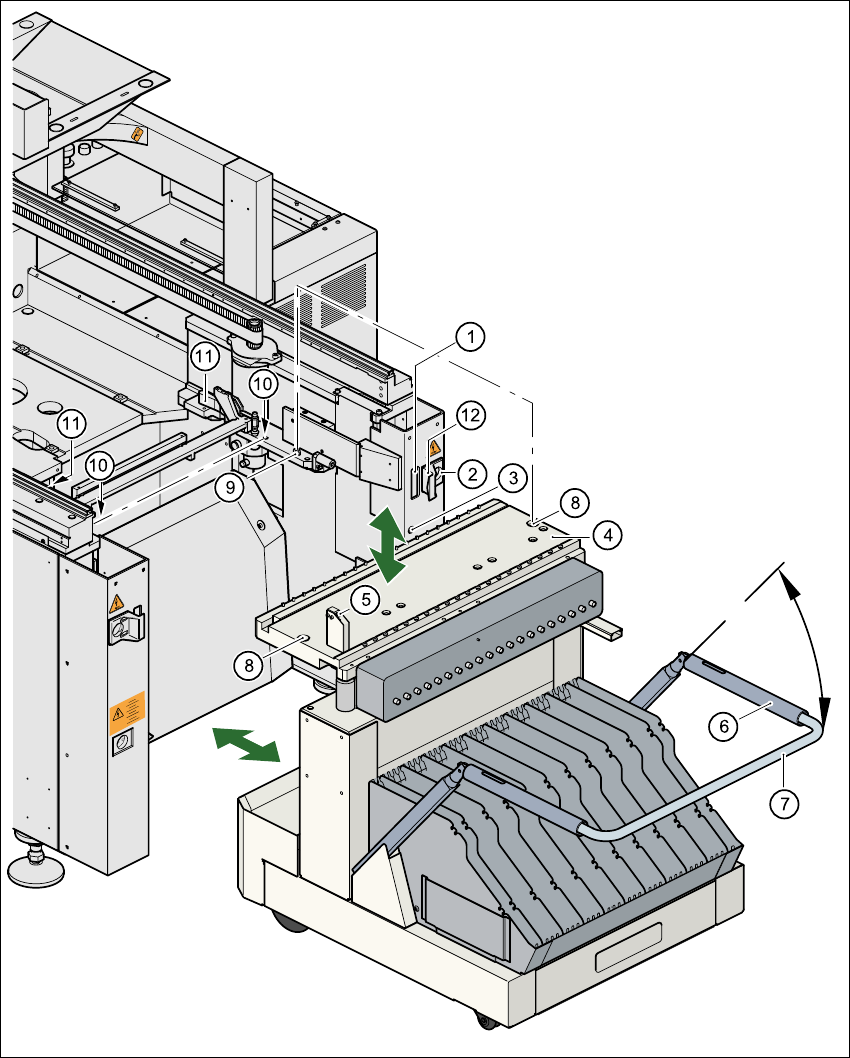

Fig. 3.8 - 2 Undocking the mobile component
