3.9.2 ... on the 8 mm S tape feeder module
Æ NEVER open the cover flap without first releasing the tension of the cover foil remover.
Æ Set the pick-up position and the spacing of the tape according to the short instructions en-
closed with each tape feeder module.
Æ Insert the tape material over the spring into the tape feeder module.
3.9.3 ... on the tape container
Æ Insert the spacers correctly (see Fig. 3.5 - 2).
Æ Use insertable shafts for large tape reels.
User Manual SIPLACE S-25 HM 3 What to do when ...
Software Version SR.503.xx 04/2002 US Edition 3.9 How to avoid track errors
123

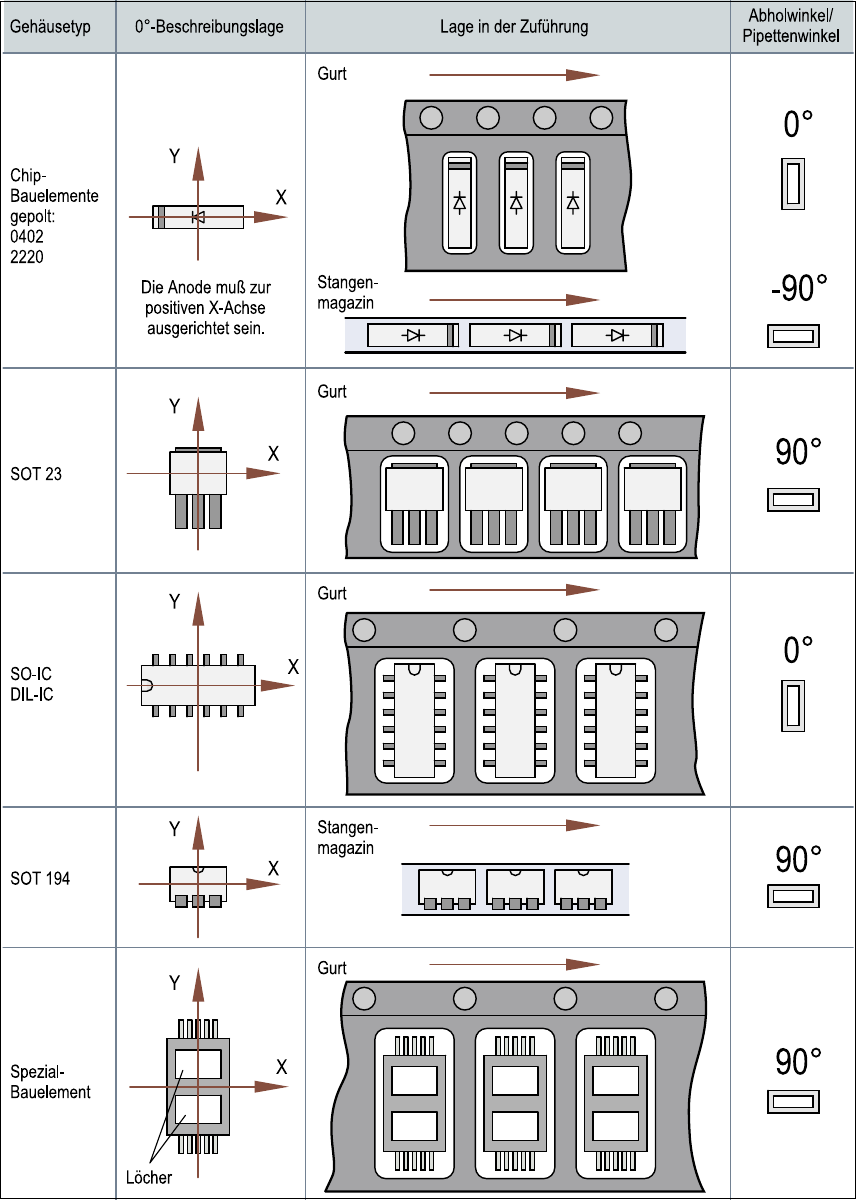

3.9.4 Component coordinate system and pick-up angle
Fig. 3.9 - 2 Position of the component and its pick-up angle
3 What to do when ... User Manual SIPLACE S-25 HM
3.10 What to note when refilling components Software Version SR.503.xx 04/2002 US Edition
124
3.10 What to note when refilling components
The online help contains information on refilling components with and without barcodes.
Æ With tape feeder modules, make sure that you always splice on a new tape early enough so
that the feeder modules do not run out of components.
Æ However, do not splice the tapes too early because if you wind the tape onto the new reel after
splicing the end of the old tape, the reel with the new tape may be over-filled. The tape could
then slip off the reel and become tangled. Under certain circumstances, this could cause pick-
up errors and prolonged down times.
Æ Always insert shafts when using large tape reels and make sure that the dividing plates are
inserted correctly (see Fig. 3.5 - 2).
3.11 Tools for the operator
All operators are to be equipped with the tools listed in the following. It is recommended to store the
tools in an appropriate container to avoid being injured when removing the tools from the container
(i.e. by a pair of tweezers).
Every operator of the machine requires:
– SMD tweezers
– A brush with short bristles to clean the component tables
– A set of small regular and Phillips-head screwdrivers
– A tape splicing clamp and splicing materials
– Scissors for splicing tape (do not use multi-purpose scissors or diagonal cutters)
– Erasers or fiberglass pens to remove fiducials
– Indelible pens for marking the tracks
– Cleaning agents (ethyl alcohol, Plexiglass cleaner, cotton wool tips, lint-free cloths,
pipe-cleaners)
– WD40 corrosion protection
– Vacuum cleaner
