User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.503.xx 04/2002 US Edition 4.2 Technical data for the feeders
137
4.2.9 Linear vibratory feeder, type 3
4

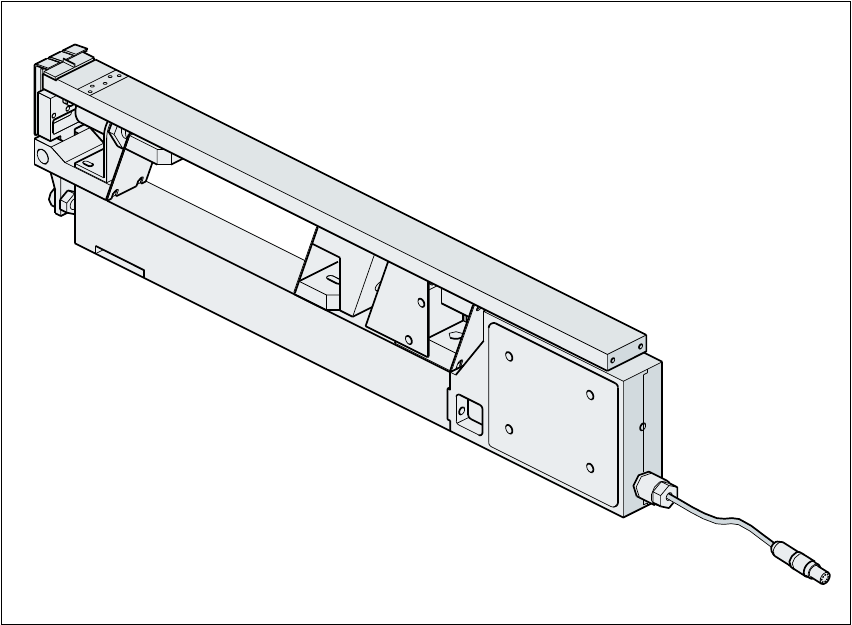

Fig. 4.2 - 9 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 30 mm
Tracks per feeder 1, 2, 3 or 6
Maximum number of feeders 2 x 20
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeders Software Version SR.503.xx 04/2002 US Edition
138
4.2.10 Bulk case feeder
4

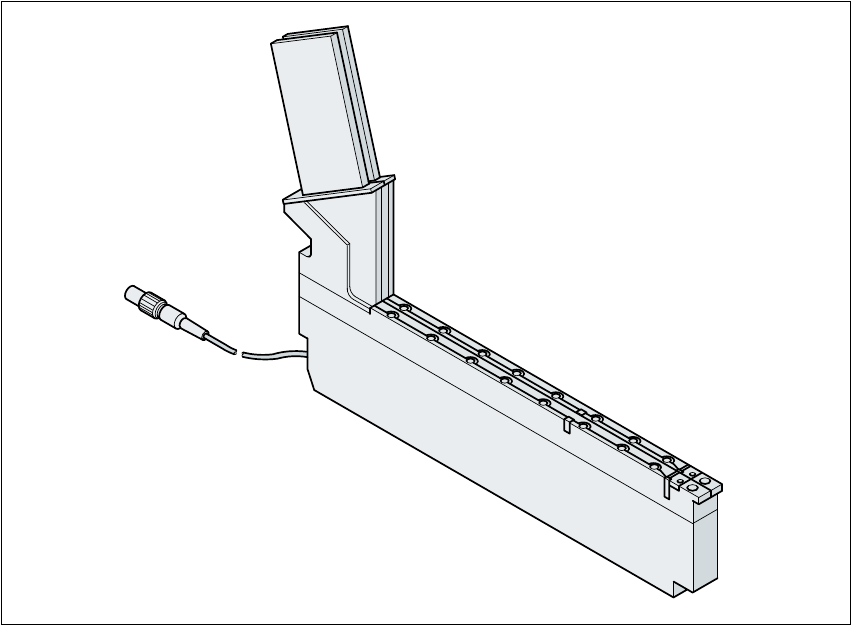

Fig. 4.2 - 10 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per feeder 2
Maximum number of feeders 2 x 20
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm high Item no. 00142321-xx
0603 / 0.80 mm high Item no. 00142322-xx
0805 / 0.45 mm high Item no. 00142323-xx
0805 / 0.60 mm high Item no. 00142324-xx
0805 / 0.85 mm high Item no. 00142325-xx
0805 / 1.25 mm high Item no. 00142326-xx
Minimelf Item no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC
Compressed air supply 2.0 bar + 0.3 bar
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.503.xx 04/2002 US Edition 4.2 Technical data for the feeders
139
4.2.11 Surftape feeder
4.2.11.1 Overview
You will need the surftape feeder to supply the components in order to insert bare dies. Feeder
versions are available for 8 mm tapes and 12 or 16 mm tapes. 4
Fig. 4.2 - 11 Surftape feeder
Item no. 00141180-xx 4
Use of the surftape feeder is described in the feeder operating instructions. 4
