User Manual SIPLAC E S-25 HM 5 Station extensions Software Vers ion SR.503.xx 04/2002 US Edition 5.7 Feeder position recognition 189 5.7 Feeder position recognition If the feede rs are equipp ed with position ing fiduc i…

5 Station extensions User Manual SIPLACE S-25 HM

5.6 PCB data transfer Software Version SR.503.xx 04/2002 US Edition

188

Æ Click on the ’Machine options’ button in the basic view.

The ’Machine options’ window opens.

Æ In the ’Options’ box, check the ’PCB data transfer’ option for the station concerned.

Æ Click on the ’OK’ button. The ’PCB data transfer’ option is now active.

PLEASE NOTE: The ’PCB data transfer’ option can only be used in conjunction with a PCB bar-

code reader. 5

User Manual SIPLACE S-25 HM 5 Station extensions

Software Version SR.503.xx 04/2002 US Edition 5.7 Feeder position recognition

189

5.7 Feeder position recognition

If the feeders are equipped with positioning fiducials, the fiducials can be measured.

If the "Conveyor position detection" function has been selected on the line computer, the function

will also appear in the Machine options. It can then be activated or deactivated at each station.

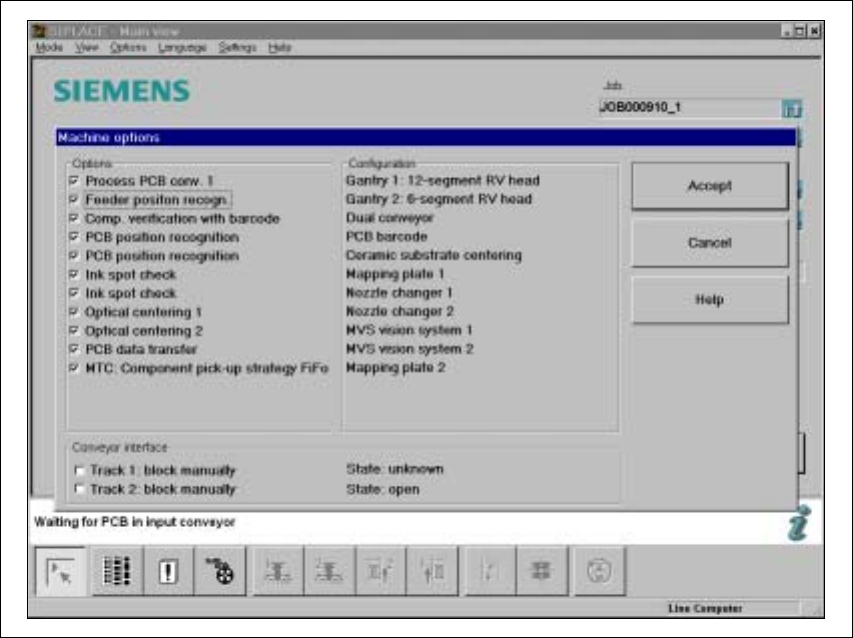

Fig. 5.7 - 1 Feeder position recognition

If a track has been entered in the cluster data, the PCB camera on the feeder will approach the

position of the centering fiducial. Any centering fiducial offset determined during the measurement

will then be assigned to this track and added to the pick-up position during the pick-up operation. 5

5 Station extensions User Manual SIPLACE S-25 HM

5.8 Fine calibration Software Version SR.503.xx 04/2002 US Edition

190

5.8 Fine calibration

5.8.1 Overview

Fine calibration involves measuring the machine’s placement offset and determining the required

correction from this value. The ‘Fine calibration’ measuring program is integrated into the SIT-

EST program, and a detailed description of the measuring procedure is given in the ‘Fine calibra-

tion’ instructions (article no. 00191655-01).

CAUTION

The SITEST program is password-protected. It must only be called up and used by SiemensDe-

matic engineers or appropriately trained personnel. 5

5.8.2 System requirements

The following system requirements must be fulfilled in order to use the fine calibration program:

Machine type S-25 HM

Station computer software version 503.xx or later

SITEST version 503.xx or later

PLEASE NOTE: 5

The fine calibration can only be carried out with the 12-segment Collect&Place head. 5

5.8.3 Measuring equipment and tools

The following are supplied as standard:

– Mapping plate (glass plate in a metal frame)

– Double-sided transparent adhesive film

– Lighting unit

– CERAM components in the feeder for the 12-segment Collect&Place head
