User Manual SIPLACE S-25 HM 5 Station extensions
Software Version SR.503.xx 04/2002 US Edition 5.8 Fine calibration
191
5.8.4 Functional description
A large number of CERAM components are placed on a glass PCB covered with adhesive film.
On the top of the CERAM components there are reference fiducials in each corner. The glass
PCB also has reference fiducials in the immediate vicinity of these component fiducials.
. 5

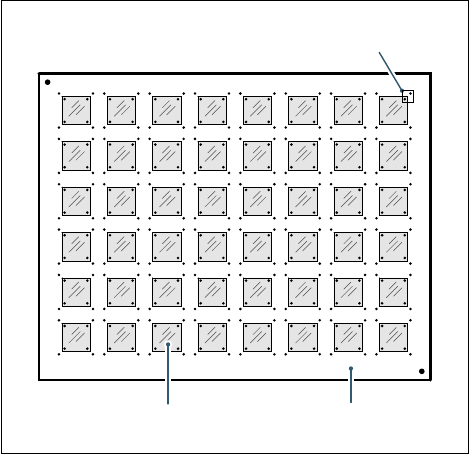

Fig. 5.8 - 1 Fine calibration principle
Immediately after placement, the PCB camera takes four sets of images of the associated refer-
ence fiducials on both PCB and component. The analysis program is then used to determine the
placement offset in the X/Y direction and the angular deviation
Φ. The offset values are used to
calculate the corrected values, which are then entered in the machine data (FK_off.ma).
5.8.5 Measuring modes
The following measurement modes can be selected:
– Measure the values for an individual placement head.
– Measure the values for all the placement heads in a placement area.
– Measure the values for the entire machine.
The measurement can be repeated as often as required, with or without replacing the CERAM
components.
Field of view of the PCB camera
Glass components Glass PCB
5 Station extensions User Manual SIPLACE S-25 HM
5.8 Fine calibration Software Version SR.503.xx 04/2002 US Edition
192
5.8.6 Displaying and analyzing measured values
The measured values can be displayed graphically on screen and saved to diskette. The following
display options are available:
– Display measured values for each individual placement head.
– Display the measured values for each segment.
– Display measured values for the X or Y direction or angular measurement.
User Manual SIPLACE S-25 HM 5 Station extensions
Software Version SR.503.xx 04/2002 US Edition 5.9 Nozzle changer for the 6-segment Collect&Place head
193
5.9 Nozzle changer for the 6-segment Collect&Place
head
5.9.1 Overview
The placement system is supplied as standard with two Collect&Place heads. As an option, a noz-
zle changer can be installed for each Collect&Place head. This enables the nozzle configuration
to be changed quickly, thus allowing the Collect&Place head to be quickly adapted to the needs
of the placement process. 5
The nozzle changer consists of at least one, and up to five magazines, each with twelve nozzle
garages (see Fig. 5.9 - 1). The magazines are seated on a common support and each magazine
is centered using two parallel pins and fixed in place with a spring hook. 5
Magazines for the 9xx and 8xx nozzle types can be set up. The magazines can be arranged as
required. 5
NOTE:
Please refer to Section 5.1 on page 159 for information on the the nozzle changer for the 12-seg-
ment Collect&Place head. 5
5.9.2 Technical data
5
Nozzle changer for the 6-segment Collect&Place head
Dimensions (length x width x height) 282 mm x 233 mm x 108 mm
Number of nozzle garages Min. 6 / max. 30
Nozzle types 8xx, 9xx
Time required to open and close the locking plate < 200 ms
Capacity of the reject bin
approx. 50 nozzles from the 9xx type,
approx. 5 nozzles from the 8xx type
Pneumatic circuit Compressed air line 5.3 bar
