1 Introduction, technical data User Manual SIPLACE S -25 HM 1.9 Dimensions and weight of the placement system Software Version SR.503.xx 04/2002 US Edition 28 1.9.3 The placem ent system’ s center of gra vity 1 Fig. 1.9 …
User Manual SIPLACE S-25 HM 1 Introduction, technical data
Software Version SR.503.xx 04/2002 US Edition 1.9 Dimensions and weight of the placement system
27
1.9 Dimensions and weight of the placement system
1.9.1 Dimensions of the placement system
1

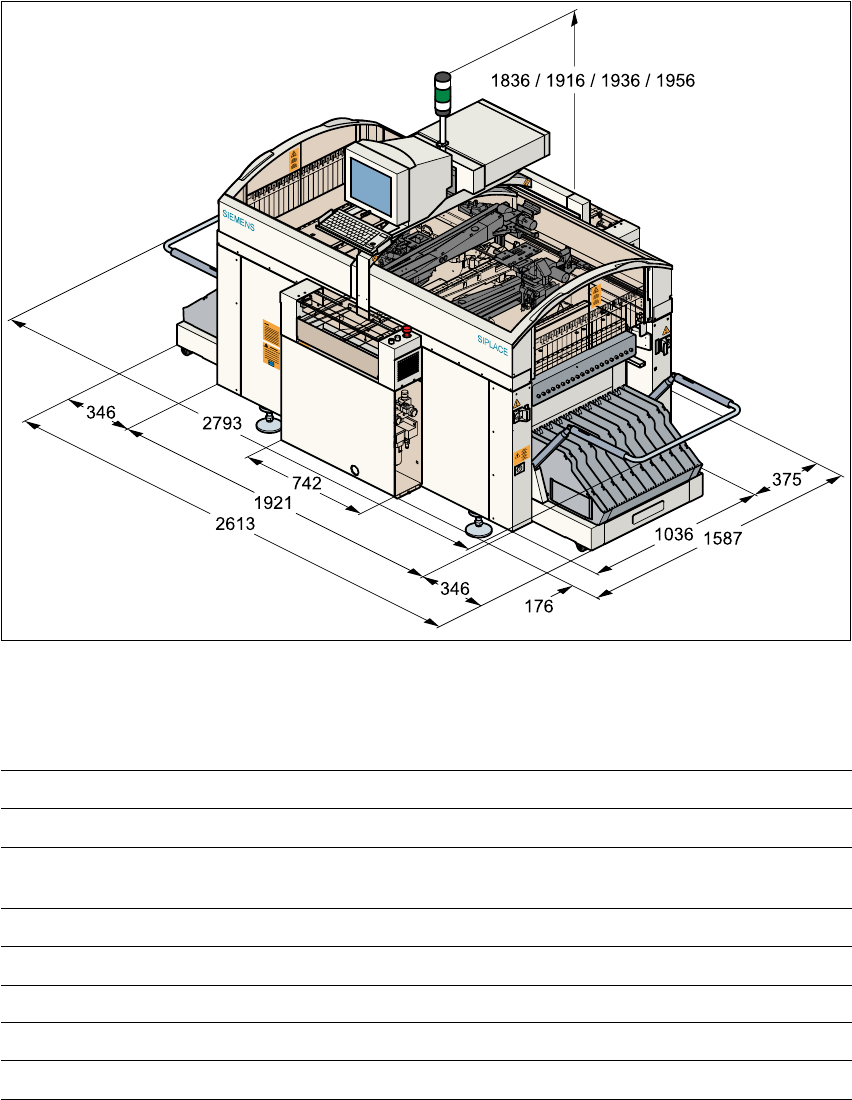

Fig. 1.9 - 1 Dimensions of the placement system in millimeters
1.9.2 Technical data - dimensions, weight
1
Length 1587 mm including conveyor belts
Width 2793 mm including brackets
Height with warning lamp 1836 mm (standard height) / 1916 mm / 1936 mm/
1956 mm SMEMA
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped approx. 2000 kg
Admissible load per unit area on foundation 1000 kg/m² min.
Load per unit area on mounting feet 4.42 kg/cm²
1 Introduction, technical data User Manual SIPLACE S-25 HM
1.9 Dimensions and weight of the placement system Software Version SR.503.xx 04/2002 US Edition
28
1.9.3 The placement system’s center of gravity
1

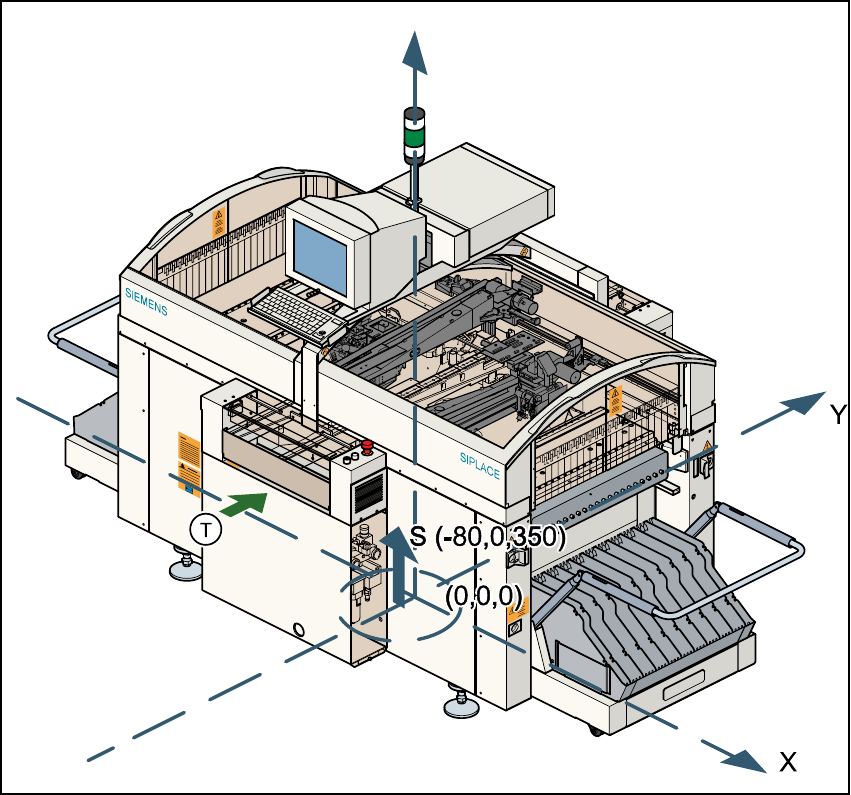

Fig. 1.9 - 2 The placement system’s center of gravity
X coordinate -80 mm 1
Y coordinate 0 mm 1
Z coordinate 350 mm high 1
T PCB transport direction 1
1
These center of gravity coordinates relate to placement systems with a PCB transport height of
830 mm. 1
User Manual SIPLACE S-25 HM 1 Introduction, technical data
Software Version SR.503.xx 04/2002 US Edition 1.10 Setting up the placement system
29
1.10 Setting up the placement system
1.10.1 Transport dimensions
1

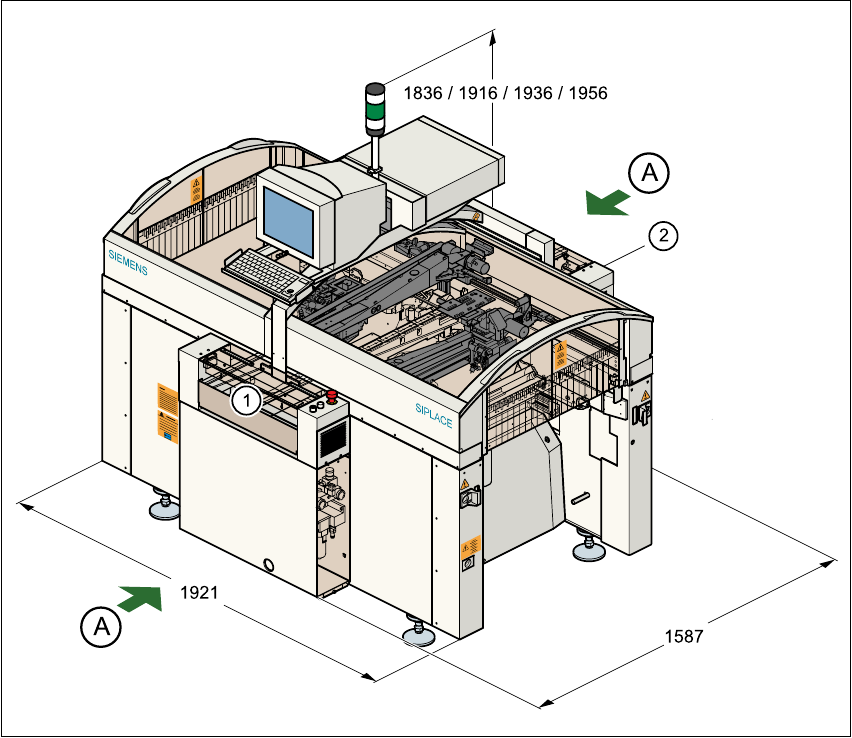

Fig. 1.10 - 1 Dimensions of the placement system during transportation and setting up
(A) Points for attaching the fork-lift truck (fork length 1600 mm) 1
(1) Input conveyor
(2) Output conveyor
1
The standard PCB conveyor height is 830 mm ±15 mm. The standard overall height of the
machine is 1836 mm. For a PCB conveyor height of 950 mm (SMEMA option), this gives an
overall height of 1956 mm.
