1 Introduction, technical data User Manual SIPLACE S-25 HM
1.11 Overview of the modules - controls Software Version SR.503.xx 04/2002 US Edition
36
1.11.4 Technical data – component barcode reader
1
1
Fig. 1.11 - 2 Component barcode reader
(1) Component barcode reader
1
Connected to Station computer
Data entry Via barcode scanner or keyboard
Number of characters Up to 40
Not permissible Barcodes starting with a 1 or 2
and less than 5 characters long
Number of barcodes Up to 6 per component
Filter for suppressing data Up to 1 per barcode
Preset code types Code 39 (standard or ASCII)
Code 2 of 5, interleaved and normal,
Code 128, UPC/EAN/JAN codes
(others available upon request)
User Manual SIPLACE S-25 HM 1 Introduction, technical data
Software Version SR.503.xx 04/2002 US Edition 1.12 Overview of the modules - gantries
37
1.12 Overview of the modules - gantries
1.12.1 Position of the gantries
1

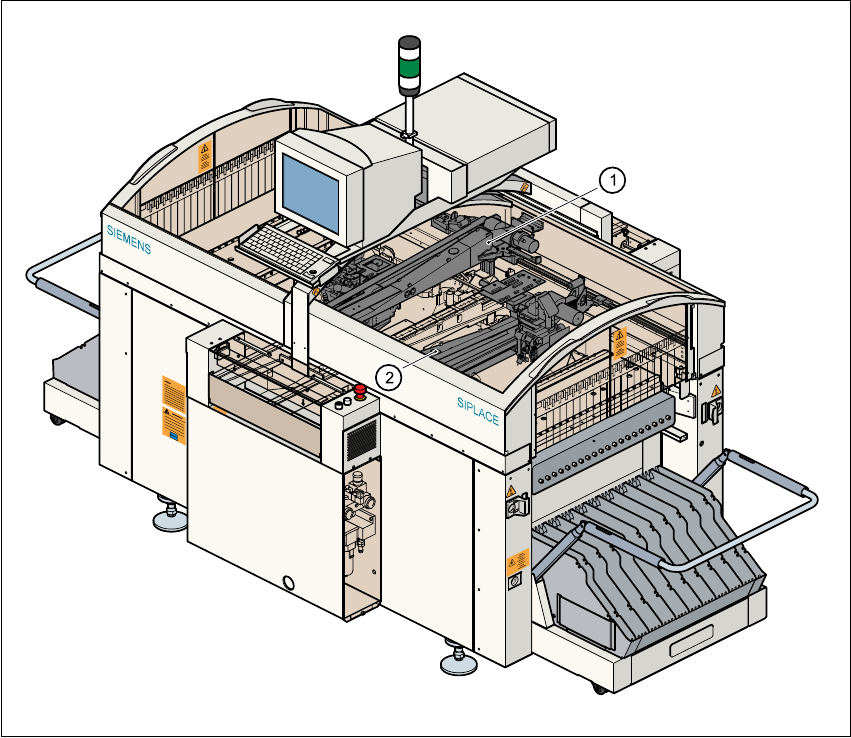

Fig. 1.12 - 1 Position of the gantries
(1) Gantry 1
(2) Gantry 2
1
The gantry system consists of two functional groups 1
–X-axis
–Y-axis
1
1 Introduction, technical data User Manual SIPLACE S-25 HM
1.12 Overview of the modules - gantries Software Version SR.503.xx 04/2002 US Edition
38
1.12.2 Structure of the X-axis
1

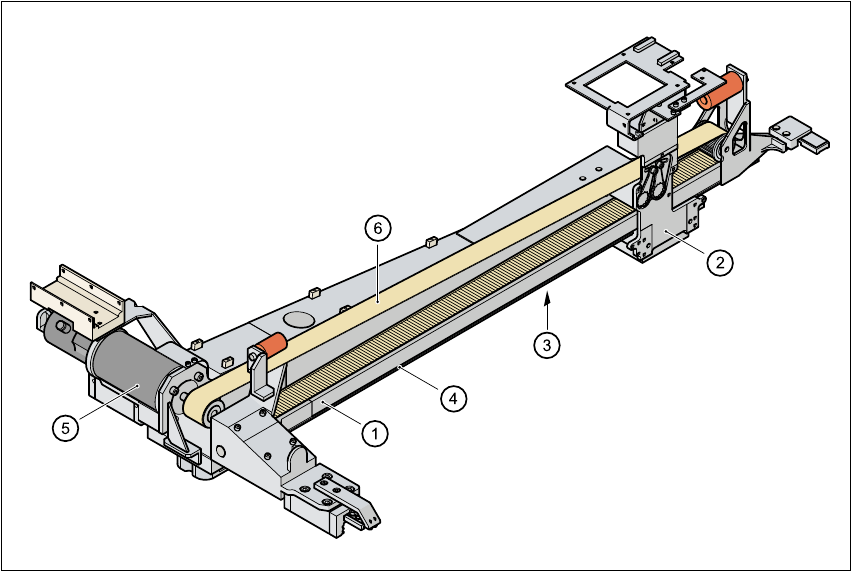

Fig. 1.12 - 2 Structure of the X-axis
The X-axis essentially consists of the following main modules: 1
– gantry arm (1)
– head mount (2)
– X-axis measuring system (3)
– X-axis guide system (4)
– X-axis three-phase AC servomotor (5)
– Toothed belt (6)
The head mount holds the following components 1
– sub-gantry camera (camera for the PCB vision module)
– head board
– measuring head for the X-axis measuring system
– Collect&Place head
