2 Operational Safety User Manual S IPLACE S-25 H M 2.1 Safety instructions Software Version SR.503.xx 04/2002 US Edition 78 W ARNING 2 Æ NEVER place y our hand in the g aps between the matrix tray ch anger and mach ine f…
User Manual SIPLACE S-25 HM 2 Operational Safety
Software Version SR.503.xx 04/2002 US Edition 2.1 Safety instructions
77
2.1.14 Safety instructions for coupling and uncoupling the matrix tray changer
2

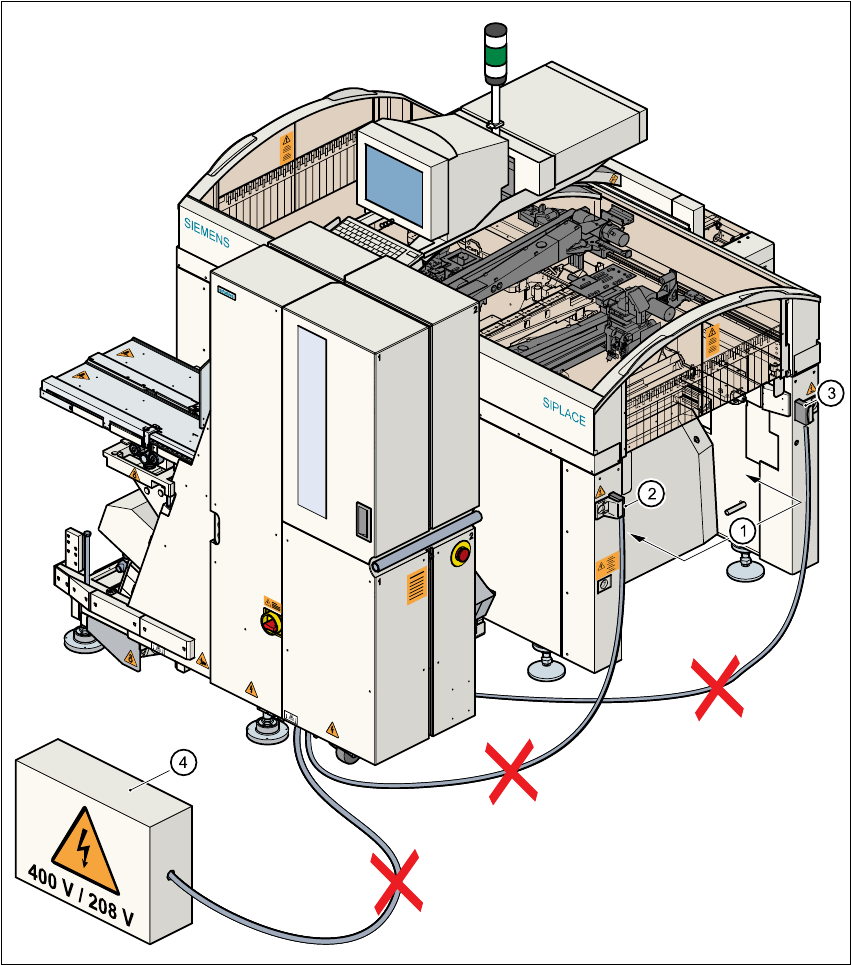

Fig. 2.1 - 13 Safety instructions for coupling and uncoupling the matrix tray changer
(1) Gap when the matrix tray changer is coupled
(2) matrix tray changer control cable
(3) Control cable for component feeder table
(4) Power supply connection
2 Operational Safety User Manual SIPLACE S-25 HM
2.1 Safety instructions Software Version SR.503.xx 04/2002 US Edition
78
WARNING 2
Æ NEVER place your hand in the gaps between the matrix tray changer and machine frame
(item 1) while the machine is running.
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
matrix tray changer control cable at the machine socket (item 2).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
control cable for the matrix tray changer’s integral component feeder table at the machine
socket (item 3).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
power cable from the external power supply (item 4).
Æ NEVER operate the matrix tray changer if it is not coupled to the machine.
User Manual SIPLACE S-25 HM 2 Operational Safety
Software Version SR.503.xx 04/2002 US Edition 2.2 Safety equipment
79
2.2 Safety equipment
2.2.1 Protective covers
2

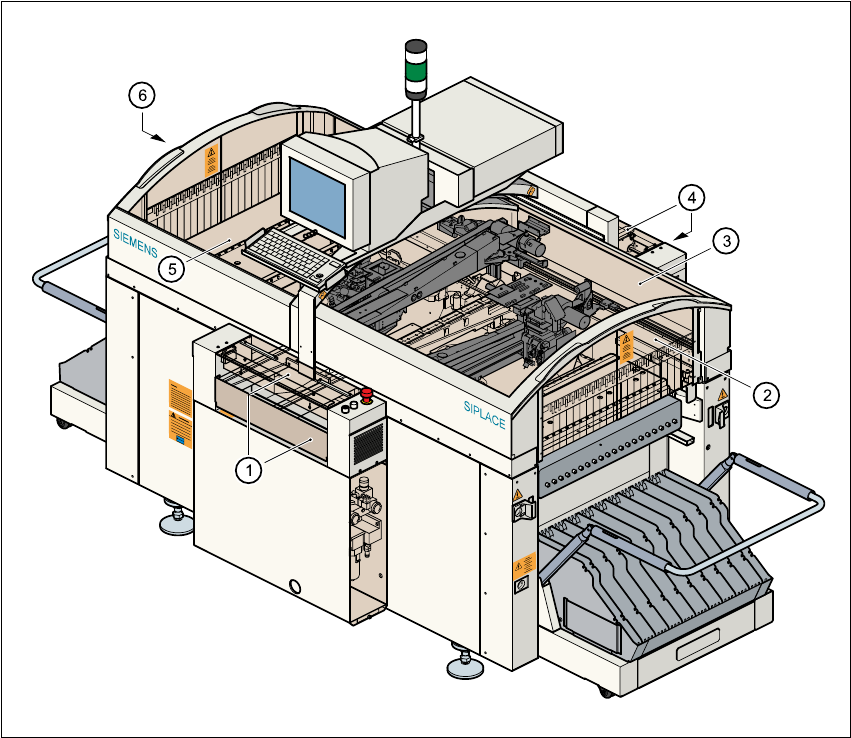

Fig. 2.2 - 1 SIPLACE S-23 HM safety equipment in the placement machine
Key to Fig. 2.2 - 1
(1) Cover and guard on the input belt
(2) Safety panels, righthand side
(3) Protective cover
(4) Cover and guard on the output conveyor
(5) Protective cover
(6) Safety panels, lefthand side
