ACT with SSW 6xx / User Manual 07/2017 Edition
37
4.1.3.2 Pass-through
If there are multiple machines in the line, the ACT plate has to be transported through single
machines either before or after the machine to be measured.
The Pass-through function can be activated and deactivated in the setup of the respective station.

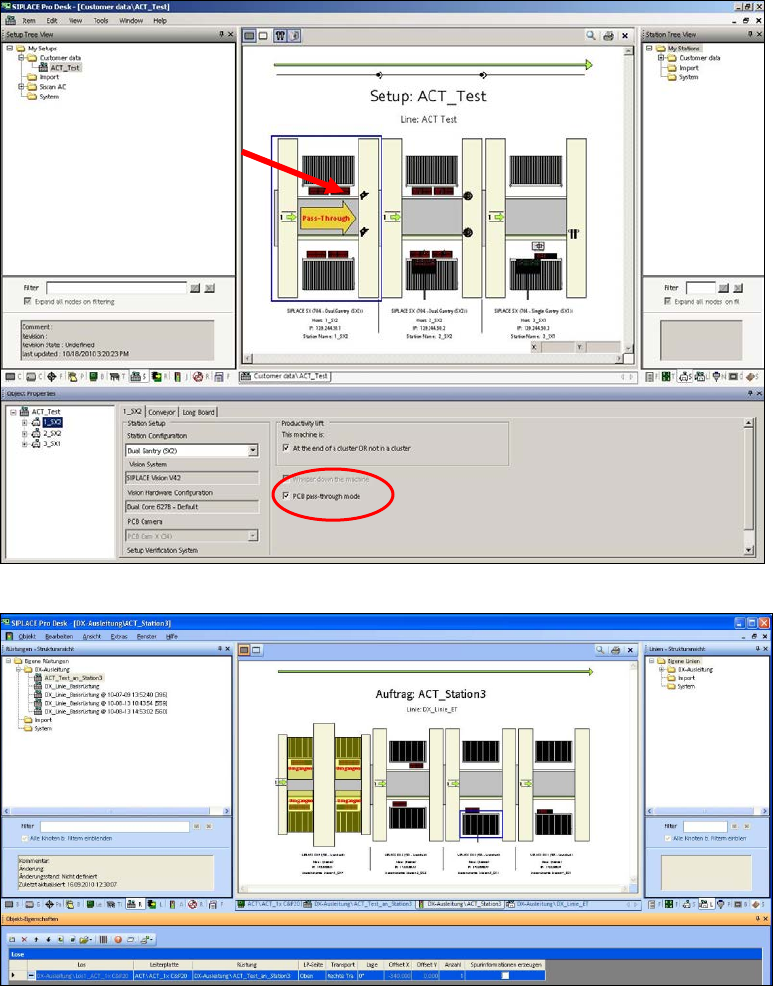

Figure 4-7: Pass-through function
Figure 4-8: Specification in Line Control GUI with DX4 in Pass-Through mode
ACT with SSW 6xx / User Manual 07/2017 Edition
38
4.2 Measuring with the ACT at the Station
You have already specified the placement and measurement programs at the station as described
in section 4.1.
► Now set up the components on the station.
4.2.1 Setting Up Components on the Component Table
► Open the machine cover.
► Place the manual waffle pack tray carrier or the feeder onto the specified tracks of the relevant
location.
Example of the position of manual waffle pack tray carrier with glass components for a
SIPLACE D3
NOTICE
The waffle pack tray carrier for the S-table needs to be at track 45 (Figure 4-9).
Therefore, the waffle pack tray occupies track 13 to 77 (Figure 4-10).

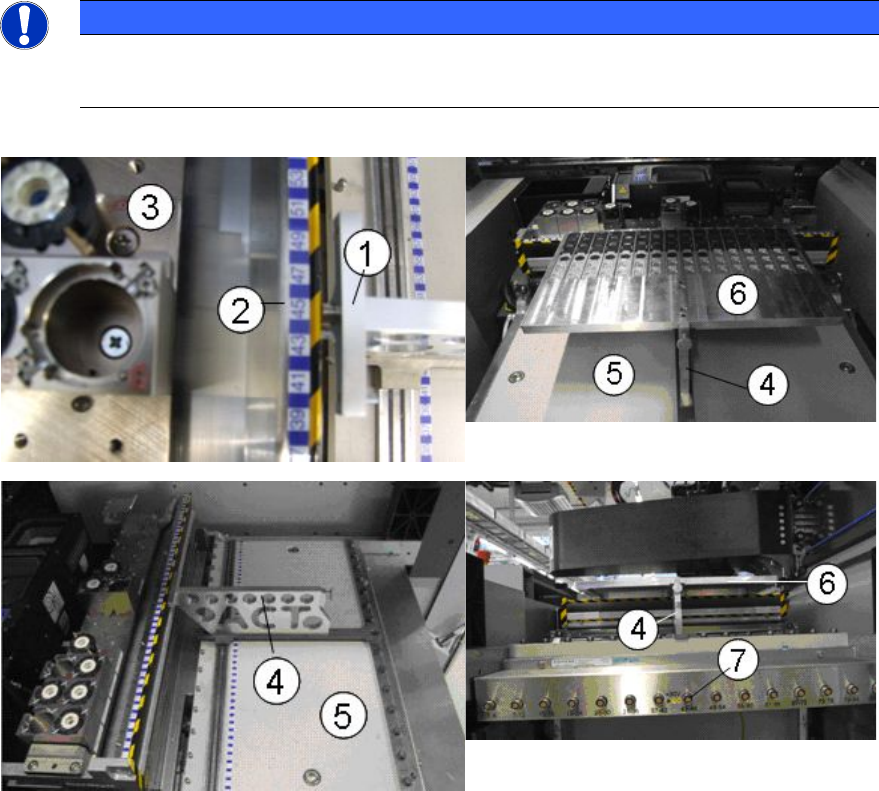

Figure 4-9: Position (track 45) of waffle pack tray carrier on S-table
ACT with SSW 6xx / User Manual 07/2017 Edition
39
Key:
(1) Waffle pack tray carrier (5) S-table
(2) Track 45 (6) Waffle pack tray
(3) Nozzle changers (7) Track 45
(4) S waffle pack tray carrier

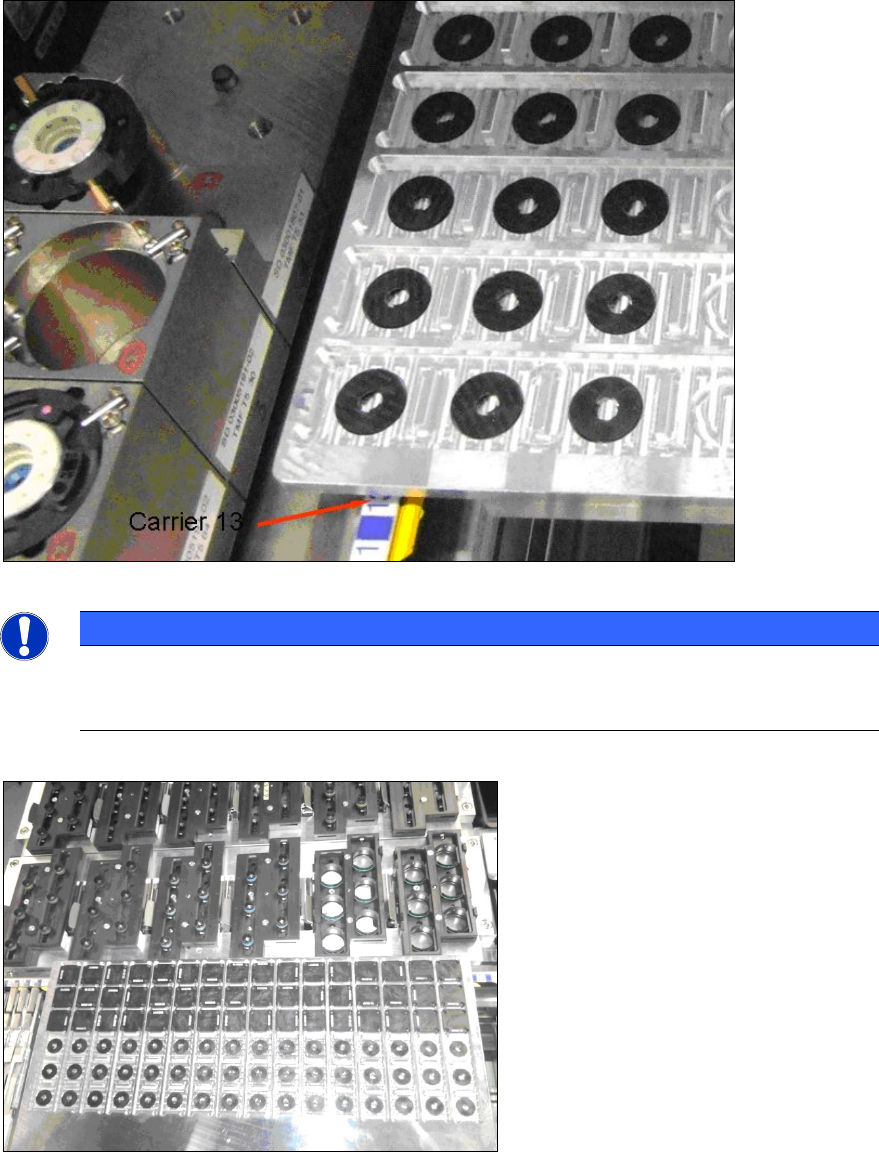

Figure 4-10: Track 13 - position of waffle pack tray on S-table
NOTICE
On X-series machines with C&P6 head and S-table the tray strikes directly against the 6-
nozzle magazines. The magazines cannot be opened without damaging them. In this
case, first change the nozzles and then place the tray on the S tray holder.
Figure 4-11: Waffle-pack tray on S-table blocks nozzle magazine
