ACT with SSW 6xx / User Manual 07/2017 Edition 25 NOTICE Import of data ► Please do not chan ge the destinatio n folder. ► Do not select the Flatt en directories check box. ► Click Next . Figure 3-22: Import of XML files…
ACT with SSW 6xx / User Manual 07/2017 Edition
24
3.2.5 Importing Tables
The "Table import" process is analogous to that for importing boards (see previous section).
► At first, proceed as described in Figure 3-20 and Figure 3-21.
Figure 3-20: XML file on the ACT CD for import of tables to SIPLACE Pro
► Select the XML file for the tables from the ACT CD.
► Click Open.
The following screen is displayed:
Figure 3-21: Import of XML file for tables in SIPLACE Pro
ACT with SSW 6xx / User Manual 07/2017 Edition
25
NOTICE
Import of data
► Please do not change the destination folder.
► Do not select the Flatten directories check box.
► Click Next.
Figure 3-22: Import of XML files for tables on SIPLACE Pro computer
► Click Next again.

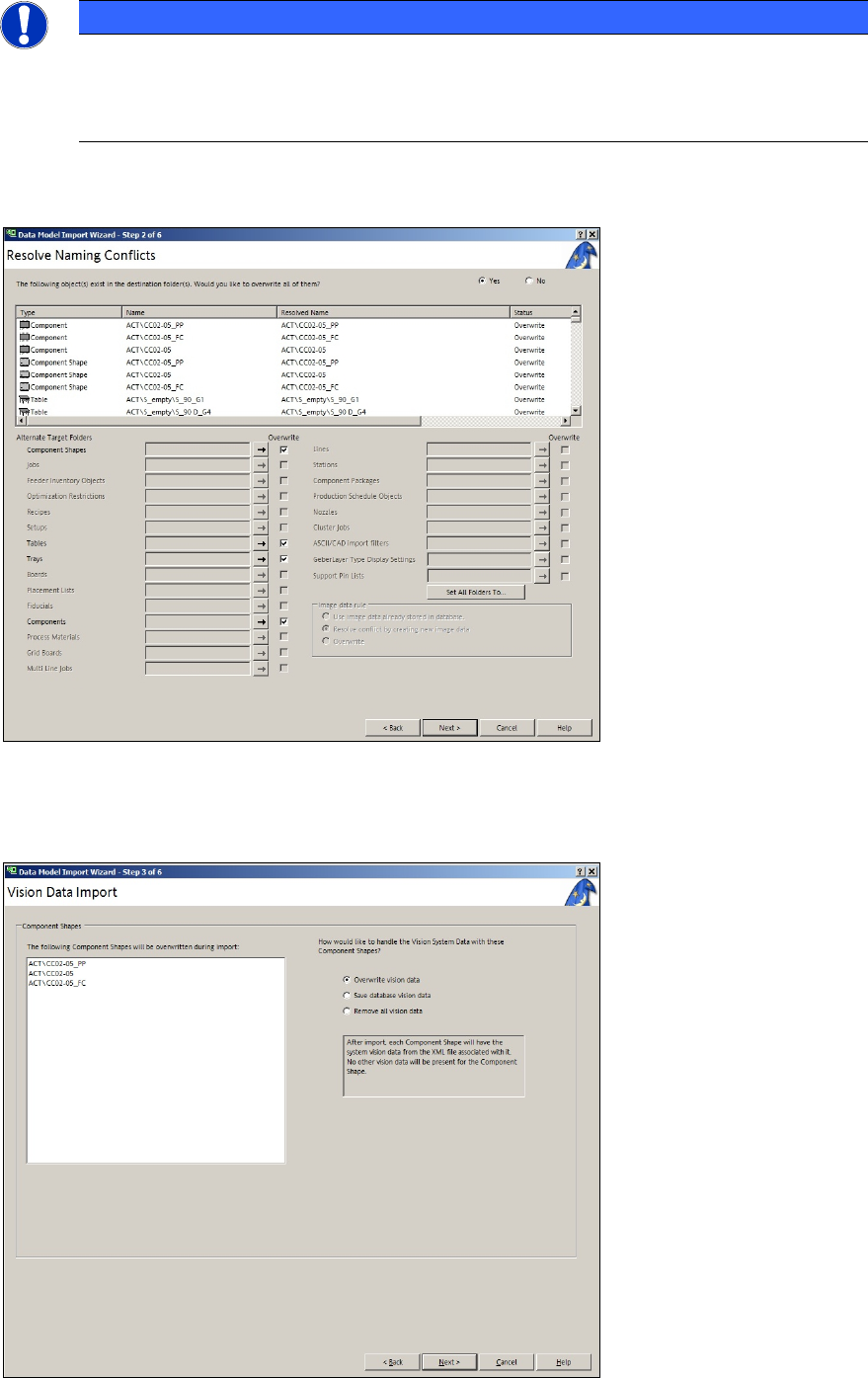

If data is to be overwritten, the following screen is displayed:
Figure 3-23: Vision data import
ACT with SSW 6xx / User Manual 07/2017 Edition
26
► Activate the Overwrite Vision data option.
► Click Next.

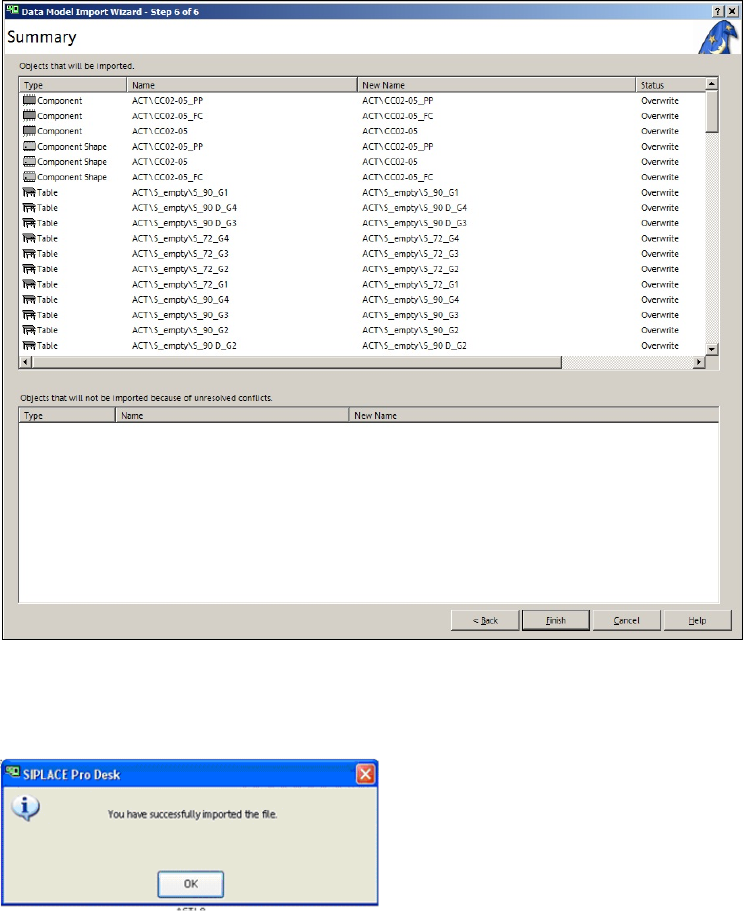

The following screen is displayed:
Figure 3-24: Import of XML files for tables in SIPLACE Pro
► Click Finish.
The following screen is displayed:
Figure 3-25: Finished import of XML files for tables in SIPLACE Pro
► Click OK.
