ACT with SSW 6xx / User Manual 07/2017 Edition 32 ► In order to furt her increase the stat istical reliability of the measurem ent result and at the same time ensure that each segment f ulfills these requi rements, you c…

ACT with SSW 6xx / User Manual 07/2017 Edition

If you use the "50 mm TWIN adapter" [03085310-01] in the outmost panel, you must extend the

board by 50 mm in SIPLACE Pro Desk!

► For this, enter 390 mm length instead of 340 mm in the board description that you want to use

(ACT_CC02-05_CPP_TH).

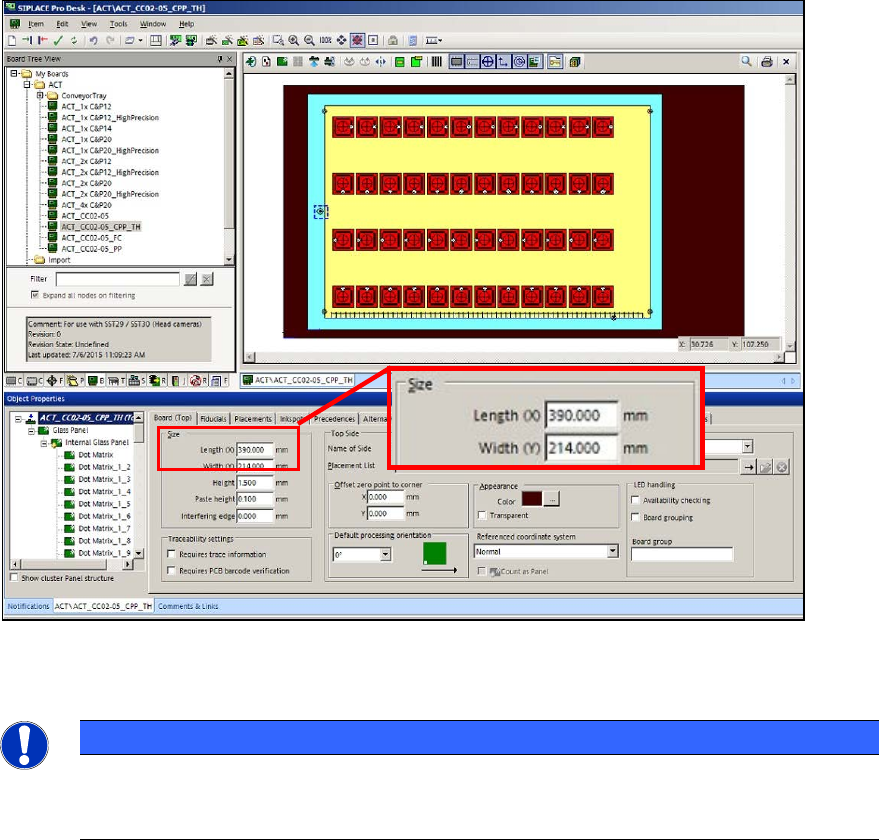

Figure 4-2: Extending the board

Twin Head – statistical reliability:

NOTICE

► When measuring a Twin Head, pay attention to the number of placed components

per segment to ensure the statistical reliability of the measurement result.

At least 20 components per segment should be placed!

With the setup of the tray with the glass components, pickup problems may occur for some

machine types because the components cannot be reached.

► Pay attention to the tray position on the component table or in the WPC.

Variants:

► By positioning the tray on the BE table, ensure that the components can be reached in X-

direction from both segments.

As soon as the two front rows are empty:

► Stop the machine.

► Refill the components at the front.

► Set the filling level to "Full" again.

This also applies for the tray setup in the WPC. The components have to be refilled in the WPC

too (e.g. WPC at the SX1/2 machine) to ensure that a sufficient number of components can be

picked up by both Twin segments.

ACT with SSW 6xx / User Manual 07/2017 Edition

► In order to further increase the statistical reliability of the measurement result and at the same

time ensure that each segment fulfills these requirements, you can check each segment

individually.

► To do this, omit one segment at a time in the Nozzle Configuration tab of the Setup Editor

in SIPLACE Pro, so that only one segment places all 48 components.

Figure 4-3: Omitting a segment

4.1.3 Creating a Setup (Assigning Tables)

► Copy an existing setup of your line.

► Replace the tables by using the prepared tables for ACT that you have already imported.(see

section 3.2.5).

Tables are available for each possible machine.

(1)

(2)

(3)

(4)

(5)

Key:

(1) S-tables with setup (4) X-tables with setup

(2) Empty S-tables (5) Empty X-tables

(3) TC = Tray Changer (WPC/MTC)

ACT with SSW 6xx / User Manual 07/2017 Edition

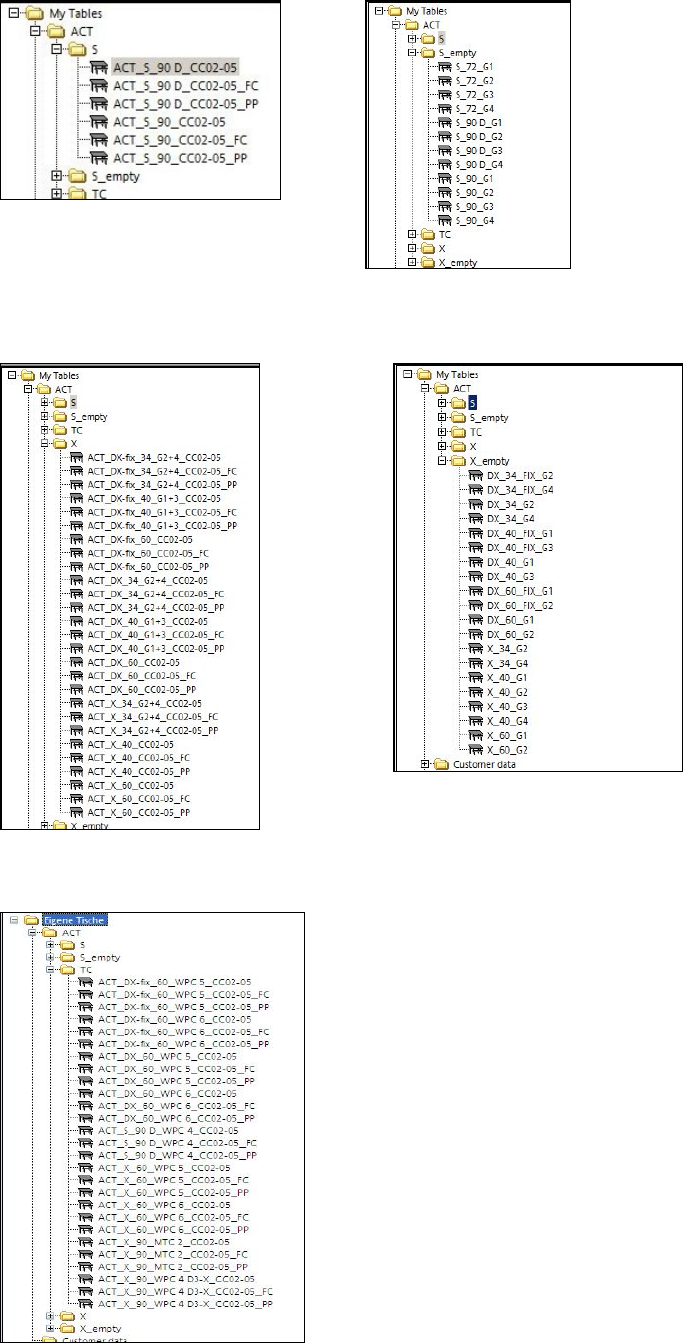

Available S-tables:

Available X-tables:

Available tables (setups) for WPC/MTC:
