ACT with SSW 6xx / User Manual 07/2017 Edition 33 Available S - tables: Available X - tables: Availab le tables (se tups) for WP C/MTC:

ACT with SSW 6xx / User Manual 07/2017 Edition

► In order to further increase the statistical reliability of the measurement result and at the same

time ensure that each segment fulfills these requirements, you can check each segment

individually.

► To do this, omit one segment at a time in the Nozzle Configuration tab of the Setup Editor

in SIPLACE Pro, so that only one segment places all 48 components.

Figure 4-3: Omitting a segment

4.1.3 Creating a Setup (Assigning Tables)

► Copy an existing setup of your line.

► Replace the tables by using the prepared tables for ACT that you have already imported.(see

section 3.2.5).

Tables are available for each possible machine.

(1)

(2)

(3)

(4)

(5)

Key:

(1) S-tables with setup (4) X-tables with setup

(2) Empty S-tables (5) Empty X-tables

(3) TC = Tray Changer (WPC/MTC)

ACT with SSW 6xx / User Manual 07/2017 Edition

Available S-tables:

Available X-tables:

Available tables (setups) for WPC/MTC:

ACT with SSW 6xx / User Manual 07/2017 Edition

► Drag the selected table to the required location.

► Use the empty tables to create a setup for ceramic pads, for instance.

NOTICE

If you create a setup with more than one table with ceramic pads, make sure that the

same component is not set-up at more than one location at the same time.

Predefined tables already exist for setting up the tray with the glass components.

NOTICE

● The X- and Y-offsets for the waffle pack trays on the tables have already been

entered! They may need to be corrected!

● The predefined Arbitrary Carrier tray holder should be left on track 21 and the ACT

X-table (Tray)holder should also be physically placed there; otherwise pickup is not

possible on all machines and with all segments (TH).

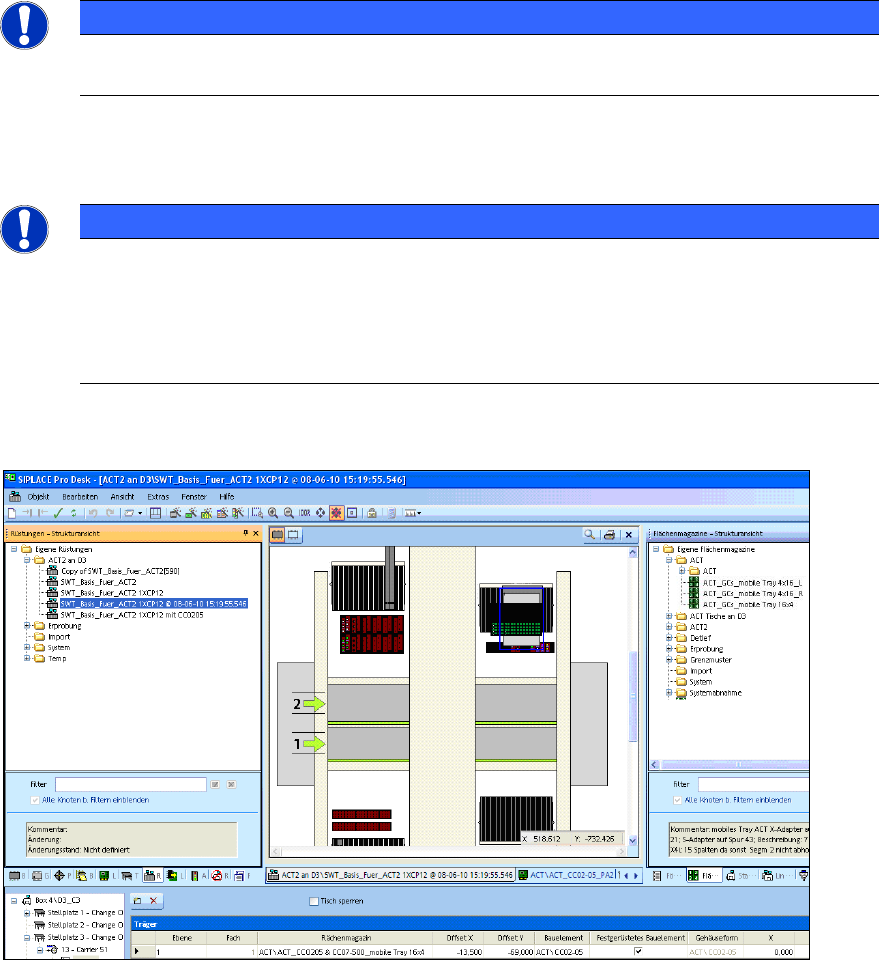

Figure 4-4 displays an example of a setup:

Figure 4-4: Setup on a D3 with Twin Head at gantry 3. Waffle pack tray with 16x4 glass components (CC02-05) on an S-

table
