Assembly and User Manual 3 Assembly Instruction Shuttle Extension Edition 06/2017 3.2 Transporting the Shuttle Ex tension 37 3.2 Transporting the Shuttle Extension Fig. 3.2 - 1 Transporting the Shuttle Extension The Sh…
3 Assembly Instruction Assembly and User Manual
3.1 Scope of Delivery Shuttle Extension Edition 06/2017
36
3.1.1 Mechanical Interface Kit
A mechanical interface kit will be used to fix Shuttle Extension into position. This mechanical in
-
terface kit consists of 2x Intermediate Ledges, 4x Interface brackets, 4x ISO4762 M8 and 8x
ISO7380-2 M8 screws. The Intermediate Ledge is mounted onto the SIPLACE TX feet, while the
Interface brackets are mounted on Shuttle Extension's body frame.

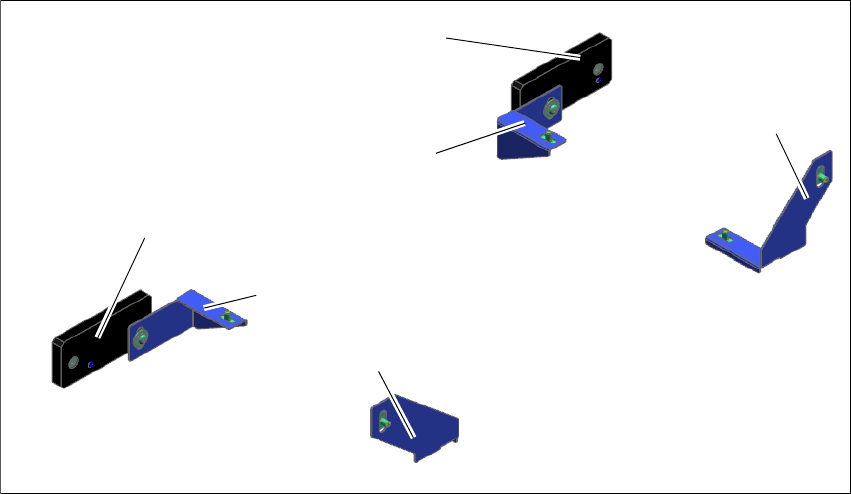

Fig. 3.1 - 1 Mechanical Interface Kit
(1) Intermediate ledge on SIPLACE TX output conveyor- right side
(2) Intermediate ledge on SIPLACE TX output conveyor- left side
(3) Interface bracket input Shuttle Extension- right side
(4) Interface bracket input Shuttle Extension - left side
(5) Interface bracket output Shuttle Extension - right side
(6) Interface bracket output Shuttle Extension - left side
(1)
(2)
(3)
(4)
(5)
(6)
Assembly and User Manual 3 Assembly Instruction
Shuttle Extension Edition 06/2017 3.2 Transporting the Shuttle Extension
37
3.2 Transporting the Shuttle Extension
Fig. 3.2 - 1 Transporting the Shuttle Extension
The Shuttle Extension may ONLY be lifted with a pallet jack on the side (A).
3.2.1 Shipping packaging and Transportation Equipment
3
(A)
Shipping packaging dimensions (L x W x H)
Pallet 1105 mm x 905 mm x 1535 mm
Weight of the Shuttle Extension when ready for dispatch
With two Shuttle Extensions
170 kg
Transportation equipment
Pallet jack with fork length 700 mm
3 Assembly Instruction Assembly and User Manual
3.3 Installation Shuttle Extension Edition 06/2017
38
3.3 Installation
3.3.1 Overview

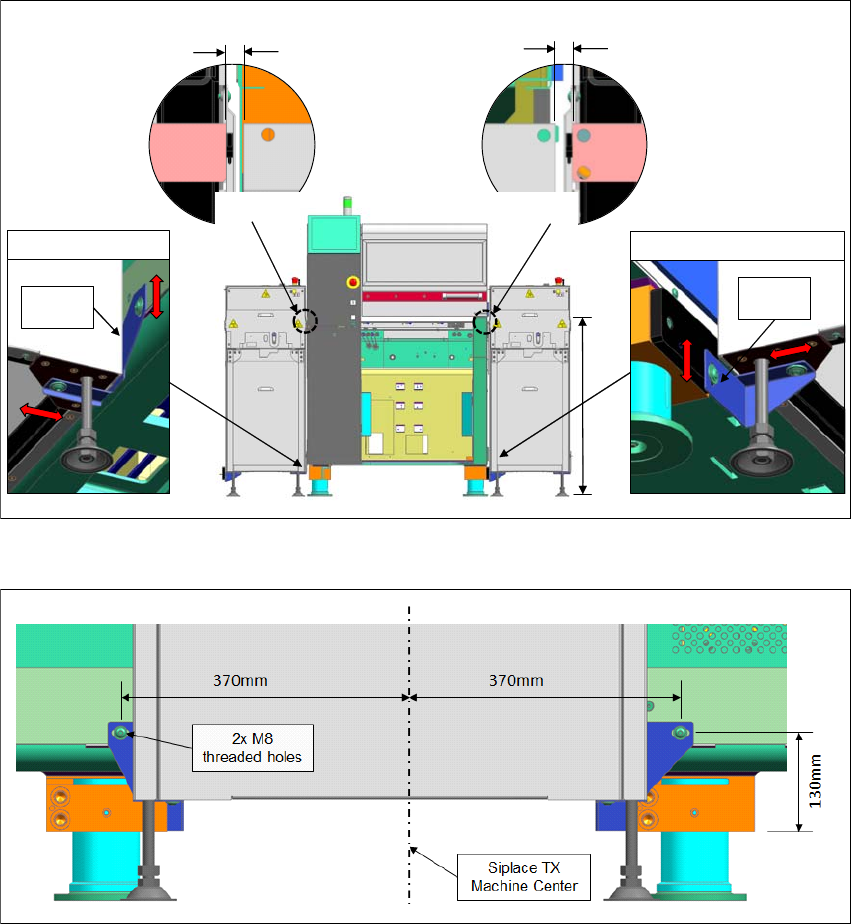

Fig. 3.3 - 1 Mounting interfaces between SIPLACE TX & Shuttle Extension
Fig. 3.3 - 2 Mounting holes position on SIPLACE TX machine frame (Input Side)
9
5
0
m
m
±
2
5
Siplace TX Input
Siplace TX Output
Interface
Bracket
Interface
Bracket
without sensor: 7.5mm – 10.5mm
with sensor: 10.5mm – 11mm
without sensor: 7.5mm – 10.5mm
with sensor: 10.5mm – 11mm
