Assembly and User Manual 6 Barcode Reader Extension Shuttle Extension Edition 06/2017 6.2 Safety 67 6.2 Safety 6.2.1 Warning Labels 6 Fig. 6.2 - 1 Shuttle Extension with Barcode Reader Extension (T) Direction of travel t…
6 Barcode Reader Extension Assembly and User Manual
6.1 Description and Overview Shuttle Extension Edition 06/2017
66
6.1.1 Footprint
6

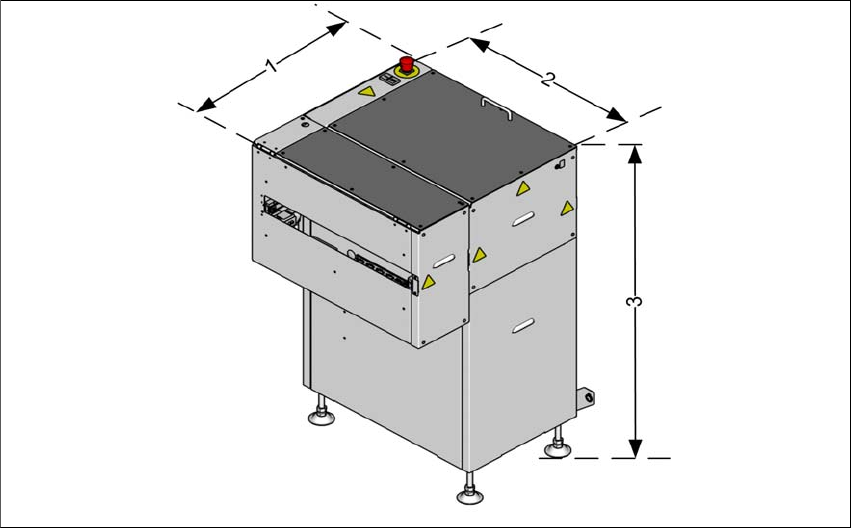

Fig. 6.1 - 2 Shuttle Extension with Barcode Reader Extension Footprint
(1) Width
(2) Length
(3) Height
Assembly and User Manual 6 Barcode Reader Extension
Shuttle Extension Edition 06/2017 6.2 Safety
67
6.2 Safety
6.2.1 Warning Labels
6
Fig. 6.2 - 1 Shuttle Extension with Barcode Reader Extension
(T) Direction of travel to SIPLACE TX input conveyor
(1) Barcode Reader Extension on Shuttle Extension
Item W 203, item no. 03009342-xx (on both sides)
W 203
W 203
(1)
6 Barcode Reader Extension Assembly and User Manual
6.2 Safety Shuttle Extension Edition 06/2017
68
6.2.1.1 Warning label W 203
6
W 203 in fig. 6.2 - 1, page 67, item no. 03009342-01
(Quantity per Barcode Reader Extension: 2)
6.2.2 Classification of Optical Systems
6
6
6
6
Danger of crushing
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the Shuttle Extension - Barcode Reader
Extension while it is running.
Do not reach into the inside of the neighboring Shuttle
Extension.
PLEASE NOTE
Laser class 1
The barcode readers used has bright LEDs fitted. These are classified as laser class 1,
according to
DIN EN 60825-1-2014-05.
Do not look into beam!
