Assembly and User Manual 6 Barcode Reader Extension Shuttle Extension Edition 06/2017 6.4 Assembly Instruction 71 6.4 Assembly Instruction 6.4.1 Step 1 In order to mount barcode r eader extension kit onto th e Shuttle Ex…
6 Barcode Reader Extension Assembly and User Manual
6.3 Scope of Delivery Shuttle Extension Edition 06/2017
70
6.3.2 Shuttle Extensions Loose Parts
– Barrel plug d24.8 D31.5 LDPE natural [Item. No.: 03154892-0101
6
6

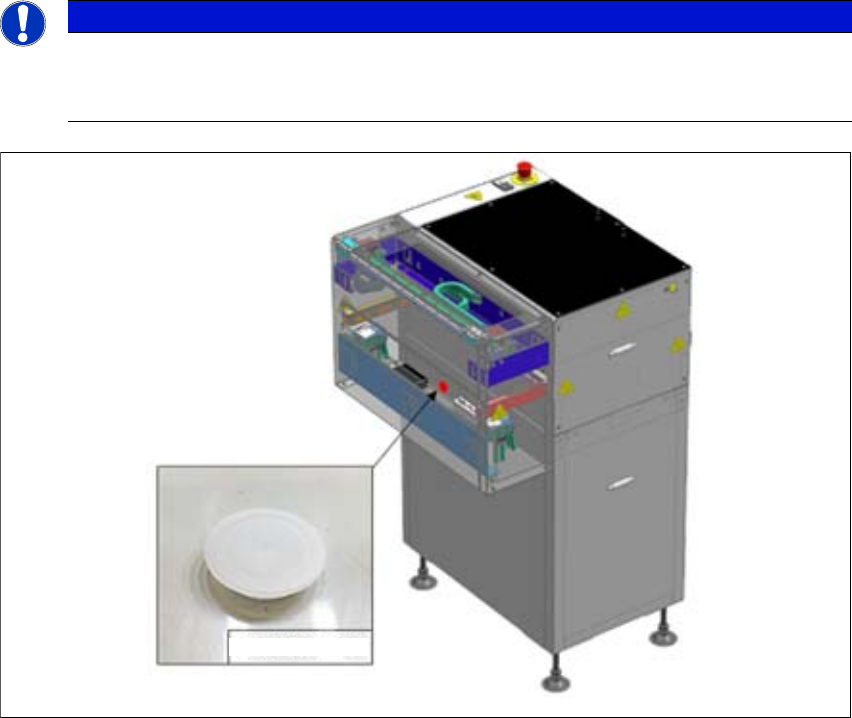

Fig. 6.3 - 2 Remove the barrel plug
PLEASE NOTE
Remove the barrel plug
When the Barcode Reader Extension is integrated onto the Shuttle Extension, this barrel
plug must be removed to allow cables routing.
03154892-0101
Assembly and User Manual 6 Barcode Reader Extension
Shuttle Extension Edition 06/2017 6.4 Assembly Instruction
71
6.4 Assembly Instruction
6.4.1 Step 1
In order to mount barcode reader extension kit onto the Shuttle Extension, the following items
must be available.
– 03135848- Barcode reader extension kit cpl. (Pre-assembled)
– 03149503- Extension 207_left cpl. (Pre-assembled)
Fig. 6.4 - 1 Step 1
6.4.2 Step 2
Remove dowel pin (1) from Shuttle Conveyor, this is to allow the exchange of longer belt.
Loosen pulley (2) to release belt tension and remove conveyor belt.
Fig. 6.4 - 2 Step 2
(1)
(2)
(1)
(2)
6 Barcode Reader Extension Assembly and User Manual
6.4 Assembly Instruction Shuttle Extension Edition 06/2017
72
6.4.3 Step 3
Mount the pre-assembled extension rail_left onto the shuttle conveyor via 2x 03116105-Bolt
4 M-C, 2x 03116106-Bolt 5 M-C and 2x 03042563-ISO4762 M5x20.
Fig. 6.4 - 3 Step 3
6.4.4 Step 4
Mount the pre-assembled extension rail_right onto the shuttle conveyor via 2x 03116105-Bolt
4 M-C, 2x 03116106-Bolt 5 M-C and 2x 03042563-ISO4762 M5x20.
Fig. 6.4 - 4 Step 4
