6.6 Machine Configuration
After successful installation, the barcode readers are shown in the machine configuration of the
station software.
Click Service (1) icon from the station GUI tool bar.

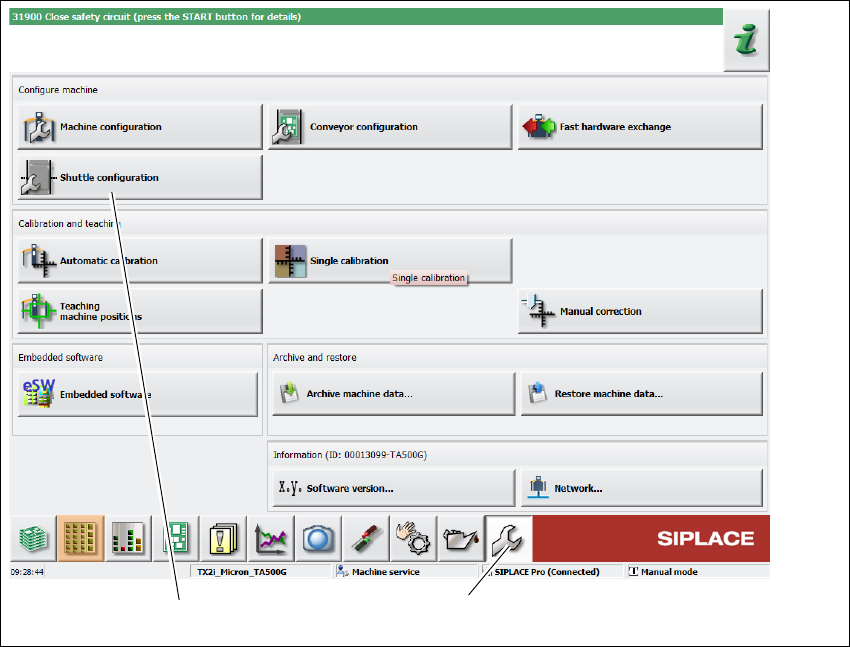

Fig. 6.6 - 1 Station Software - "Service" view
Click Shuttle configuration icon (2).
The Shuttle configuration view is shown: 6
(1)
(2)
6 Barcode Reader Extension Assembly and User Manual
6.6 Machine Configuration Shuttle Extension Edition 06/2017
84
Fig. 6.6 - 2 Station Software - Machine configuration
Click Configuration icon (1).
– Configuration example (2)
(1)
(2)
