07/2002 Edition Student Guide HS-50 Advanced II
8 Y-Axis
40
 <$[LV
 *HQHUDO3UHSDUDWLRQ
➠ Start SITEST.
➠ Make sure that all friction surfaces are clean.

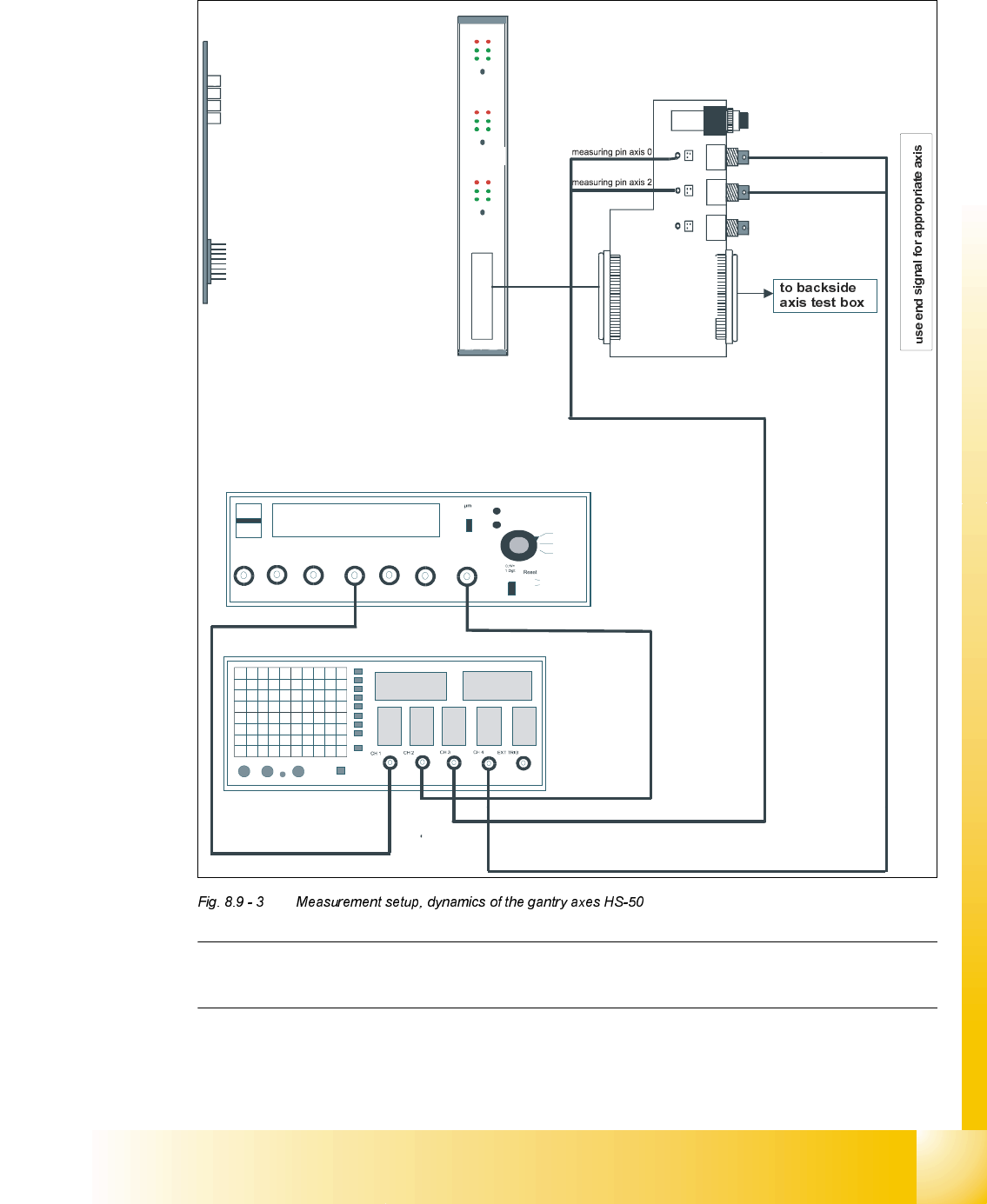

➠ Prepare the measurement setup for the y-axis. (See Fig. 8.9 - 3).
➠ Perform a head reference run.
➠ Perform a gantry reference run.
NOTE
Use an RC - filter to record the current curve
Measure the end signal on the adapter board "axis test box", with the switch pressed down.
 &RQWURO3*DLQ
NOTE
Adjustments of the gantry axes on the servo amplifier are not possible.
Adjustment parameters are preset through board VC10.
This board is positioned on the axis control cards 1, 2, 3 and 4.
Measure the nominal current of the y-axis at the "measuring adapter axis control card, measuring
pin, axis 1".
(Do not connect GND).
6,7(67
➠ Select "Gantry" ==> ==> "Select gantry" ==>
"Axis functions" ==> "Select y-axis" ==> "Adjust P-gain" ==>
"Select travel range with the help of the ÇÆ arrow buttons".

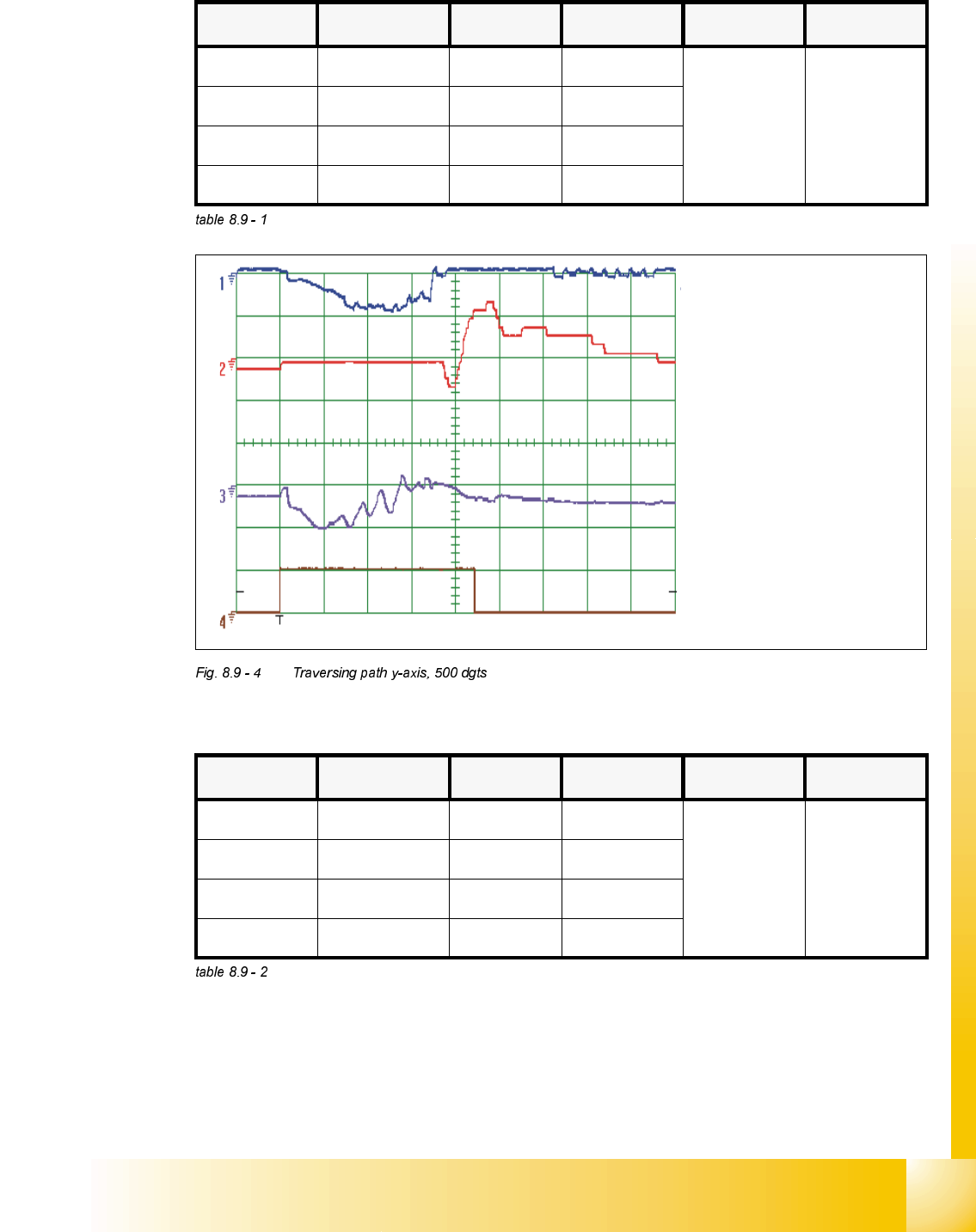

– If you adjusted the dynamics of the y-axis correctly, each individual signal will be
displayed as shown in Fig. 8.9 - 4
and Fig. 8.9 - 5.
➠ To end the procedure, select "Abort".
Student Guide HS-50 Advanced II 07/2002 Edition
8 Y-Axis
41
2VFLOORVFRSH6HWWLQJV
&KDQQHO 6LJQDO &RXSOLQJ <'HIOHFWLRQ 7ULJJHU ;'HIOHFWLRQ
CH 1 Vnominal DC 0.1 V/ DIV
Ch1
positive
10% pre
10 ms/ DIV
CH 2 deviat.of pos. DC 0.5 V/ DIV
CH 3 nominal current DC 1.0 V/ DIV
CH 4 end signal DC 5.0 V/ DIV
Sollwert /
Vnominal
Positionsabweichung
/
deviation of position
Kraftsollwert /
nominal current
Endemeldung /
end signal
&KDQQHO 6LJQDO &RXSOLQJ <'HIOHFWLRQ 7ULJJHU ;'HIOHFWLRQ
CH 1 Vnominal DC 1 V/ DIV
Ch1
positive
3% pre
10 ms/ DIV
CH 2 deviat. of pos. DC 0.5 V/ DIV
CH 3 nominal current DC 5.0 V/ DIV
CH 4 end signal DC 5.0 V/ DIV
