07/2002 Editio n Student G uide HS -50 Advanc ed II 9 Z-Axis 28 7 HVW6 HWXS NOTE At prese nt, there i s no mea suring adapter av ailable . The refore, t he track s ignals c an onl y be meas ured on t he pin s.…
Student Guide HS-50 Advanced II 07/2002 Edition
9 Z-Axis
27
'LJLWDO7UDFN6LJQDOVRIWKH+HDG$[HV
0HDVXUHPHQWRIWKH7UDFN6LJQDOVRI6WDU=DQG'3$[HVDWWKH,QWHUPHGLDWH'LVWULEXWRU
63
; = z-axis
; = star - axis
; = dp - axis

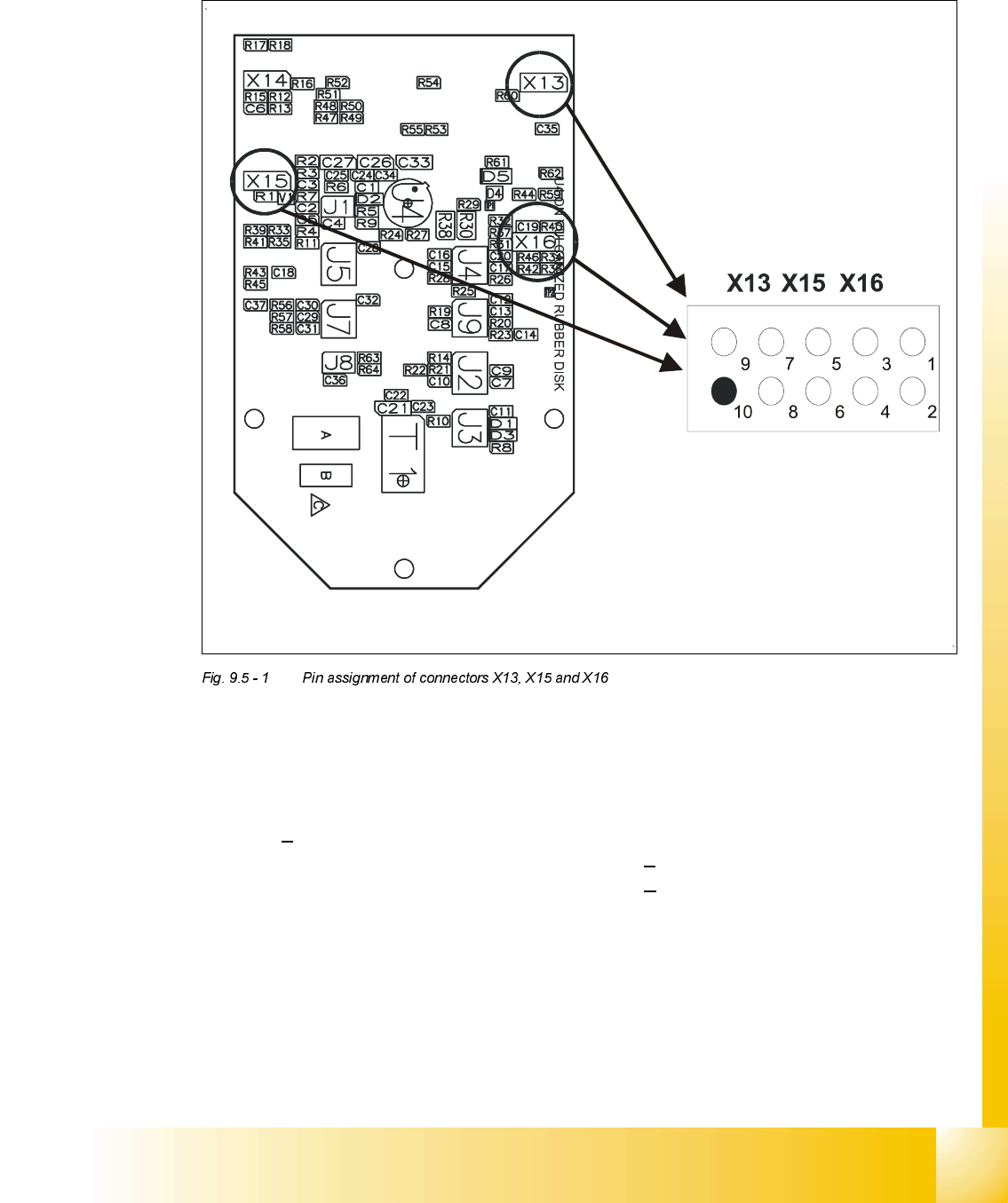

3LQDVVLJQPHQW
1. Ground 2. Track A
3. Track A
4. Ground
5. Track B 6. Track B
7. Track N 8. Track N
9. -4V 10.removed
07/2002 Edition Student Guide HS-50 Advanced II
9 Z-Axis
28
7HVW6HWXS
NOTE
At present, there is no measuring adapter available. Therefore, the track signals can only be
measured on the pins.
2VFLOORVFRSH6HWWLQJV
12
3
4
5
6
78
9
10
X
CH1
CH2
EXT
X13 / X15 / X16
&KDQQHO 6LJQDO &RXSOLQJ <'HIOHFWLRQ &KDQQHO 6LJQDO
CH1
track A of X13,
X15 o r X16,
pin 2 resp.
DC 1.0 V / DIV CH1
track A of X13,
X15 o r X16,
pin 2 resp.
CH2
track B of X13,
X15 or X16 pin
5 resp.
DC 1.0 V/ DIV CH2
track B of X13,
X15 or X16 pin
5 resp.
Student Guide HS-50 Advanced II 07/2002 Edition
9 Z-Axis
29
3URFHGXUH
➠ Turn on the machine.
➠ Connect both channels to the connectors X13, X15 or X16, pin1 respectively.
➠ Set the oscilloscope to "auto" (with trigger).
➠ With the help of the positioning switches of CH1 and CH2, move the oscilloscope ray of CH1
to the center of the screen and the oscilloscope ray of CH2 to the lower edge of the screen.
➠ Change the connection of CH1 to connector X13, X15 or X16 on pin 2 respectively.
➠ Change the connection of CH2 to connector X 13, X15 or X16 on pin 5 respectively.
➠ Set the trigger to "norm" and set the oscilloscope with "trigger" to a suitable triggering
threshold.
➠ Manually, move the appropriate axis back and forth.
– If you adjusted the read correctly, the following illustration will be displayed on the
oscilloscope screen:
NOTE
Pulse width is dependent on the speed, the phase location is dependent on the direction.
Spur A / track A
Spur B / track B
