3 Power Supply
16

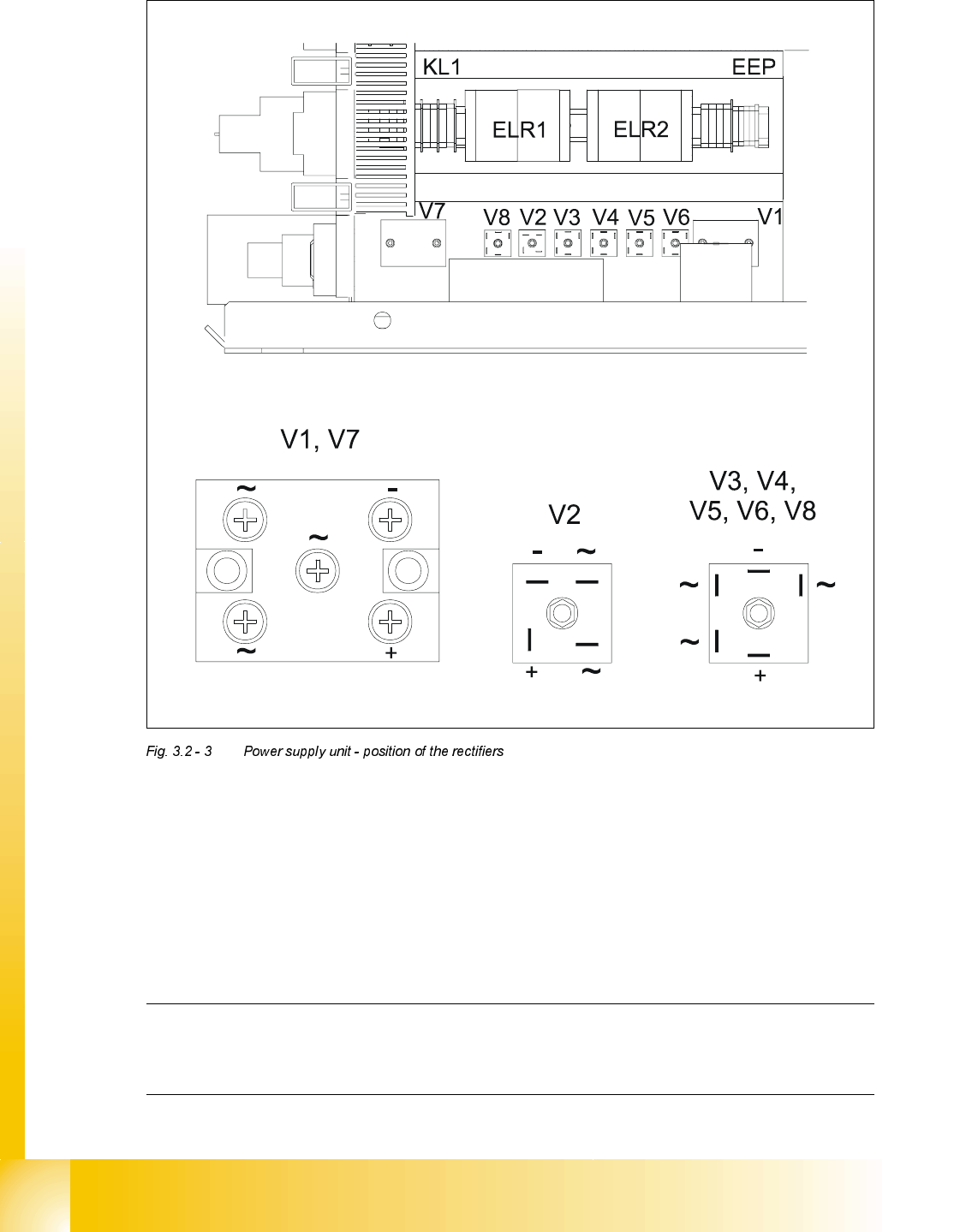

PLEASE NOTE:
Remember to replace the perspex safety panels over rectifiers V1 and V7 when the measure-
ments are complete.
5HFWLILHU ,QSXW 2XWSXW
V1 3 x 140 VAC 200 VDC
V2 100 VDC 100 VDC
V3 3 x 5 VAC 4 VDC
V4 3 x 24 VAC 30 VDC
V5 3 x 25 VAC 40 VDC
V6 3 x 6 VAC 10 VDC
V7 3 x 38 VAC 52 VDC
V8 3 x 20 VAC 30 VDC
Student Guide HS-50 Advanced II 07/2002 Edition
3 Power Supply
17
RISK OF DEATH BY ELECTRIC SHOCK
➠ Switch the placement system off at the main switch.
➠ Disconnect the placement system from the power supply.
➠ Wait approximately 1 minute until the residual voltages have dropped to a safe level (electro-
lytic capacitor C1).
➠ Attach the perspex safety panel and fix in place with the M5 fillister head screws.
CAUTION
Do not overtighten the fillister head screws. The perspex panel might break.
0HDVXULQJYROWDJHVDWWUDQVIRUPHU7
3ULPDU\VLGHRIWUDQVIRUPHU7

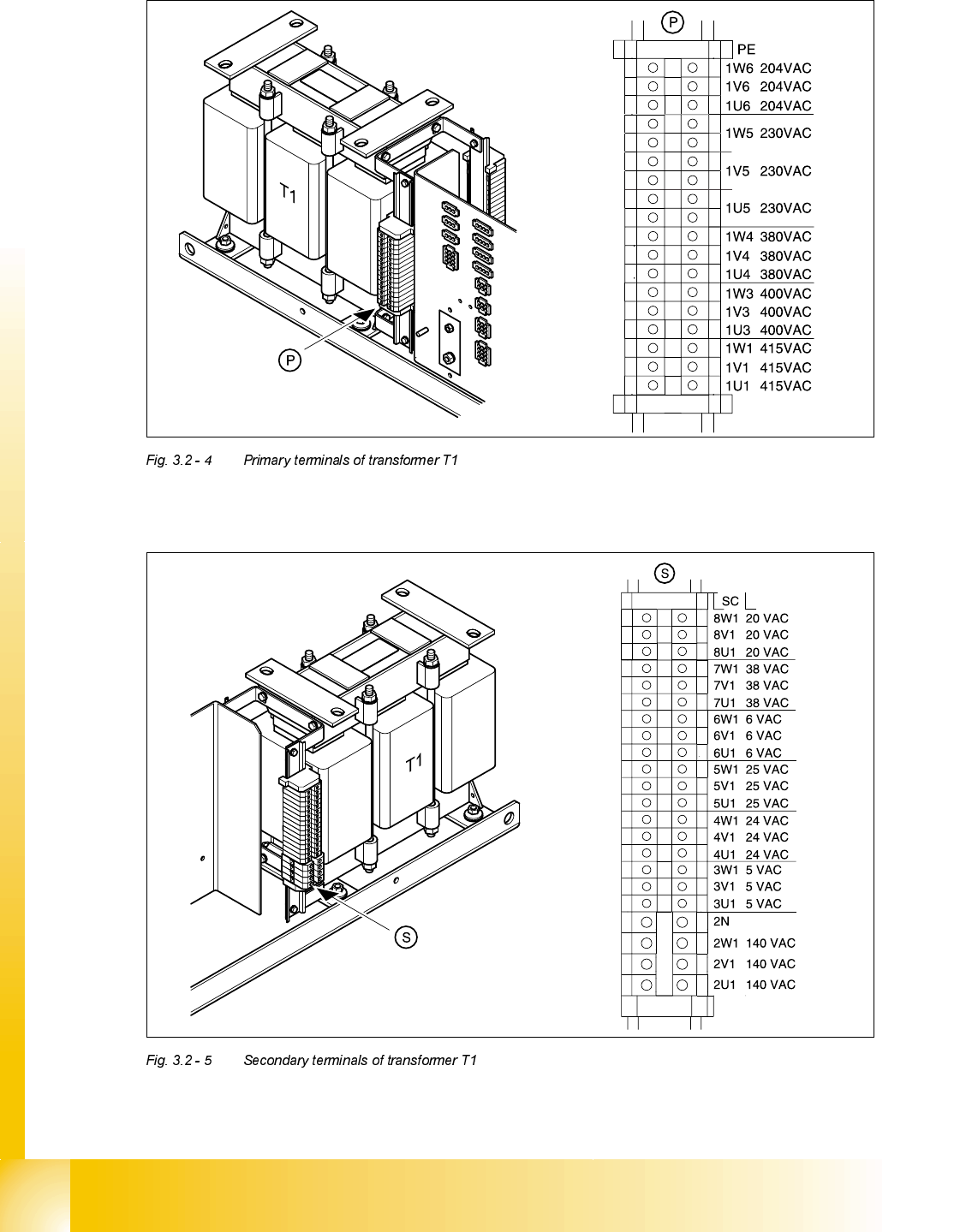

The transformer can be connected to the following main power supplies:
3 x 230 VAC for the "on-board electrical system" is drawn at terminals 1U5, 1V5 and 1W5. This is
used to supply the PC, the monitor and the lifting table motors.
Voltage Terminals
3 x 204 VAC (U. S. A.) ± 5 %, 50/60 Hz 1U6, 1V6, 1W6
3 x 230 VAC ± 5 %, 50/60 Hz 1U5, 1V5, 1W5
3 x 380 VAC ± 5 %, 50/60 Hz 1U4, 1V4, 1W4
3 x 400 VAC (Europe) ± 5 %, 50/60 Hz 1U3, 1V3, 1W3
3 x 415 VAC ± 5 %, 50/60 Hz 1U1, 1V1, 1W1
07/2002 Edition Student Guide HS-50 Advanced II
3 Power Supply
18
6HFRQGDU\VLGHRIWUDQVIRUPHU7
