07/2002 Editio n Student G uide HS -50 Advanc ed II 3 Power Sup ply 18 6HFRQGDU\VLGHRIWUDQVIRUPH U7
Student Guide HS-50 Advanced II 07/2002 Edition
3 Power Supply
17
RISK OF DEATH BY ELECTRIC SHOCK
➠ Switch the placement system off at the main switch.
➠ Disconnect the placement system from the power supply.
➠ Wait approximately 1 minute until the residual voltages have dropped to a safe level (electro-
lytic capacitor C1).
➠ Attach the perspex safety panel and fix in place with the M5 fillister head screws.
CAUTION
Do not overtighten the fillister head screws. The perspex panel might break.
0HDVXULQJYROWDJHVDWWUDQVIRUPHU7
3ULPDU\VLGHRIWUDQVIRUPHU7
The transformer can be connected to the following main power supplies:
3 x 230 VAC for the "on-board electrical system" is drawn at terminals 1U5, 1V5 and 1W5. This is
used to supply the PC, the monitor and the lifting table motors.
Voltage Terminals
3 x 204 VAC (U. S. A.) ± 5 %, 50/60 Hz 1U6, 1V6, 1W6
3 x 230 VAC ± 5 %, 50/60 Hz 1U5, 1V5, 1W5
3 x 380 VAC ± 5 %, 50/60 Hz 1U4, 1V4, 1W4
3 x 400 VAC (Europe) ± 5 %, 50/60 Hz 1U3, 1V3, 1W3
3 x 415 VAC ± 5 %, 50/60 Hz 1U1, 1V1, 1W1
07/2002 Edition Student Guide HS-50 Advanced II
3 Power Supply
18
6HFRQGDU\VLGHRIWUDQVIRUPHU7
Student Guide HS-50 Advanced II 07/2002 Edition
3 Power Supply
19
Transformer T1 supplies the following voltages on the secondary side:
– 3 x 140 VAC
–3 x 5 VAC
–3 x 24 VAC
–3 x 25 VAC
–3 x 6 VAC
–3 x 38 VAC
–3 x 20 VAC

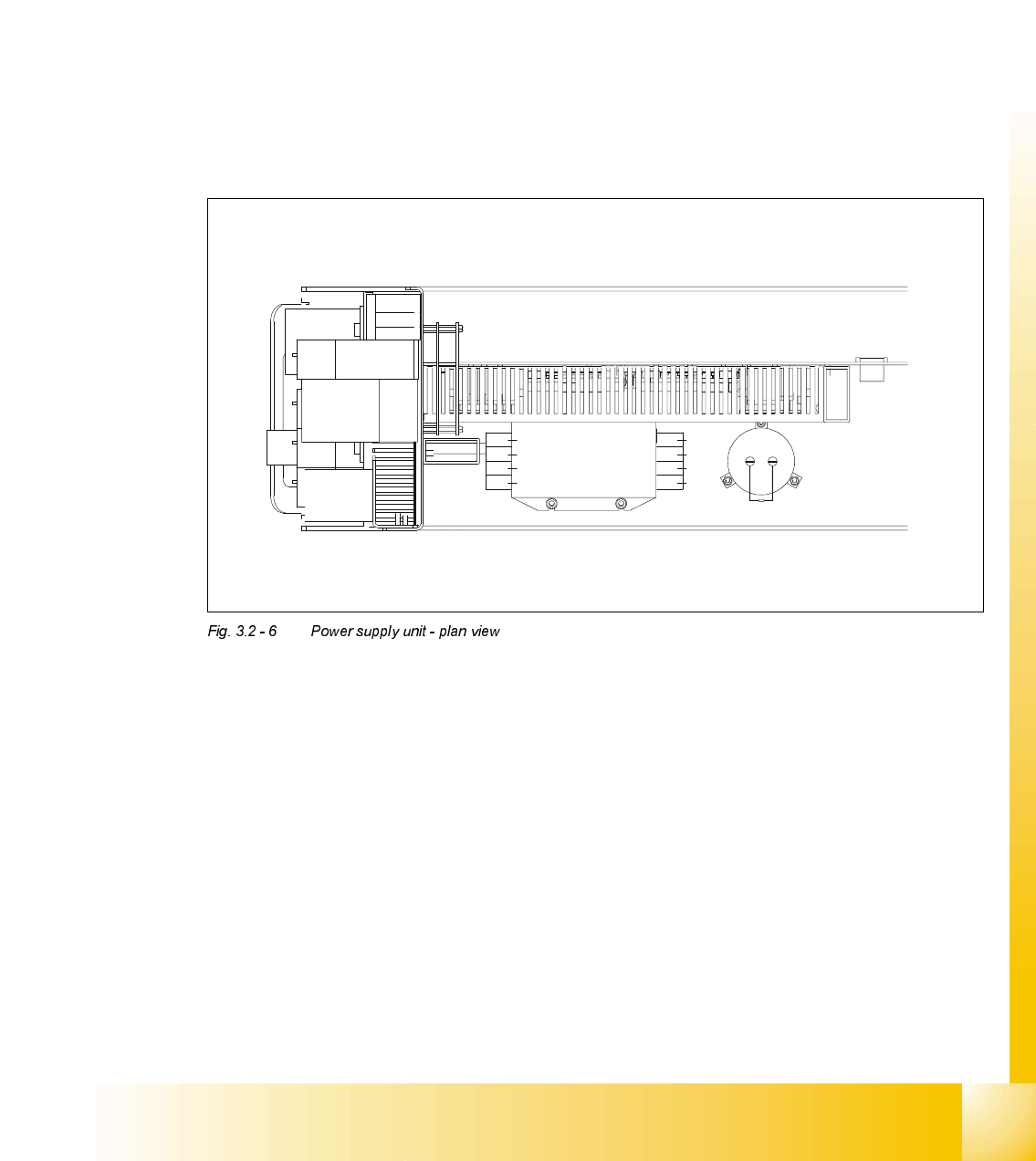

0HDVXULQJYROWDJHVDWWKHPDLQSRZHUILOWHU=DQGHOHFWURO\WLFFDSDFLWRU&
Z1 Main power filter for 36 A 3-phase systems
E Input terminals of main power filter Z1
A Output terminals of main power filter Z1
C1 33000 µF / 63 V electrolytic capacitor
R1 Discharge resistor
0RGXOH 7HUPLQDO 9ROWDJHV
Main power filter Z1 L1, L2, L3 3 x 204 VAC / 3 x 230 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
Electrolytic capacitor C1 + / - 52 VDC
R1
C1
Z1
+
-
L1
L2
PE
L3
AE
PE
L3
L2
L1
