LF3-191 1 11 15 39 6 33 1 29 9 32 40 31 4 17 44 42 7 28 26 38 19 9 31 21 10 29 14 5 13 13 31 1 8 35 36 43 34 22 16 12 34 3 4 24 41 25 27 2 18 37 20 23 30 45 30 30 30 45 11 15 39 6 33 1 29 9 32 40 31 4 17 44 42 7 28 26 38…
LF3-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHY-M3R15-00 ROLLER 52 /
39 LF1-M3751-000 SHAFT,REEL HOLDER 2 /
2 KHY-M3R16-00 PARTITION 12 /
40 LF1-M3752-000 COLLAR 2 /
3 KHY-M3R23-00 COLLAR,PARTITION 22 /
41
4 LE4-M5B1P-01 CASTER 2 /
42
5 LE4-M5B1R-01 CASTER 2 /
43
6 LE6-M3833-01 BRKT.SEPALATOR 2 /
Í
44
7 LE6-M3834-00 BRKT.SEPALATOR 2 2 /
Í
45
8 LE6-M3836-00 SHAFT,ROLLER 3 /
46
9 LE6-M3838-00 COLLAR 2 /
47
10 LE6-M3839-00 LOW HEAD CAP SCREW 4 /
Í
48
11 LF1-M370J-00 BOLT 2 /
Í
49
12 LF1-M370R-00 STOPPER 2 /
Í
50
13 LF1-M370V-01 LEAF SPRING 1 /
Í
51
14 LF1-M3711-03 MAIN FRAME 1 /
Í
52
15 LF1-M3712-00 HANDLE 2 /
53
16 LF1-M374E-00 HEX.SOCKET FLAT HEAD 2 /
Í
54
17 LF1-M374F-00 COVER R 1 /
Í
55
18 LF1-M374G-00 COVER L 1 /
Í
56
19 LF1-M374H-00 TAPE, GUIDE 1 /
Í
57
20 LF1-M374J-00 PLATE,SEPALATOR 1 /
Í
58
21 LF3-M3663-00 SPACER, 1 1 /
59
22 LF3-M3663-10 SPACER, 2 1 /
60
23 LF3-M5E01-00 TB-45E 1
Scale 1/2
/
61
24 90990-01J032 BOLT HEX,SOCKET HEAD 6 62
25 91312-03006 BOLT HEX,SOCKET HEAD 2 63
26 91312-04008 BOLT HEX,SOCKET HEAD 6 64
27 91312-04010 BOLT HEX,SOCKET HEAD 2 65
28 91312-05010 BOLT HEX,SOCKET HEAD 2 66
29 91312-06012 BOLT HEX,SOCKET HEAD 8 67
30 91312-08012 BOLT HEX,SOCKET HEAD 4 68
31 92903-04600 WASHER,PLAIN 2 69
32 95302-06600 NUT HEXAGON 8 70
33 97002-04008 BOLT HEXAGON 2 71
34 98902-04005
SCREW BINDING HEAD
4 72
35 KHW-M1385-000 SPACER 21 /
73
36 KHY-M3R15-001 ROLLER 22 /
74
37 KLF-M3R10-011
REEL HOLDER
22 /
Í
75
38 LF1-M374E-000 HEX.SOCKET FLAT HEAD 4 /
Í
76
3
6
CFB-36E/45E Cart Assy
Feeder Holder
LF3-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KV7-M7165-00 SEAL DON'T TOUCH 2 /
Í
39 91317-06030 BOLT HEX,SOCKET HEAD 4
2 LC0-M22A1-01 COUPLING,X 1 /
Í
40 92907-03200 WASHER,PLAIN 2
3 LC1-M22AA-00 BRG,ANGULAR 1 /
Í
41 92A08-04005 SCREW,SET 1
4 LC2-M220H-01 TAPER PIN 4 /
Í
42 95307-06600 NUT HEXAGON 1
5 LC2-M654R-00 SENSOR. 2 B
Í
43 98907-04006 SCREW BINDING HEAD 1
6 LE6-M2206-E0 HOLDER MOTOR,X 1 /
Í
44 99009-15400 CIRCLIP 3
7 LE6-M2207-E0 HOLDER BRG.X 1 /
Í
45 99480-05014 PIN,PARALLEL 2
8 LE6-M220F-E0 BRKT,CONNECTOR 2 1 /
Í
46
9 LE6-M220H-00 PLATE SENSOR,X 2 /
Í
47
10 LE6-M220Y-00
LOCK,X-AXIS
1 /
Í
48
11 LE6-M2211-00 SPACER 1 /
Í
49
12 LE6-M2212-01 PLATE,FLANGE 1 /
Í
50
13 LE6-M2221-00 PLATE,NUT 3 2 /
Í
51
14 LE6-M22A3-00 O-RING 1 /
Í
52
15 LE6-M22A6-00 NIPPLE 1 /
Í
53
16 LE6-M22E1-10 SHIM,BRG(001) 1 /
Í
54
17 LE6-M65J3-00 X ENCODER.ASSY 1 B
Í
55
18 LE6-M65M2-01 X MOTOR ASSY 1 B
Í
56
19 LE7-M2201-E3 BEAM-X 1 /
Í
57
20 LE7-M2204-00 LM GUIDE 1 /
Í
58
21 LE7-M2205-00 BALL SCREW,X 1 /
Í
59
22 LE7-M220C-E0 COVER,SCREW X 1 /
60
23 LF1-M2208-20 HOLDER,HEAD 1 /
Í
61
24 LF1-M22A4-00 GOM,STOPPER 2 /
Í
62
25 LG0-M22F4-00 PIECE,SET 1 /
Í
63
26 LG1-M17AK-00 BEARING 2 /
Í
64
27 90990-16J006
NUT, U & NUT, SELF LOCKING
1 65
28 90990-33J036 BOLT, STOPPER 1 66
29 90990-46J002 BOLT, THIN HEAD 4 67
30 91312-04008 BOLT HEX,SOCKET HEAD 16 68
31 91312-05008 BOLT HEX,SOCKET HEAD 6 69
32 91317-03006 BOLT HEX,SOCKET HEAD 2 70
33 91317-03008 BOLT HEX,SOCKET HEAD 4 71
34 91317-04018
BOLT HEX,SOCKET HEAD
32 72
35 91317-05015 BOLT HEX,SOCKET HEAD 4 73
36 91317-05018 BOLT HEX,SOCKET HEAD 4 74
37 91317-06018
BOLT HEX,SOCKET HEAD
4 75
38 91317-06020 BOLT HEX,SOCKET HEAD 4 76
4
1

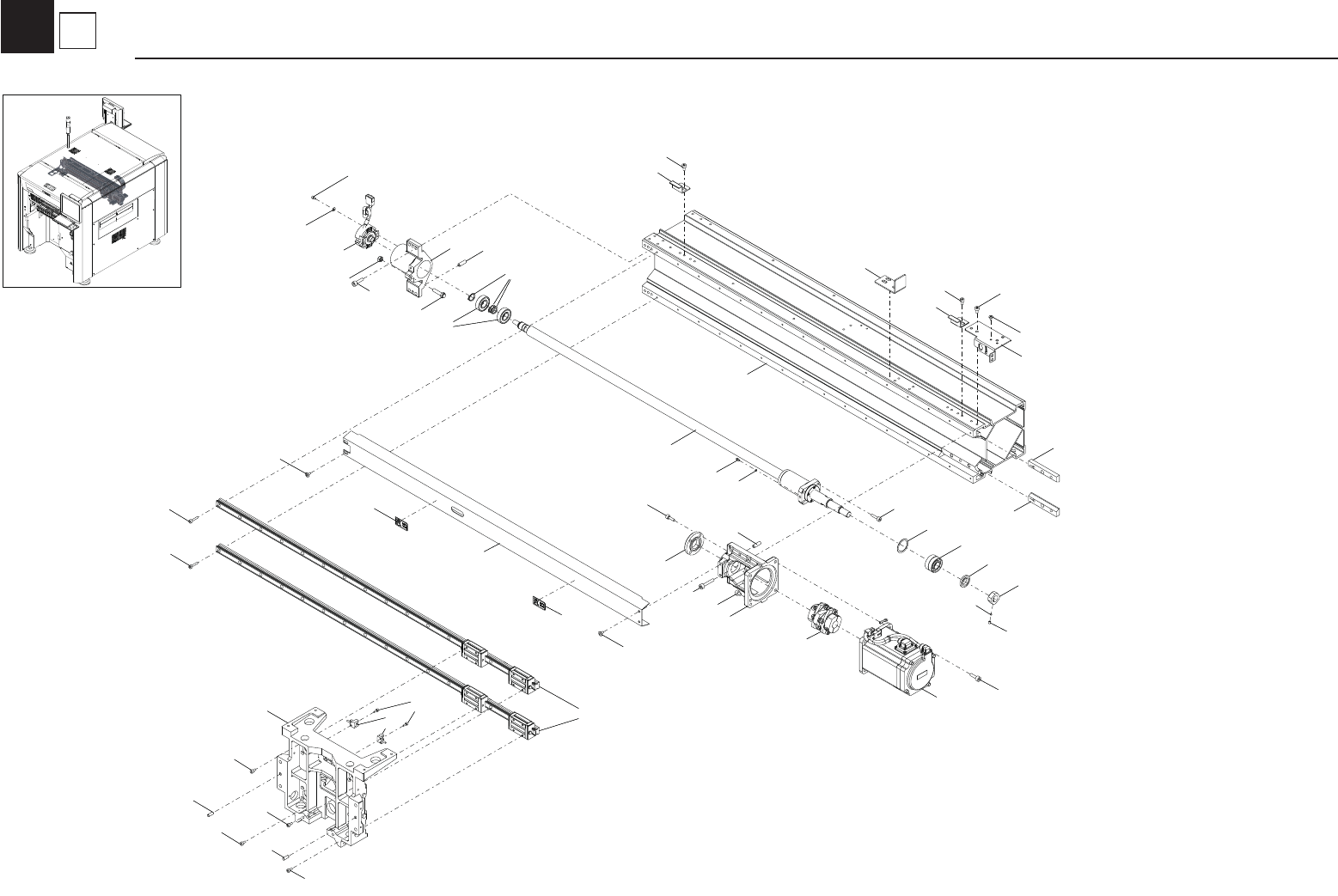

X-Axis
Moving-axis
