Installation Overview of Conversion (Before/A fter) 3.2.3 Input Conveyor – Con veyor Side C 62 Extension Input/Output Conveyor and Hand Guard Ein-/ 3.2.3 3 . 2 . 3 I n p u t C o n v e y o r – C o n v e y o r S id e C Inp…
Installation
3.2.2 Input Conveyor – Conveyor Side B Overview of Conversion (Before/After)
Extension Input/Output Conveyor and Hand Guard Ein-/Ausgabebandverlängerung und Eingreifschutz 61
3.2.2

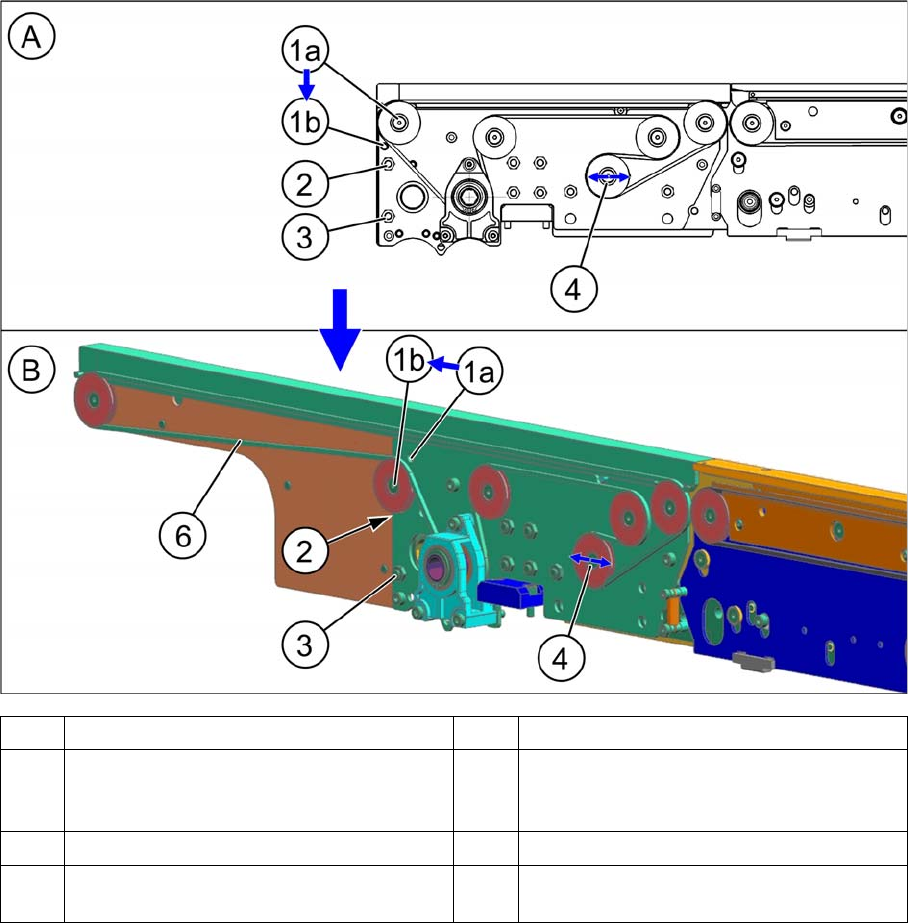

3.2.2 Input Conveyor – Conveyor Side B
Input Conveyor – Conveyor Side B
A Conveyor side without extension B Conveyor side with extension
1 The idler pulley is converted from (1a) to
(1b).
2 The screw M5x16 (TX25) with nut is re-
placed with a shorter screw M5x14.7 with-
out nut.
3 The screw M5x16 (TX25) with nut remains. 4 Idler (loosen only)
6 Measurement point for belt tension: 85+-
9Hz
Installation
Overview of Conversion (Before/After) 3.2.3 Input Conveyor – Conveyor Side C
62 Extension Input/Output Conveyor and Hand Guard Ein-/
3.2.3

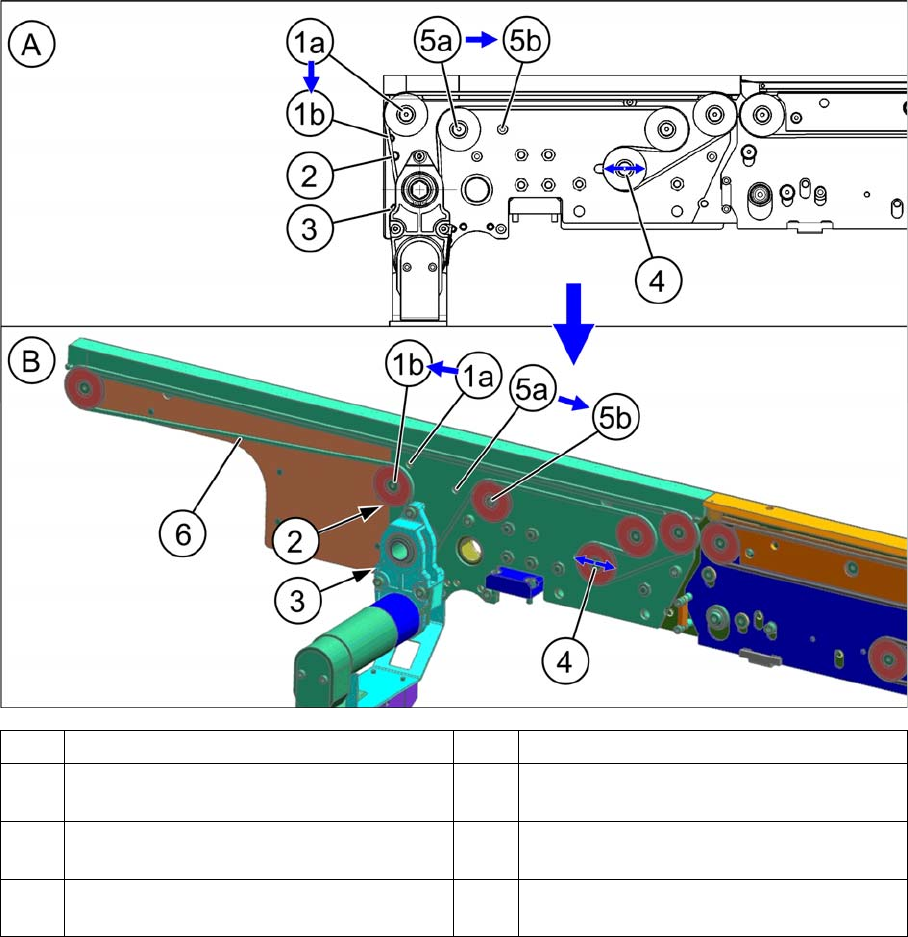

3.2.3 Input Conveyor – Conveyor Side C
Input Conveyor – Conveyor Side C
A Conveyor side without extension B Conveyor side with extension
1 The idler pulley is converted from (1a) to
(1b).
2 The screw M5x14.7 (TX25) without nut re-
mains.
3 The screw M5x14.7 (TX25) without nut re-
mains.
4 Idler (loosen only)
5 The idler pulley is converted from (5a) to
(5b).
6 Measurement point for belt tension: 85+-
9Hz
Installation
3.2.4 Input Conveyor – Conveyor Side D Overview of Conversion (Before/After)
Extension Input/Output Conveyor and Hand Guard Ein-/Ausgabebandverlängerung und Eingreifschutz 63
3.2.4

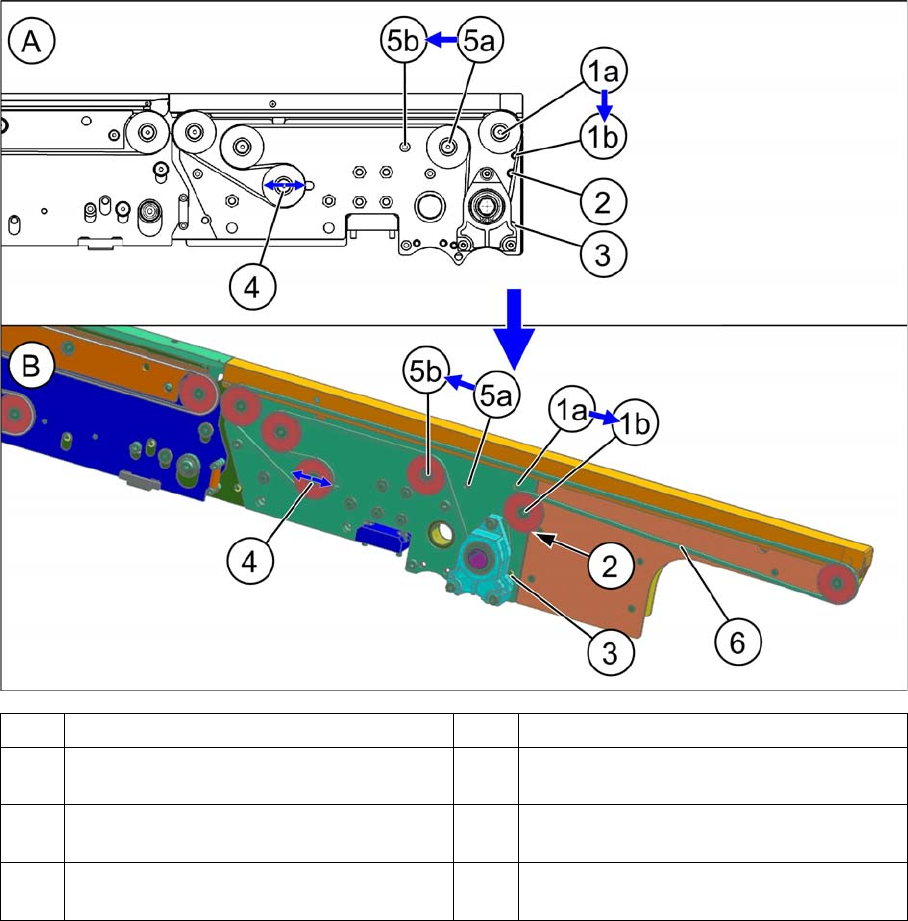

3.2.4 Input Conveyor – Conveyor Side D
Input Conveyor – Conveyor Side D
A Conveyor side without extension B Conveyor side with extension
1 The idler pulley is converted from (1a) to
(1b).
2 The screw M5x14.7 (TX25) without nut re-
mains.
3 The screw M5x14.7 (TX25) without nut re-
mains.
4 Idler (loosen only)
5 The idler pulley is converted from (5a) to
(5b).
6 Measurement point for belt tension: 85+-
9Hz
