3.4 Assembly of Input/Output Conveyor Extension
Assembly of Input/Output Conveyor Extension
NOTICE
Observe the detailed diagrams: differences between the input/output conveyor extension
The conversion is, in principle, the same in all cases. However, some details differ between in-
put and output conveyor extensions. There are also differences between the individual convey-
or sides.
► When performing conversion work, observe all relevant diagrams in section "3.2 Overview
of Conversion (Before/After)" [ ➙ 60].
► Output conveyor only:
To improve access for dismantling the belt guidance,
you may want to also remove the nozzle reject sta-
tion. In this case, loosen the two fastening screws (1)
and turn the nozzle reject station to one side.
► Loosen the sensor screw (1) on the belt guidance.
► Loosen the three screws (2) (TX25) fastening the belt
guidance.
► Take the belt guidance (1) off the side. To do this,
carefully pull the sensor (2) out of the belt guidance.
Please also observe the relevant diagram in section
"3.2 Overview of Conversion (Before/After)" [ ➙ 60].
Installation
Assembly of Input/Output Conveyor Extension 3.2.8 Output Conveyor – Conveyor Side D
70 Extension Input/Output Conveyor and Hand Guard Ein-/
► Loosen the three screws (1) fastening the drive/mo-
tor.
► Push the drive/motor on the hexagonal shaft off the
side. While doing so, unthread the conveyor belt (2).
► Loosen the screws (2) fastening the hexagonal shaft
bracket (1) and remove these. You can dismantle ei-
ther the left or right hexagonal shaft fixture, depend-
ing on the ease of access.
CAUTION!
The hexagonal shafts are fixed on both sides of the con-
veyor with brackets.
Make sure that you do not lose the plastic bearings (3).
When you dismantle a bracket, always remove all the
plastic bearings on this and the bracket opposite. These
would otherwise obstruct movement of the hexagonal
shafts and could easily fall out.
The plastic bearings can be re-ordered by quoting the
number [03092024-xx].
► Move the hexagonal shaft (4) and unthread the con-
veyor belt.
► Loosen the two fastening screws (1) (TX25) incl.
counternuts (if present) at the end of the side and
then remove the spacers (2).
Observe the relevant diagram in section "3.2 Over-
view of Conversion (Before/After)" [ ➙ 60].
Installation
3.2.8 Output Conveyor – Conveyor Side D Assembly of Input/Output Conveyor Extension
Extension Input/Output Conveyor and Hand Guard Ein-/Ausgabebandverlängerung und Eingreifschutz 71
► Use 6 screws (TX25) to fasten the new belt guidance. Tighten these with a torque of 6 Nm.
► Fix the sensor with the grub screw. (careful: plastic!)
► If not prefitted, fit the deflection pulley to the end of the side, together with the conveyor belt.
► Thread the conveyor belt into the drive/motor.
► Fasten the drive/motor with the three fastening screws. Press the drive/motor slightly upwards while
doing this. (careful: plastic!)
► Output conveyor only (all sides):

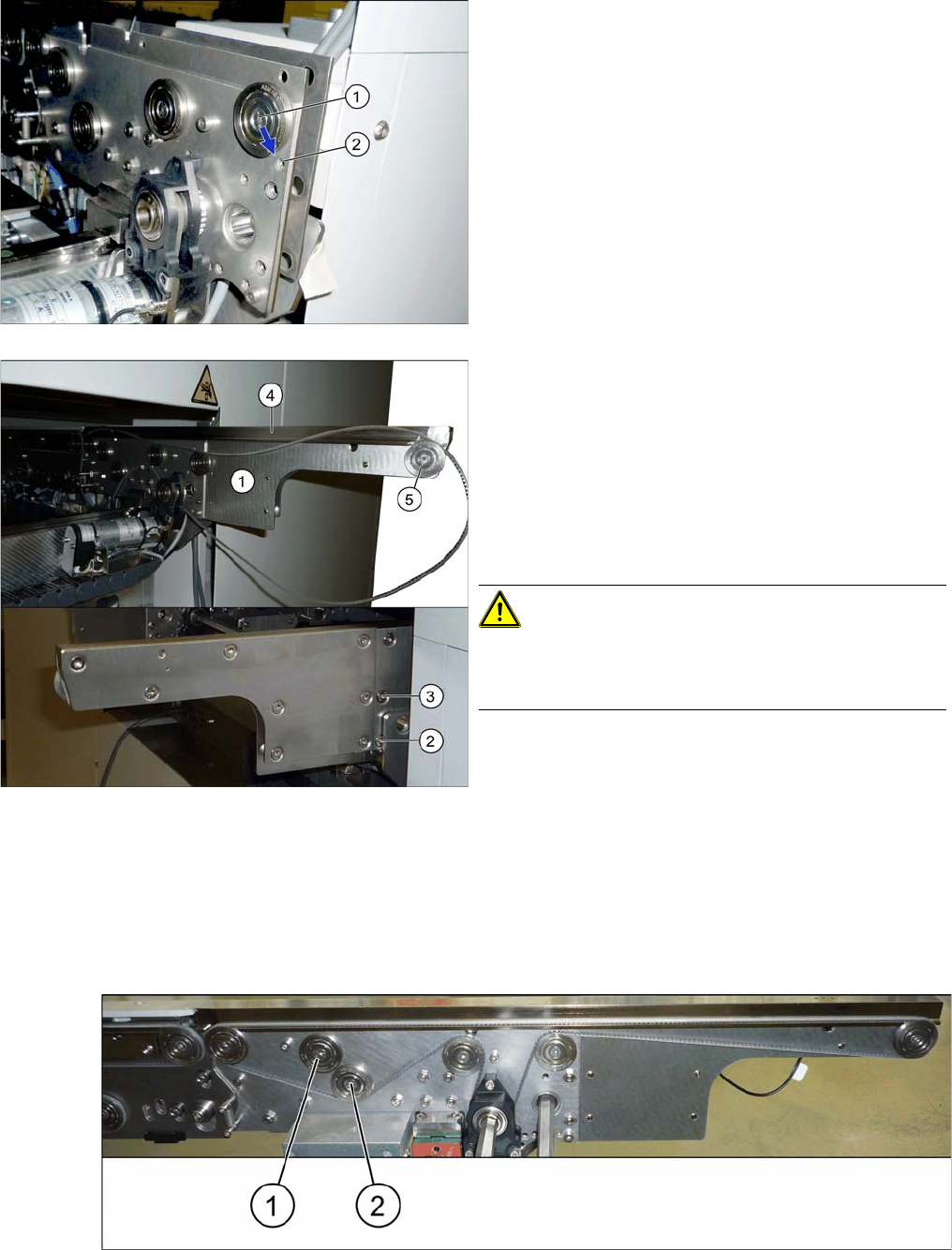

Move the idler no longer needed (1) right up to the center of the machine. It must not touch the new
idler (2).
► Move the deflection pulley from (1) to (2). To do this,
loosen the screw fastening the deflection pulley and
fix this to its new position.
Also observe the relevant diagram in section "3.2
Overview of Conversion (Before/After)" [ ➙ 60].
► Insert the lower section (1) at the end of the side.
► Fix the lower section to the points marked (2) and (3)
(TX25). The screws used may differ according to the
conveyor side (some may be with counternuts).
Also observe the relevant diagram in section "3.2
Overview of Conversion (Before/After)" [ ➙ 60].
► Insert the sensor into the new belt guidance (4).
► Position the new belt guidance onto the side.
CAUTION!
Take care when running the fiber optic cable. Make sure
that is is not bent or damaged. Pay particular attention to
the area between the input and output conveyor..
