3 TYPHOON UNDER STENCIL CLEANER
3.1 OVERVIEW
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 9
3
TYPHOON UNDER STENCIL CLEANER
3.1 OVERVIEW
In conjunction with an external solvent tank and onboard vacuum filtration unit, the Typhoon Under
Stencil Cleaner (USC) forms part of the ASM stencil cleaning solution.
The Typhoon USC wipes lint free fabric, dry or wet (sprayed with solvent) across the underside of
the stencil while applying vacuum to remove print medium (paste or glue) build up, which helps to
maintain print quality. The fabric, plenum and plenum insert options are available in standard sizes
(300, 400, 460 and 515mm widths) and also long board size (620mm width). The frequency and
mode of the cleaning sweeps are programmable in the product file. Available modes are:
●
WET
●
DRY
●
VAC
●
WET & VAC (available on Duo Insert option only)

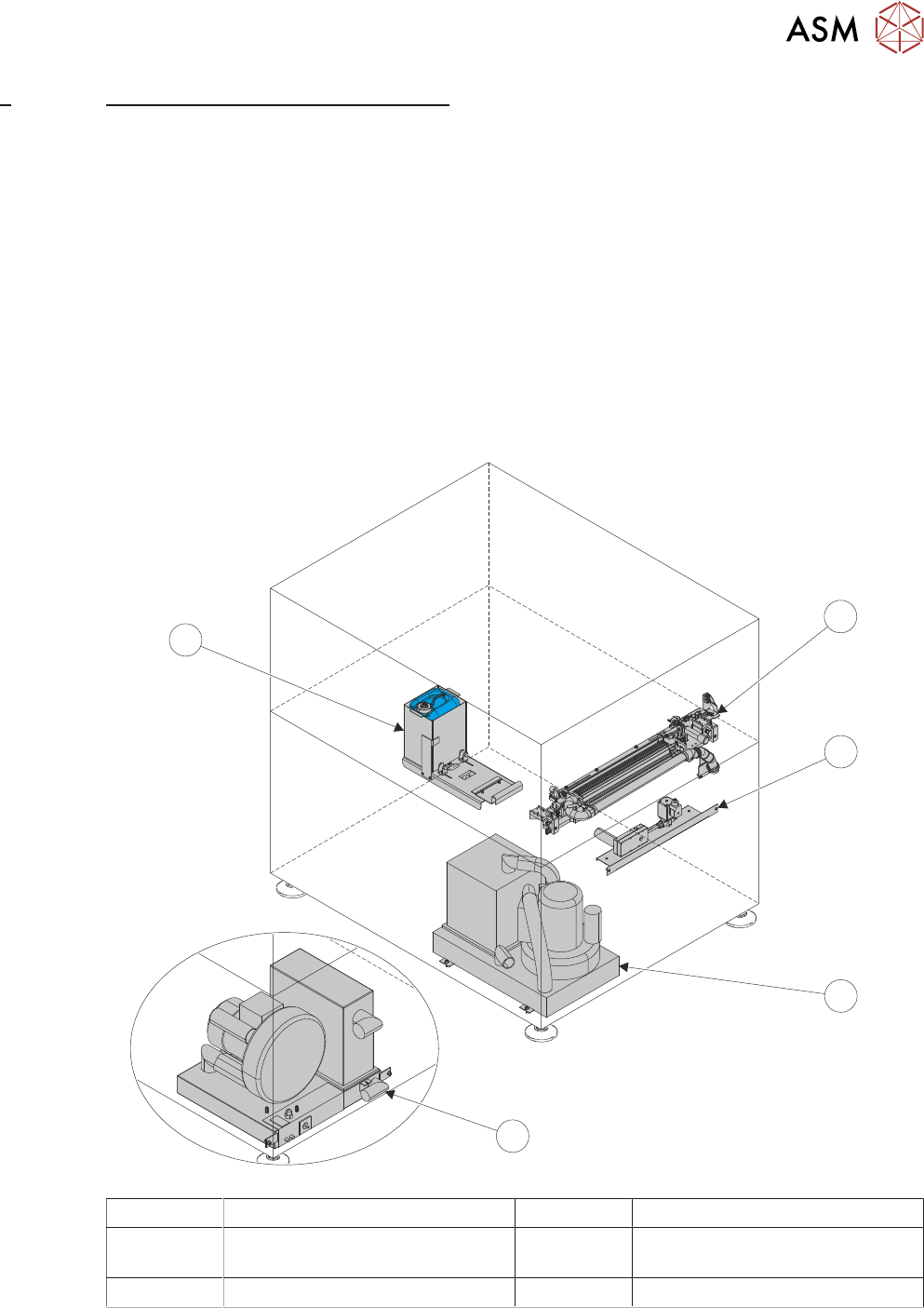

1
3
2a
2b
2c
1 Typhoon Under Stencil Cleaner 2c VF35 Vacuum Filtration Unit
2a VF10 Venturi Vacuum Filtration
Unit
3 External Solvent Tank
2b VF25 Vacuum Filtration Unit
NOTE
Items 2a, 2b and 2c are the vacuum filtration options available for use with the Typhoon USC.
Items 2b and 2c are fitted at rear on Neo Horizon machines.
3 TYPHOON UNDER STENCIL CLEANER
3.1 OVERVIEW
10 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020
1
2
21
20
19
17
18
16
15
14
13
11
12
7
5
4
9
10
8
6
3
Standard Typhoon USC
1 Power and Control Loom
Connector (loom not shown)
12 Left-Hand Home
Electromagnetic Clamp
2 Right-Hand Y Linear Rail
Attachment
13 USC Home Sensor
3 Right-Hand Home
Electromagnetic Clamp
14 Left-Hand Y Linear Rail
Attachment
4 Right-Hand Vac Chamber Lift
Actuator
15 Left-Hand Camera Beam
Attachment Electromagnetic
Clamp
5 Fabric Roll Brake 16 Fabric Take-Up Roller
6 Fabric Usage Roller 17 Vac Chamber
(with Hard Top Insert fitted)
7 Solvent Spray Bar 18 Fabric Usage Sensor
8 Fabric Roll Fitted (not spooled) 19 Fabric Roll Motor
9 Vac Arm 20 Right-Hand Camera Beam
Attachment Electromagnetic
Clamp and USC Detached
Sensor
10 Vac Chamber Vac Inlet 21 Solvent Pump
11 Left-Hand Vac Chamber Lift
Actuator
3 TYPHOON UNDER STENCIL CLEANER
3.1 OVERVIEW
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 11
8
13
11
12
9
10
1
2
21
20
19
17
18
16
15
14
7
5
4
6
3
Long Board (620mm) Typhoon USC
1 Power and Control Loom
Connector (loom not shown)
12 Left-Hand Home
Electromagnetic Clamp
2 Right-Hand Y Linear Rail
Attachment
13 USC Home Sensor
3 Right-Hand Home
Electromagnetic Clamp
14 Left-Hand Y Linear Rail
Attachment
4 Fabric Roll Brake 15 Left-Hand Camera Beam
Attachment Electromagnetic
Clamp
5 Fabric Usage Sensor 16 Fabric Take-Up Roller
6 Fabric Usage Roller 17 Vac Chamber
(with Poly Blade Insert fitted)
7 Solvent Spray Bar 18 Right-Hand Vac Chamber Lift
Actuator
8 Fabric Roll Fitted (not spooled) 19 Fabric Roll Motor
9 Vac Arm 20 Right-Hand Camera Beam
Attachment Electromagnetic
Clamp and USC Detached
Sensor
10 Vac Chamber Vac Inlet 21 Solvent Pump
11 Left-Hand Vac Chamber Lift
Actuator
