3 TYPHOON UNDER STENCIL CLEANER
3.6 REPLENISHMENT PROCEDURES
26 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020
2

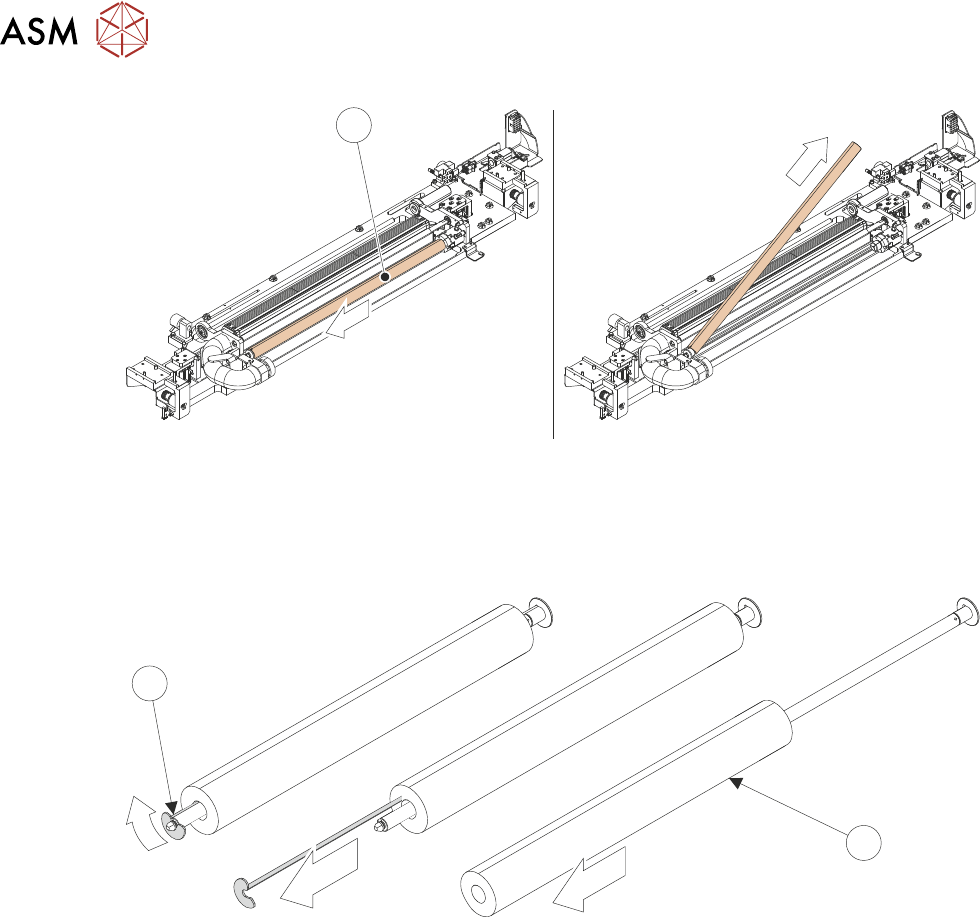

10. Remove the used fabric (3) from the take-up roller:
– Rotate the fabric clamping spindle (4) 45° anti-clockwise.
– Slide the fabric clamping spindle out from the used fabric.
– Remove the used fabric from the take-up roller.
4
3
11. While fabric roll is removed, check that plenum chamber and/or chamber insert is correct for
next printing process
– If installing new fabric roll immediately - see 3.6.1.2 "Fabric Roll Replacement" [}27].
– If plenum chamber insert requires changing before installing new fabric roll - see 3.7.1.1
"Plenum Chamber Insert Removal" [}31].
– If plenum chamber width requires changing before installing new fabric roll - see 3.7.2
"Plenum Chamber" [}33].
3 TYPHOON UNDER STENCIL CLEANER
3.6 REPLENISHMENT PROCEDURES
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 27
3.6.1.2 Fabric Roll Replacement
To install new fabric roll, carry out the following:

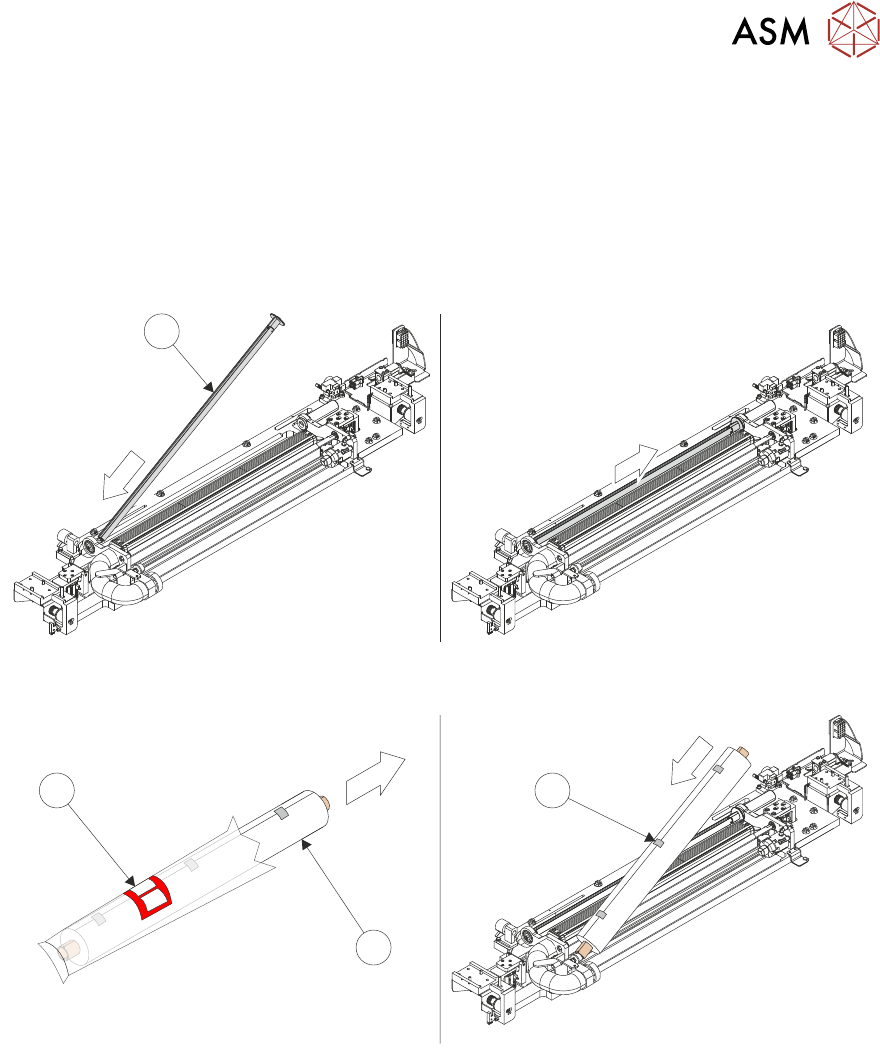

1. Install the fabric take-up roller (1) (without the fabric clamping spindle fitted):
– Fit the left-hand end of the fabric take-up roller.
– Push the fabric take-up roller to the left-hand side, allowing the right-hand grooved end to
line up with and connect into the paper motor drive.
– Ensure that the fabric clamping spindle slot is facing upwards.
1
2. Remove new fabric roll (3) from the packaging (2).
2
3
4
3. Fit the left-hand end of the new fabric roll onto the left-hand end sprung plunger.
4. Push the new fabric roll towards the left-hand end of the USC, until the right-hand end can
slide over the fabric roll brake. Ensure the fabric roll is loaded in the correct direction.
5. Remove all fabric roll fastening tape (4).
3 TYPHOON UNDER STENCIL CLEANER
3.6 REPLENISHMENT PROCEDURES
28 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020

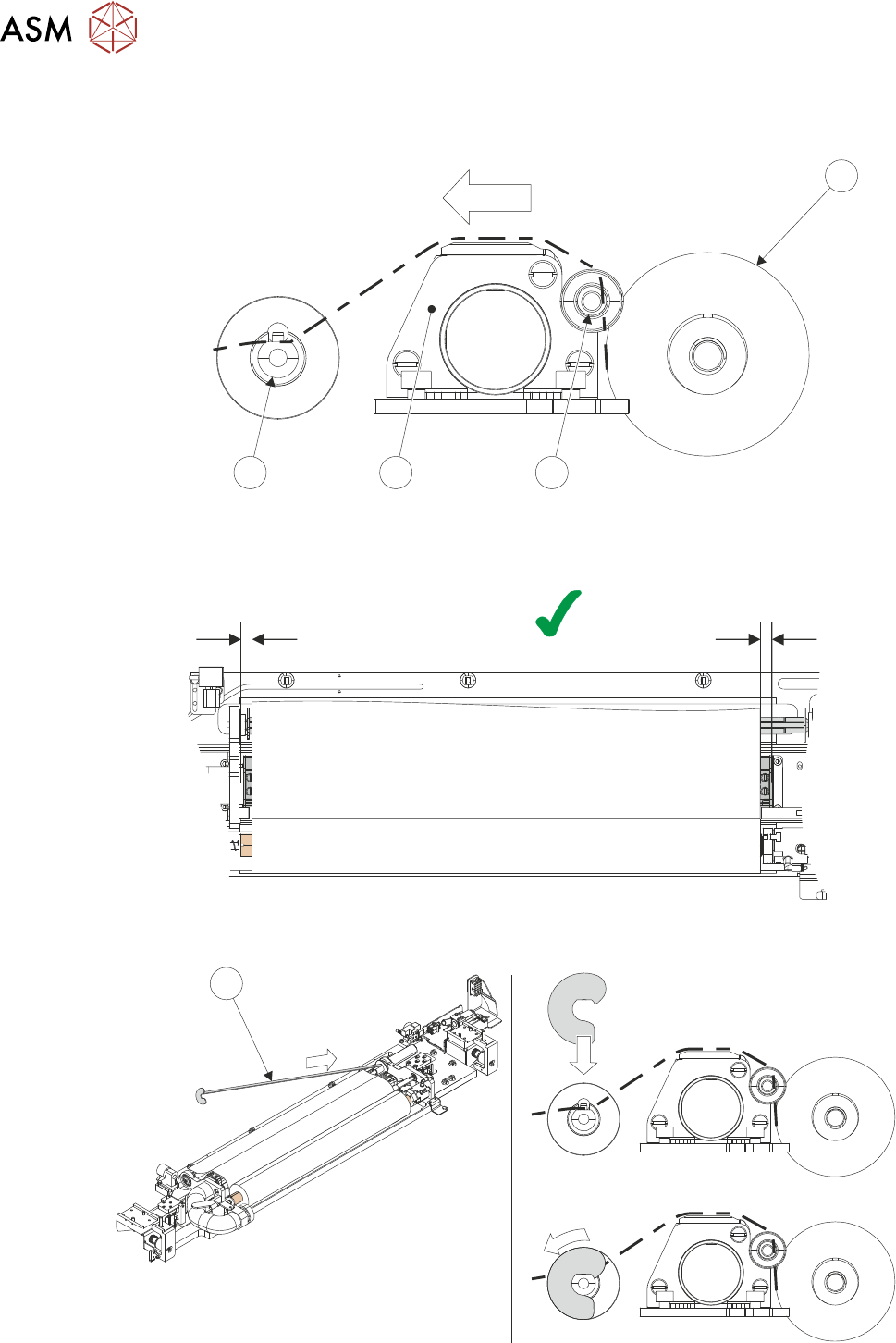

6. Feed the fabric from the fabric roll over the usage reel (6), plenum chamber (7) and across the
top of fabric take-up roller (8) - fabric should run 10mm past fabric take-up roller.
5
68 7
7. Ensure that the fabric is running parallel with the plenum chamber, measure distance from
each end of plenum chamber to the edge of the fabric roll.
A B
A = B
8. Insert the right-hand end of the fabric clamping spindle (9) into the paper motor drive.
9
