3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 37
16. Ensure the USC assembly is in the home position, and the USC magnets contact the home
magnets.

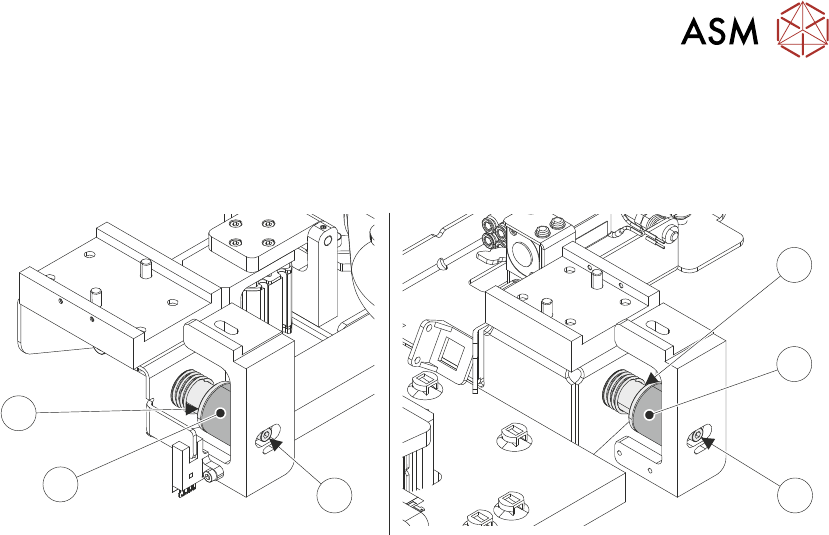

17. Loosen and adjust the home magnets M4 retaining screws (5) to align the faces of the mag-
nets (3)/(4) in the X plane, for the left and right magnet assemblies.
3
3
55
4
4
18. Close the printhead front cover.
19. Press System button on printer cover.
20. Use Next or Previous to highlight Toggle Screen Cleaner Home Clamp.
21. Select Run Diagnost.
Toggle Screen Cleaner Home Clamp to ON.
22. Open the printhead front cover.
23. With the magnets holding the USC assembly in place, fully tighten the 8 Durlok screws (4 per
end) to 21Nm using a torque wrench.
24. Close the printhead front cover.
25. Press System button on printer cover.
26. Select Run Diagnost.
Toggle Screen Cleaner Home Clamp to OFF.
27. Open the printhead front cover.
28. Move the USC assembly away from the home position, and then return, ensuring the magnets
engage/align fully and simultaneously fully.
If adjustment is required, loosen the Durlok screws and repeat Steps 14 to 28.
29. Manually move the camera beam forwards to the USC assembly.
The right-hand camera magnet (6) should make contact with the plate magnet catch (9) be-
fore the left-hand camera magnet (7) contacts the board stop mounted pickup bracket (8).
NOTE
Due to the spring (10) on the cleaner attached sensor, the camera beam must be held sta-
tionary as the cleaner is moved to it.
3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
38 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020
9
8
7
6
10

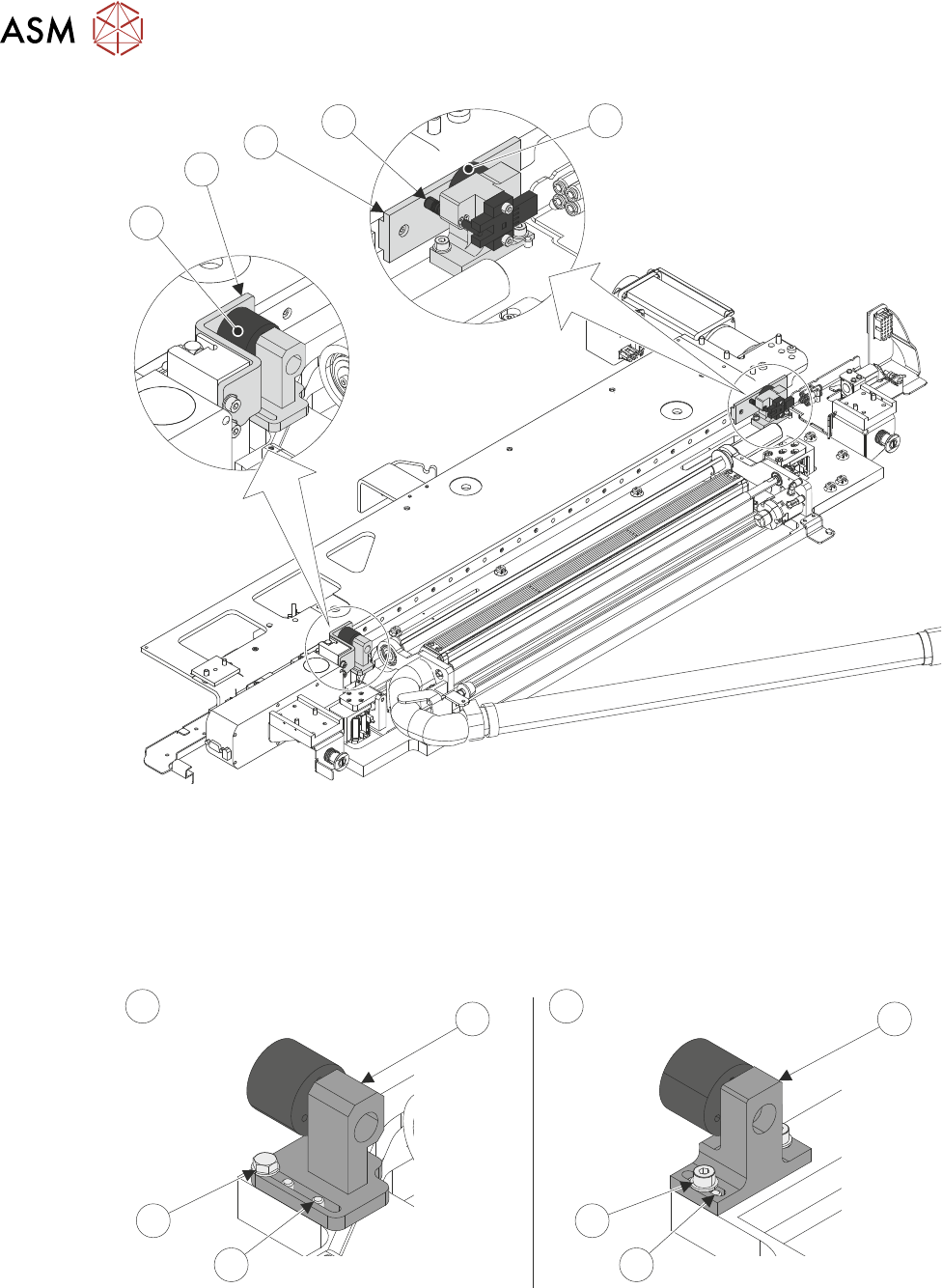

30. The left-hand camera magnet bracket (11)/(14) position needs to be adjusted to make contact
with the magnet catch (7).
Standard Width USC (A): loosen the two bracket securing bolts (13) using a spanner. Re-
position the magnet bracket (11) so the magnet makes contact with the magnet catch.
Long Board (620mm) USC (B): loosen the two bracket securing screws (16). Re-position the
magnet bracket (14) so the magnet makes contact with the magnet catch.
11 14
12
15
13 16
A B
31. Fully lock off the left-hand magnet bracket fasteners (13)/(16).
3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 39
3.8.3 Under Stencil Cleaner Height
To set the under stencil cleaner height, complete the following procedure:
NOTE
Prior to starting this procedure, ensure that there is access to the cleaner setting jig kit
(03226762-01).
1. In the machine software, select Setup Product.
2. Select Load Product.
3. Select 265test1.
4. Select Load.
5. Select Back.
6. Check the Board Width parameter:
If Board Width is set to 250.0mm, go to Step 10.
If Board Width is not set to 250.mm, continue at next Step.
7. Select Board Width parameter.
8. Adjust width of board to 250.mm.
9. Select Accept.
10. Select Back.
11. Select Maintenance.
12. Select Diagnostics.
13. Use Next or Previous to highlight Print Carriage.
14. Select Select Module.
15. Use Next or Previous to highlight Drive Carriage To Rear Position.
16. Select Run Diagnost.
17. Select Exit.
18. Use Next or Previous to highlight Rail System.
19. Select Select Module.
20. Use Next or Previous to highlight Drive Rail To Board Width.
21. Select Run Diagnost.
22. Select Exit.
23. Use Next or Previous to highlight Rising Table.
24. Select Select Module.
25. Use Next or Previous to highlight Raise Table To Vision Height.
26. Select Run Diagnost.
27. Open the front printhead cover.
28. At the left hand home magnet, disconnect the home sensor (8SE10).
