3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
42 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020
33. Using a 4mm Allen key and two M5 cap head screws (10), install a setting jig block (11) at the
left-hand end (12) of the USC assembly.
NOTE
The setting blocks (11) have extra holes in the top to make tightening the lower retaining
screws (6) easier.
9
12
11
10
34. Repeat Step 33 for the right-hand end (9) of the USC assembly.
35. Using a 4mm Allen key and two M5 cap head screws (15), install a setting jig plate (13) onto
the right-hand setting jig block. Ensure the jig plate datum mark (14) is on the underside.
13
14
15
3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 43
36. Repeat Step 35 for the left-hand setting jig block. Use the inner set of holes (16) for the M5
cap head screws (15).
15
16
37. Move USC assembly (17) over the transport rails, ensuring that the base of the cleaner is
resting on the setting jig rail red adjustment screws (18).
18
17
18
38. Close the printhead cover.
39. Select the System button.
40. Select Exit.
41. Use Next or Previous to highlight Screen Cleaner.
42. Select Select Module.
43. Use Next or Previous to highlight Toggle Dry Wipe Blade.
44. Select Run Diagnost.
45. Open the front printhead cover.
3 TYPHOON UNDER STENCIL CLEANER
3.8 ADJUSTMENTS AND SETTINGS
44 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020

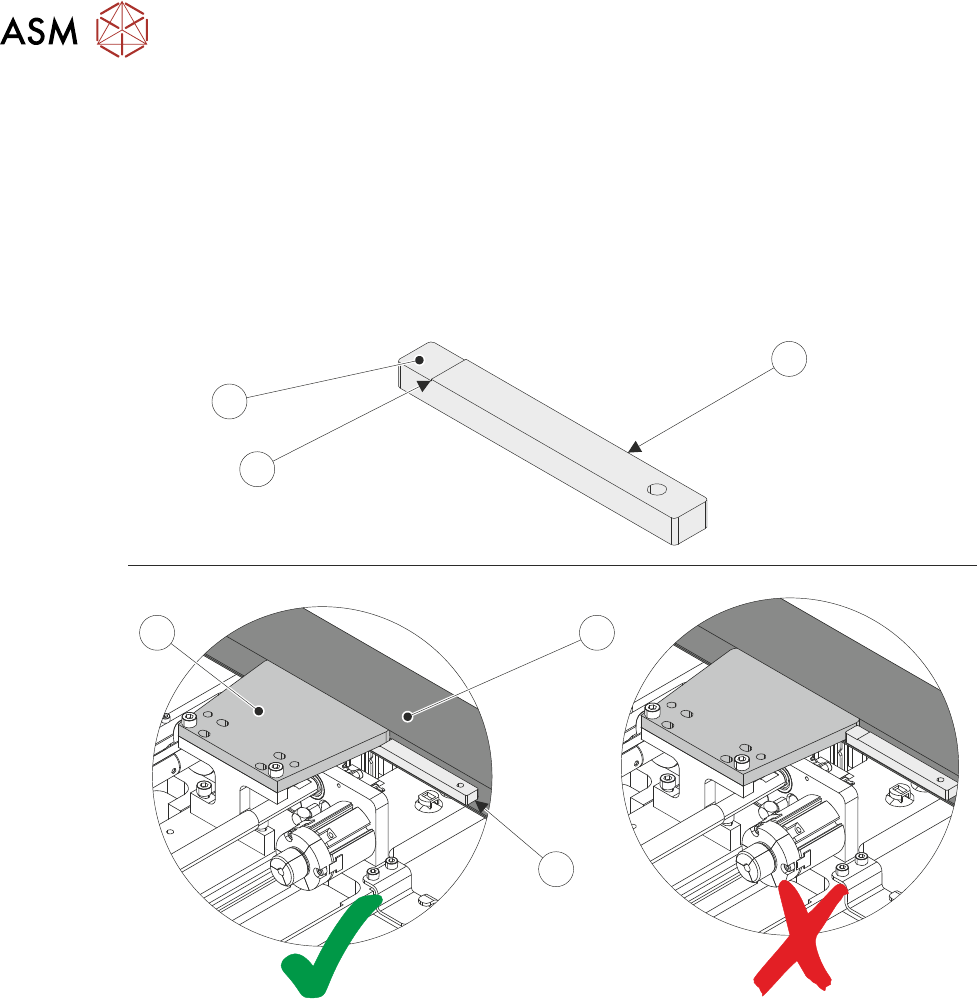

46. Using the setting jig gauge (19) as a GO/NO GO check, check the gap between the chase
stencil lip (22) and the setting jig plates (13) (both sides of each of the plates).
If the lower step (21) of the gauge fits between the underside of the setting plate and the sten-
cil support plate and the upper step edge (20) butts against the edge of the setting plate =
GO. Go to Step 48.
If the lower step (21) of the gauge doesn't fit between the underside of the setting plate (13)
and the stencil support plate (22) OR the lower step (21) of the gauge fits between the under-
side of the setting plate (13) but the upper step edge (20) does not butt against the edge of
the setting plate (13) = NO GO. Continue at next step.
19
19
21
13
22
20
47. Tighten the M8 red nylon cap head screws (18) on the setting jig rails to raise/lower the height
of the USC assembly (as required). Repeat the check at Step 46.
48. At the right hand end of the USC assembly, use a 4mm Allen key to fully tighten end bracket
fasteners (8) loosened at Step 31.
49. At the left hand end of the USC assembly, use a 4mm Allen key to fully tighten end bracket
fasteners (7) loosened at Step 32.
50. Using a 4mm Allen key, remove the four M5 cap head screws fastening the right hand jig set-
ting plate and block to the USC assembly. Remove setting plate and block.
51. Repeat Step 50 for left hand jig setting plate and block.
52. Close the printhead cover.
53. Select the System button.
54. Select Exit.
55. Open the front printhead cover.
56. Install the plenum chamber (see 3.7.2.2 "Plenum Chamber Replacement (Standard
USC)" [}33]).
57. Move the USC assembly back to home position at the front of the machine.
58. Remove the setting jig rails from the machine's transport rails.
