3 TYPHOON UNDER STENCIL CLEANER
3.11 TROUBLESHOOTING
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 49
3.11 TROUBLESHOOTING
3.11.1 Stencil Cleaner Blade Error (Optional Lift Sensors Fitted)
During clean operations, should the USC chamber get stuck in either the UP or DOWN position,
the machine goes into an error state. A cleaner blade error page will be shown on the machine HMI
monitor and the machine beacon will light to signify an error:

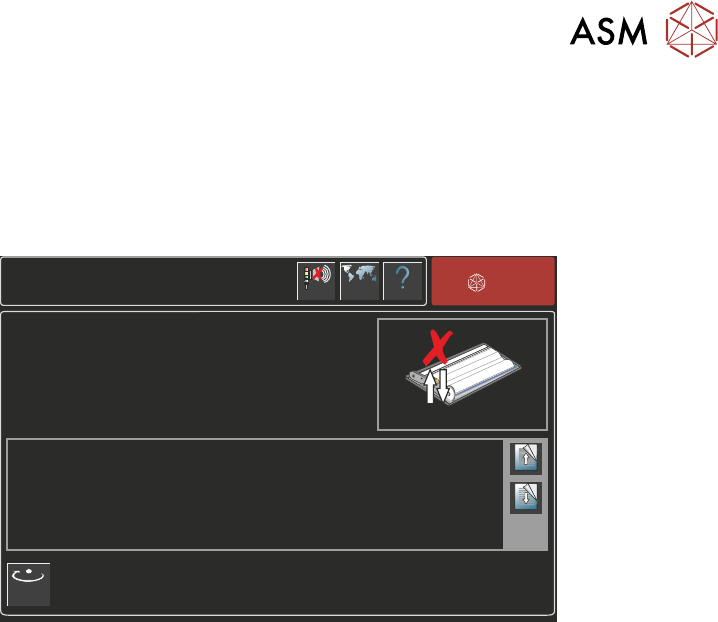

Screen Cleaner Blade Error
Help
Language
ASM
Cancel
Buzzer
Page Up
Page
Down
The cleaner blade has failed to move to the required position.
Select Retry to automatically repeat this operation.
OTHERWISE
Escalate the issue to a suitably qualified ASM trained engineer.
Retry
3.11.1.1 Recovery Process
The following procedure is a recovery process for the USC stuck error message:
1. Select Retry to perform the previous cleaner action again.
If the error has cleared, the error message is no longer displayed and the USC will carry on
with the cleaner action. Recovery complete.
If the error has not cleared after multiple retry attempts, the error message will still be dis-
played, continue at Step 2.
2. Select Windows key on the machine keyboard. Shut down Windows.
If Windows shutdown cannot be performed, continue at Step 3.
3. Switch the mains isolator switch to the OFF position.
4. Switch the mains isolator switch to the ON position.
5. When prompted, select Diagnostics.
6. Select System button.
7. Use Next or Previous to highlight Screen Cleaner.
8. Select Select Module.
9. Use Next or Previous to highlight Toggle Dry Wipe Blade.
10. Select Run Diagnost.
11. Use Next or Previous to move the menu list downwards until Cleaner Blade Down and
Cleaner Blade Up are visible.
Check the state of the Cleaner Blade Down and Cleaner Blade Up sensors.
12. Use Next or Previous to highlight Toggle Dry Wipe Blade.
13. Select Run Diagnost.
14. Check that the states of the Cleaner Blade Down and Cleaner Blade Up have changed from
Step 11.
If the states have changed (from ON and OFF to OFF and ON or vice versa), the USC cham-
ber is performing as normal. Recovery complete.
If the states have NOT changed, then the USC chamber is still stuck. Continue at Step 15.
15. Open the front cover.
3 TYPHOON UNDER STENCIL CLEANER
3.11 TROUBLESHOOTING
50 STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020
16. Remove the stencil from the chase to allow access to the USC assembly.
17. Investigate and perform necessary actions to free the USC assembly.
18. Close the front cover.
19. Press the System button on the front of the machine.
20. Repeat Steps 9 to 14.
If the error persists, escalate to an ASM support engineer.
4 TYPHOON SOFTWARE
4.1 SOFTWARE SETUP
STANDALONE MANUAL TYPHOON UNDER STENCIL CLEANER 06/2020 51
4
TYPHOON SOFTWARE
4.1 SOFTWARE SETUP
The Typhoon USC must be selected and setup in the machine software before it can be used.
From the software ready page:
1. Select Maintenance.
2. Select Machine Setup.
3. Select Options.

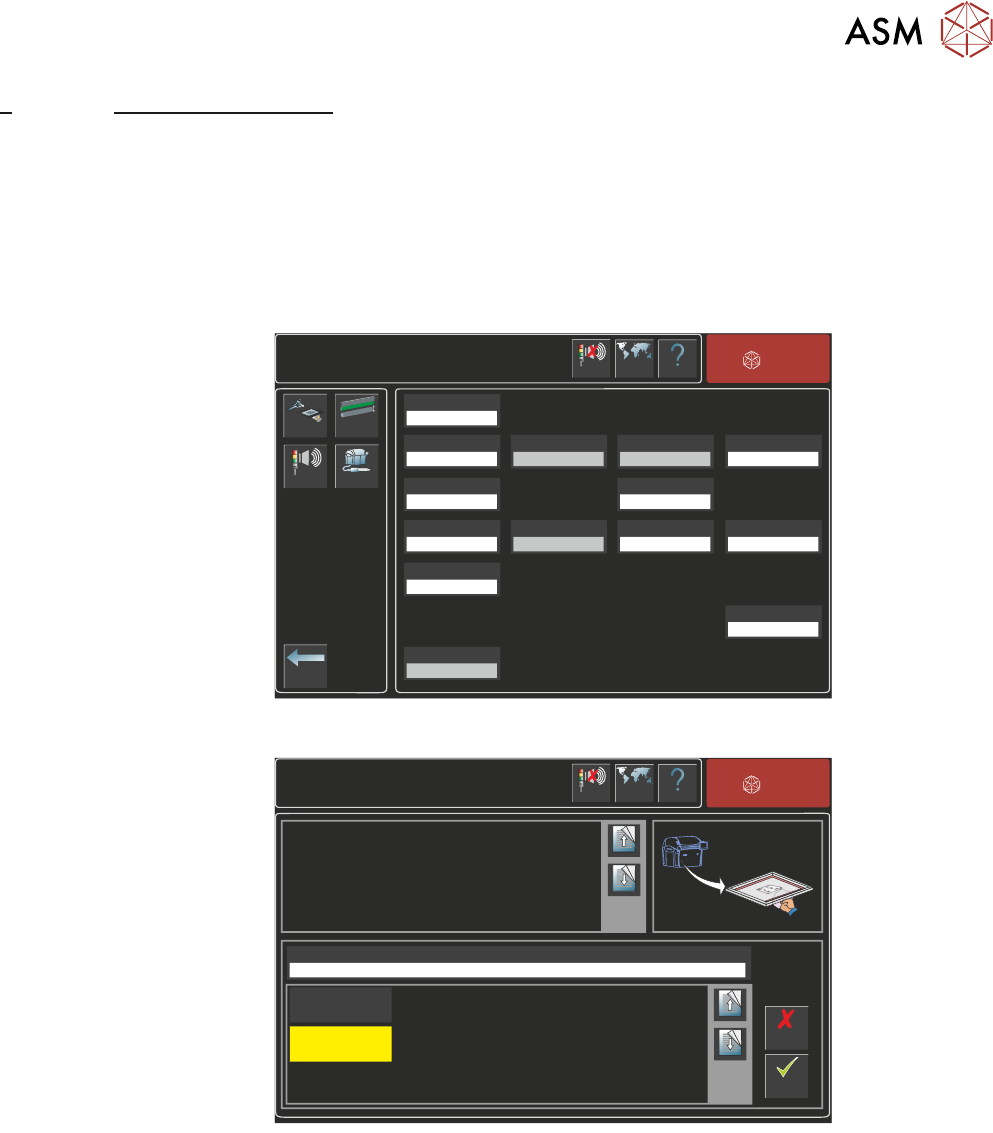

Maintenance\Machine Setup\Options
Back
Cleaner
Options
PRHM 2
Options
Beacon
Plug-ins
Help
Language
Cancel
Buzzer
Screen Cleaner
Not Fitted
Auto Roll Width
Enabled
Paste Dispenser
Enabled
Pressure Hardware
Fitted
Tooling Monitoring
0 boards
Board Quality Signal
Disabled
TTG and BTG Estimates
Disabled
Programmable Beacon
Enabled
Paste Roll Height Monitor
Hardware Options
Not Fitted
Remote Board Stop
Fitted
Paste Check Offset
20.0 mm
TTG Alert
30 minute
Roll Height Monitor
Disabled
BTG Alert
200 boards
ASM
4. Select Screen Cleaner parameter.
Maintenance\Machine Setup\Options
Accept
Cancel
Help
Language
Screen Cleaner
Fitted
ASM
Cancel
Buzzer
Sets whether an under screen cleaner is fitted to the machine.
Page Up
Page
Down
Page Up
Page
Down
Not Fitted
Fitted
5. Select Fitted.
6. Select Accept.
