chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
1-12
Tools for Maintenance

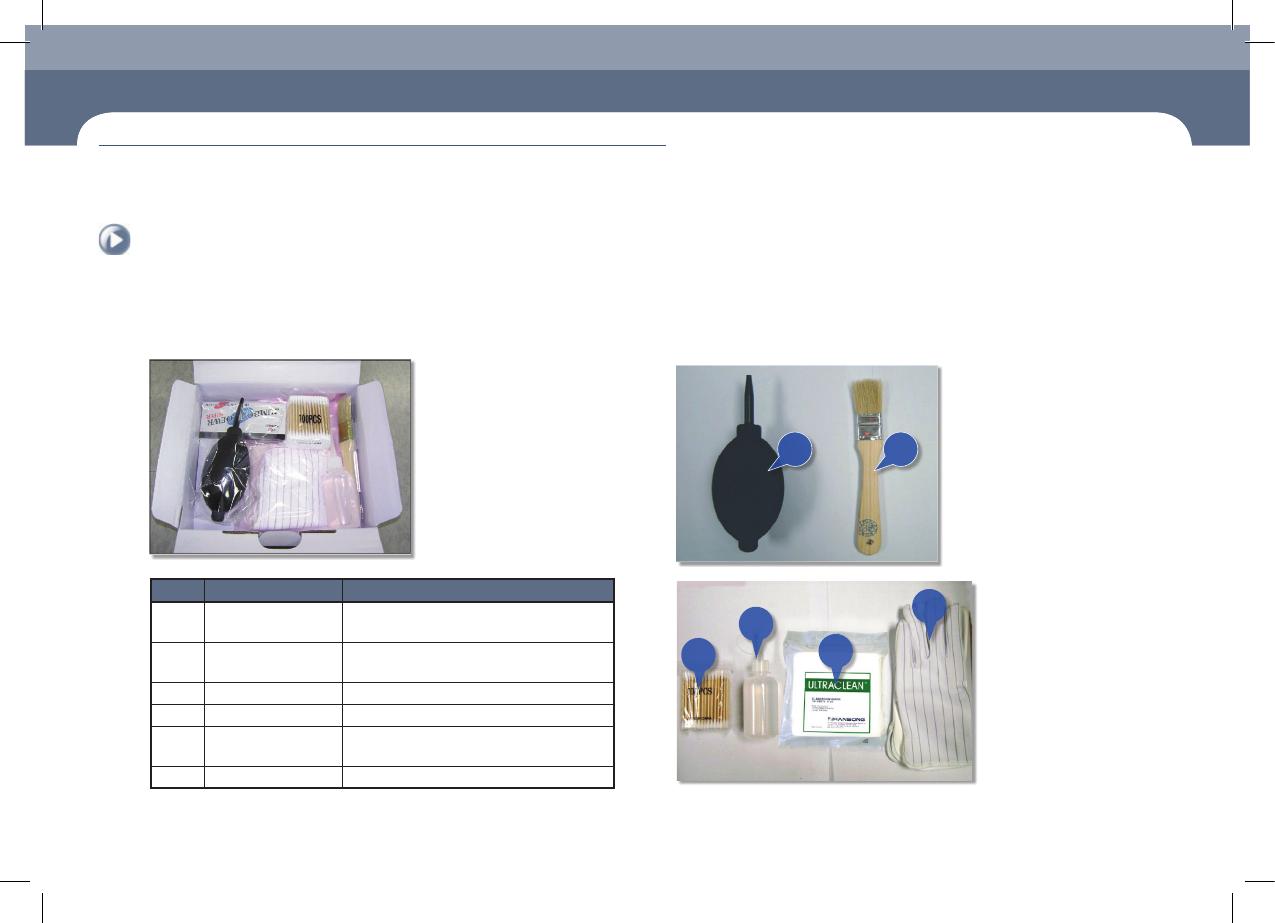

1. Cleaning Kit (Material shape: FC08-001021A)
The Cleaning Kit for the maintenance of this machine must be purchased separately.
The components of the cleaning kit and their use are as follows:
NO. NAME DESCRIPTION
1 Air Ejector
Used to blow away any dirt on the surface of
the camera lens.
2 Brush
Used to remove any chips or foreign matter
on the feeder base surface.
3 Swab Used to clean the nozzle holder.
4 alcohol Used to clean the cover glass surface.
5 Ultra-fine fiber cloth
Used to clean any foreign matter on the
mirror or lens.
6 Embossed glove Used to clean the camera or mirror.
1 2
3
4
5
6
Tools for Maintenance
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
1-13
Tools for Maintenance
Conditions for Maintenance

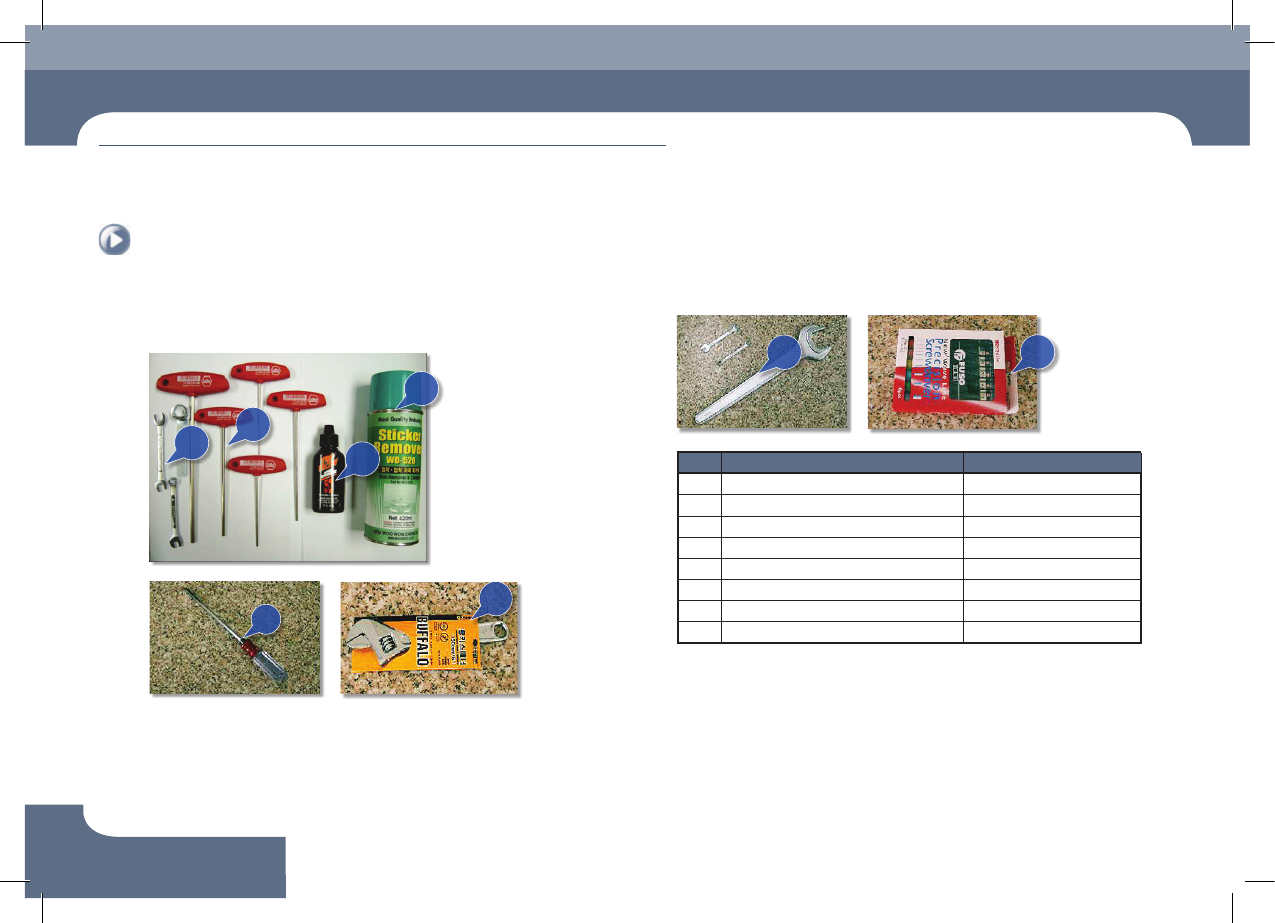

2. Other tools provided
The tools necessary for the maintenance of this machine must be purchased
separately.
1
2
3
4
5
6
7
8
NO. NAME Material number
1 Gear Wrench(7mm) TO03-900148
2 T Wrench J9099034A
3 Lubricant for nozzle CM01-900473
4 Spray CM01-900472
5 Driver TO03-900168
6 Monkey Wrench TO03-900169
7 Gear Wrench(46mm) TO03-900149
8 Precision Screwdriver Set TO03-900043
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
1-14
Tools for Maintenance
3. How to use the lubricator
Step 1.
Components of the lubricator: Lubricator-1, Connection
Tube-2, Nipple Tip-2
Step 2.
Use short nipple tip for X L/M guide lubrication.
Step 3.
Use long nipple tip for the lubrication of parts in
common use.
Step 4.
Pull the cylinder lever backward until it hangs from the
groove and then fill the lubricator with grease.
Step 5.
Assemble the lubricator nozzle and body.
