DECAN S2 Maintenance Handbook
3-4
chapter 3
Daily Inspection
Advanced Chip Shooter
Checking and cleaning the nozzle
Daily Inspection
Caution
Use only the required amount of lubricating oil. If insufficient
lubricating oil is applied, the nozzle will not operate smoothly.
If too much lubricating oil is applied, it may lump together with
foreign materials causing defective pickup.
Step 12.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-10 and perform the
operation again.
DECAN S2 Maintenance Handbook
3-5
chapter 3
Daily Inspection
Advanced Chip Shooter
Cleaning Dump Box
Prevent defective parts from filling the dump box and spilling over into the machine.
Tool for Maintenance
Cloth, Flat Brush
Measures
Step 1.
Press the 'Feeder Change' and move the front and rear X
frames to the center of the machine.
For further details, refer to "Move the front and rear X frames to the
center of the machine" on page 1-2 .
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.
Empty the dump box of defective parts.
①Lifting dump box
②Remove the dump box
③Empty the dump box of defective parts
Step 4.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-10 and perform the
operation again.
Caution
Remove the part that dropped down without being put in the
dump box.
Cleaning Dump Box
(Time required: 5min / No. D-2)
DECAN S2 Maintenance Handbook
3-6
chapter 3
Daily Inspection
Advanced Chip Shooter
Cleaning feeder and feeder base
Daily Inspection
Cleaning the feeder and feeder base can prevent feeder installation error and
defective contact of the connector.
Tool for Maintenance
Brush
Measures
Step 1.
Press the 'Feeder Change' and move the front and rear X
frames to the center of the machine.
For further details, refer to "Move the front and rear X frames to the
center of the machine" on page 1-2 .
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.

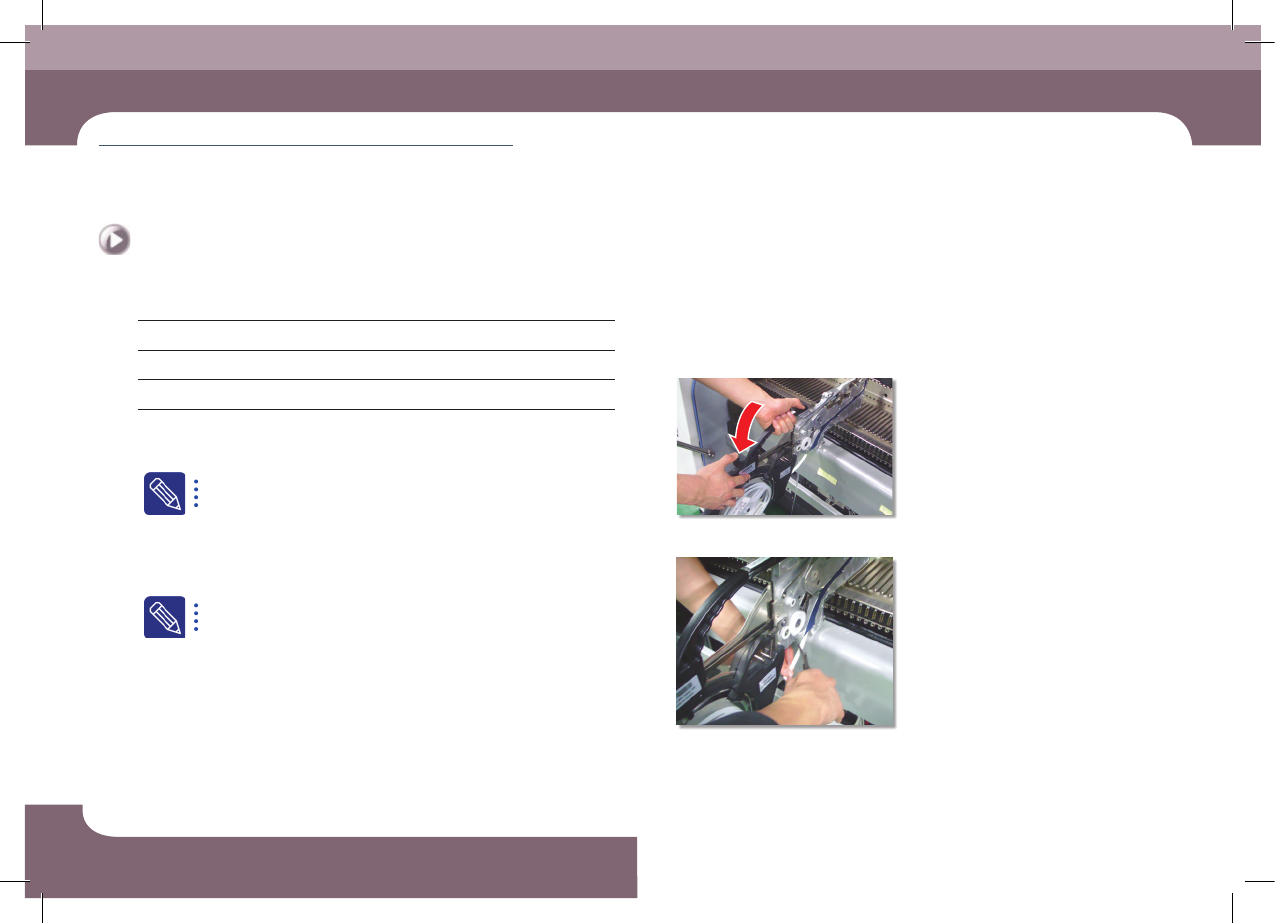

Step 3.
Remove the feeder from the feeder base.
①Pull the grip back
②Remove the cover tape
Cleaning feeder and feeder base
(Time required: 10min / No. D-3)
