DECAN S2 Maintenance Handbook
3-18
chapter 3
Daily Inspection
Advanced Chip Shooter
Checking and Cleaning and Fix Camera Lens
Daily Inspection
Step 4.
Clean the lens using an air spray
Caution
The cover glass is fragile. Take care.
Weekly Inspection
chapter 4
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
4-1
Cleaning Head Fly Camera Lens
Tool for Maintenance
Air sprayer, alcohol, swab, wrench
Measures
Step 1.
Move the Front X Frame and Rear X Frame to both
ends by referring to "Forward movement of the front
X-frame" on page 1-3 and "Backward movement of the
rear X-frame" on page 1-7.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.

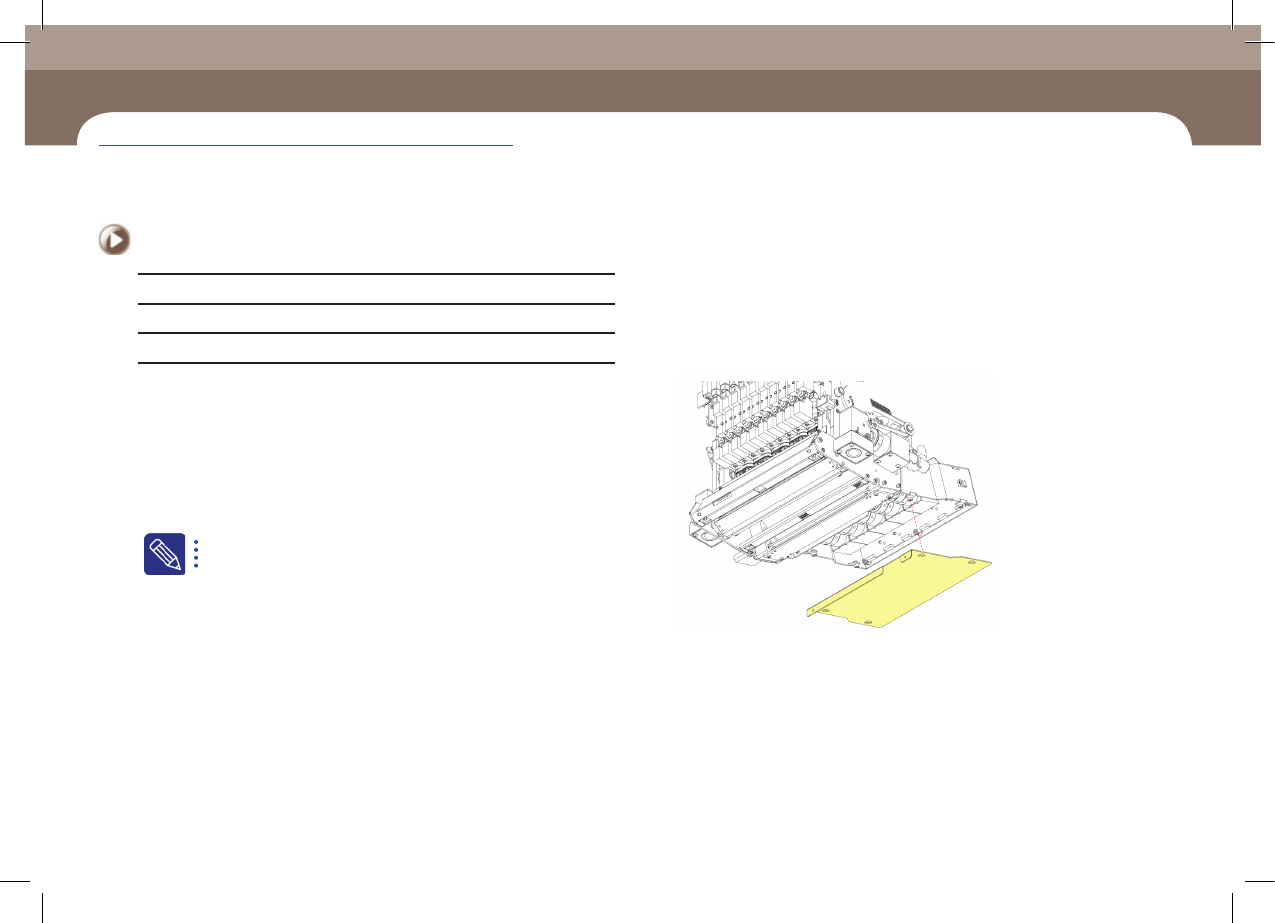

Step 3.
Unscrew the camera cover fixing screw using an M3
wrench and remove the camera cover from the head
assembly.
Cleaning Head Fly Camera Lens
chapter 4
Weekly Inspection
(Time required: 5min / No. W-1)
Weekly Inspection
chapter 4
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
4-2
Cleaning Head Fly Camera Lens
Weekly Inspection

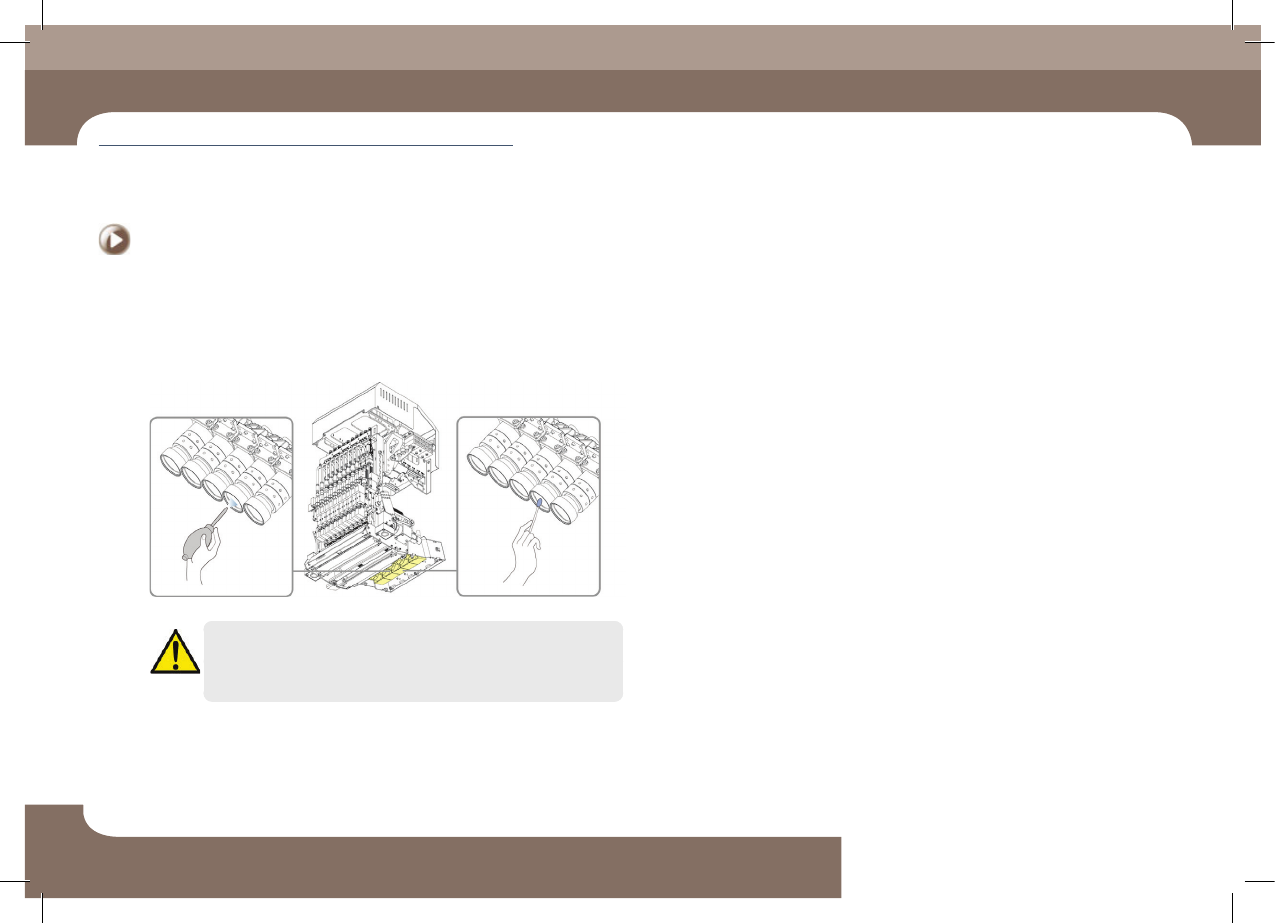

Step 4.
Remove any dust on the lens using an air spray. If
foreign materials are not removed completely, clean the
lens with a cotton swab slightly wetted with alcohol.
Caution
Cleaning the lens by exerting force may damage the surface of the
lens.
Step 5.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-10 and perform the
operation again.
