Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-4
Checking and Cleaning Conveyor Sensor / Fiducial Mark
Monthly Inspection

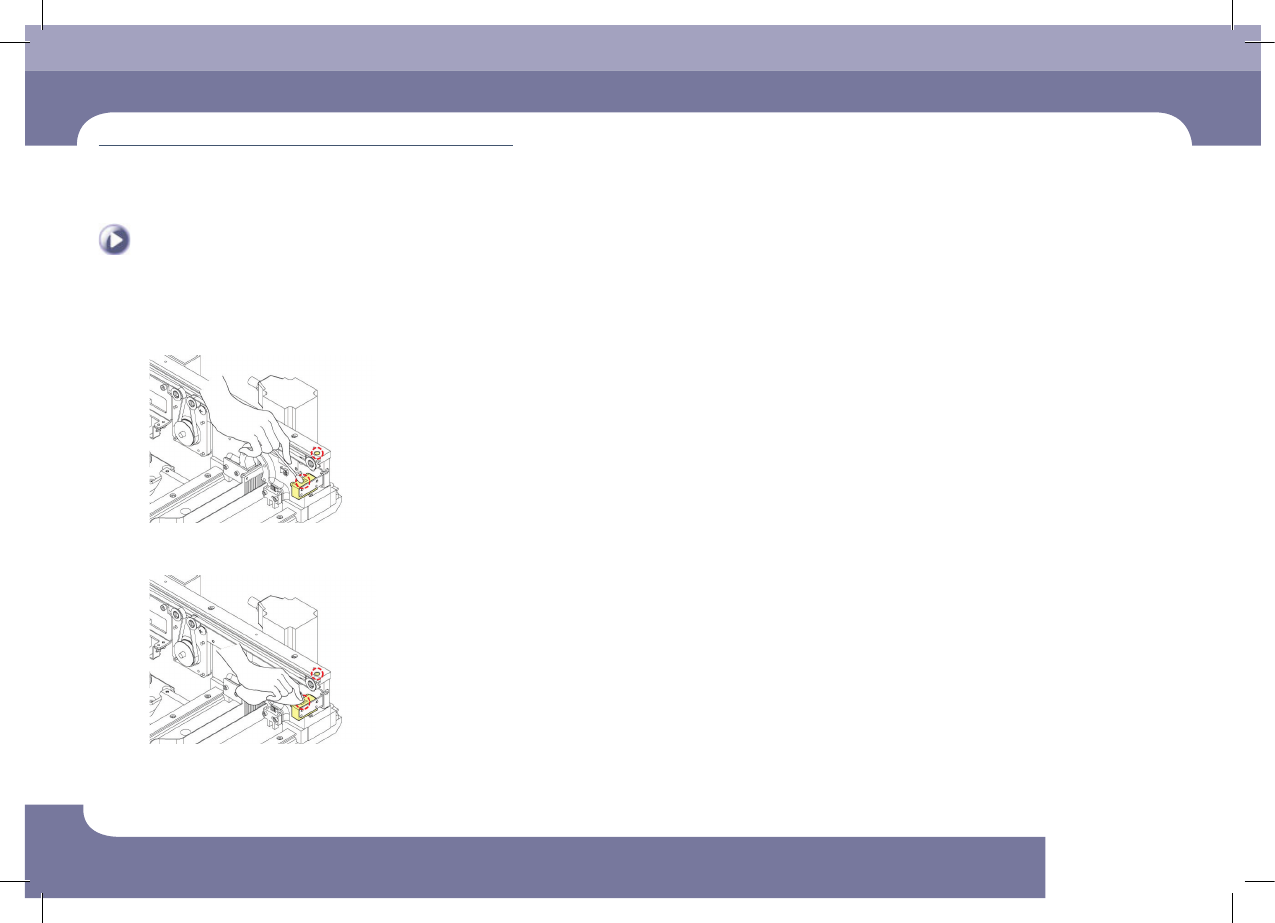

Step 4.
Clean the sensor window and fiducial mark with a swab
and an ultra-fine fiber cloth.
①Remove the dust or foreign material on the sensor window using the cotton
swab
②Remove the dust or foreign material on the sensor window using the clean
cloth
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-5
Checking and Cleaning Conveyor Sensor / Fiducial Mark

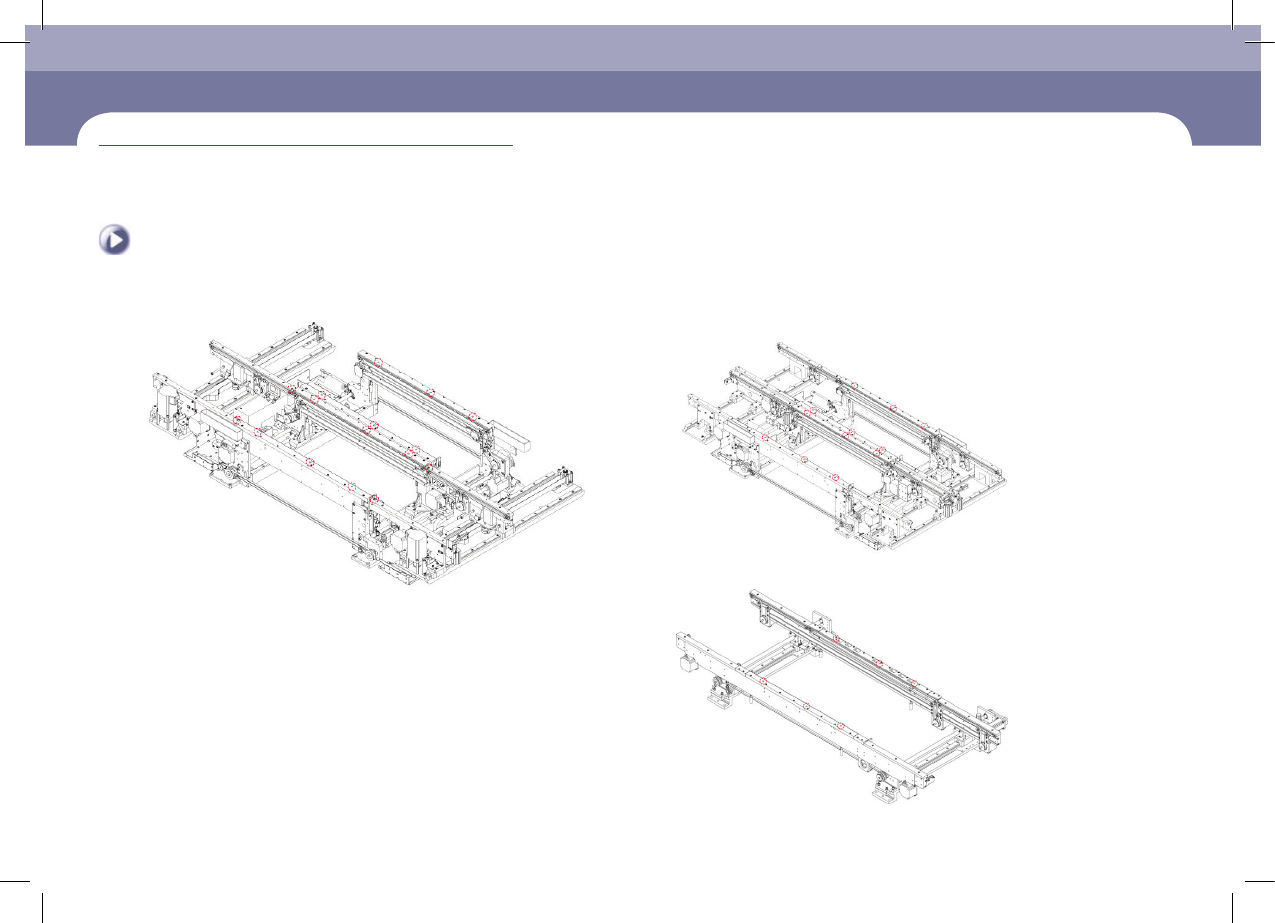

Option (Conveyor 2-2-2)
Fiducial Mark
Option (Conveyor single)
Fiducial Mark
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-6
Checking and Cleaning Right Cover Cooling Fan
Monthly Inspection
Checking and Cleaning Right Cover Cooling Fan
Tool for Maintenance
Vacuum cleaner, screwdriver(+)
Measures
Step 1.
Turn off the power supply to the machine as described
ino "How to turn off the power supply" on page 1-1.
Step 2.
Remove the cover on the left and right side of the
machine using a crosshead screwdriver.
If there is not enough space for fan removal since the machine is
configured in line with a machine by its side, clean the filter and fan
using an air gun without removing them.

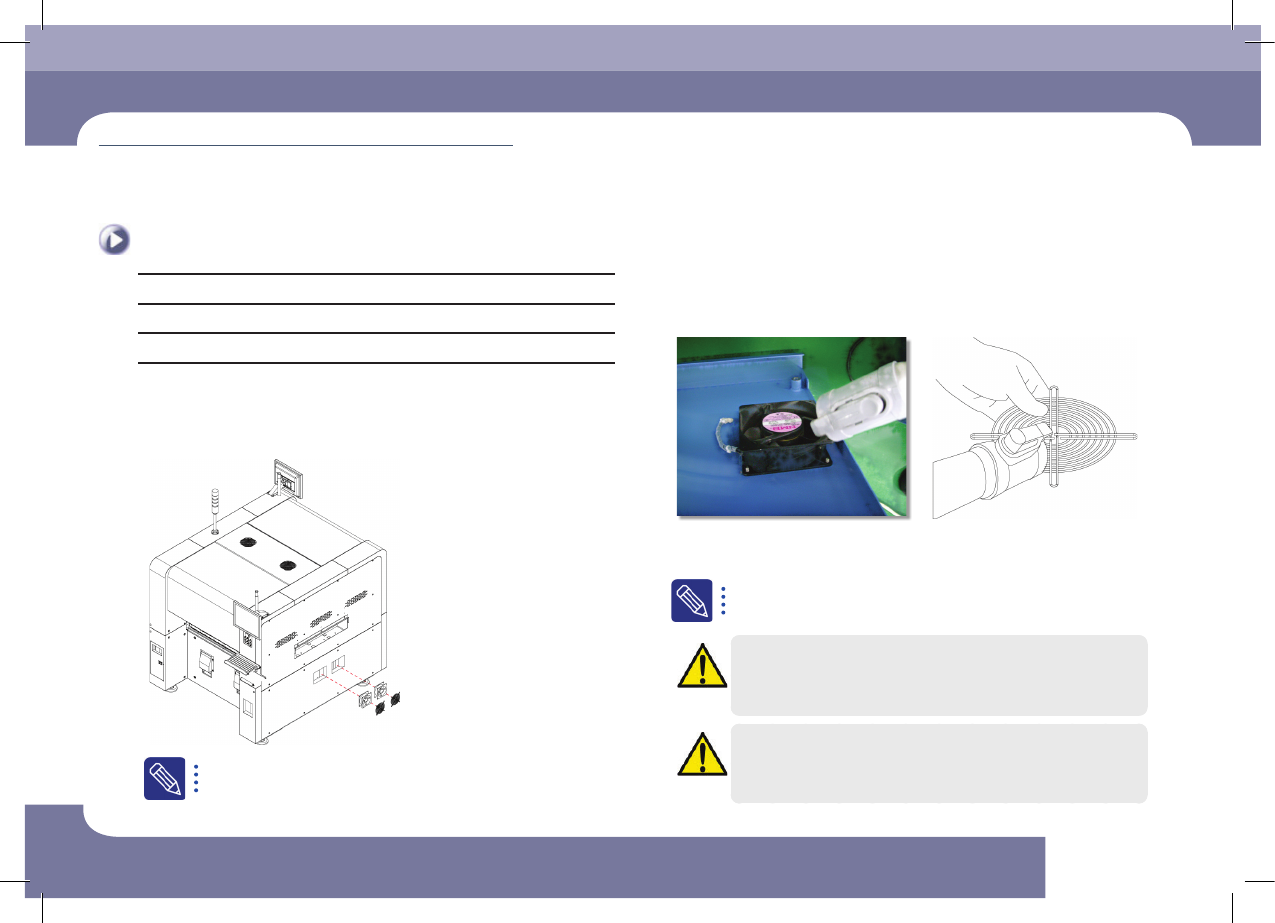

Step 3.
Clean the cooling fans using a vacuum cleaner.
Step 4.
Turn on the main switch after cleaning to check the
noise and movement of the cooling fan.
If abnormal noise and operational problem still occur, turn off the
main switch again and replace the cooling fan.
Caution
When the main switch is turned on, since the cooling fan operates,
user's hand may get injured. Careless touching of the cable, etc.
may cause electric shock. Therefore, special care is need.
Caution
The cooling fan replaement work accomanies a danger.
Therefore, contact out C/S company (STS) or local agent.
(Time required: 10min / No. M-3)
